Wireless 7 Inch TFT LCD Display with Forks Pointing Laser Camera Forklift Camera for Cold Storage
SVS-M12084FHDHV-C28158ILHV-1080P
Quantity
Wireless 7 Inch TFT LCD Display with Forks Pointing Laser Camera Forklift Camera for Cold Storage
| SVS-M12084FHDHV: | |||
| 1） | Adopt 24bit encryption pair code communication technology to enhance the confidentiality of audio and video signal transmission. | ||
| 2） | Support 4-channel simultaneous recording and video replay. | ||
| 3） | Quad display mode,Dual display mode, auto-scan mode, and single display mode available. | ||
| 4） | Storage capability of SD CARD: 256G, Built-in heater External exhaust valve. | ||
| SVS-C28158ILHV-1080P: | |||
| 1） | 1/2.9"CMOS | ||
| 2） | Support IP69K Waterproof, Built-in heater External exhaust valve. | ||
| 3） | Nightvision distance: approx. 15 m | ||
Specifications:
| Model | SVS-M12084FHDHV | Model | SVS-C28158ILHV-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 450 cd/m² | Sensing Area | 2.8um x2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 0.672916667 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | Yes |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | AGC | Auto |
| Decompression Form | H.264 | S/N Ratio | Better than 48 dB |
| Emitting Frequency | 17 dBm | Communication protocol | P-WIFI |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Current Consumption | Max. 400 mA/12V |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 2.8mm |
| Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 120° |
| Waterproof | IP68 | Waterproof | IP69K |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. |

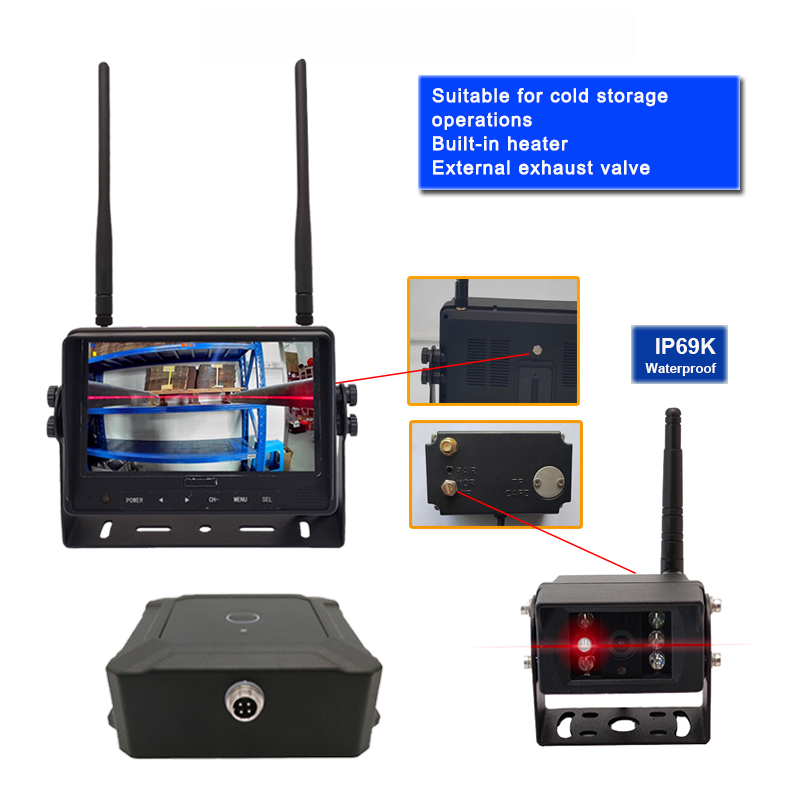

Forklift Waterproof Wireless Camera Kit with Built-in heater External exhaust valve:

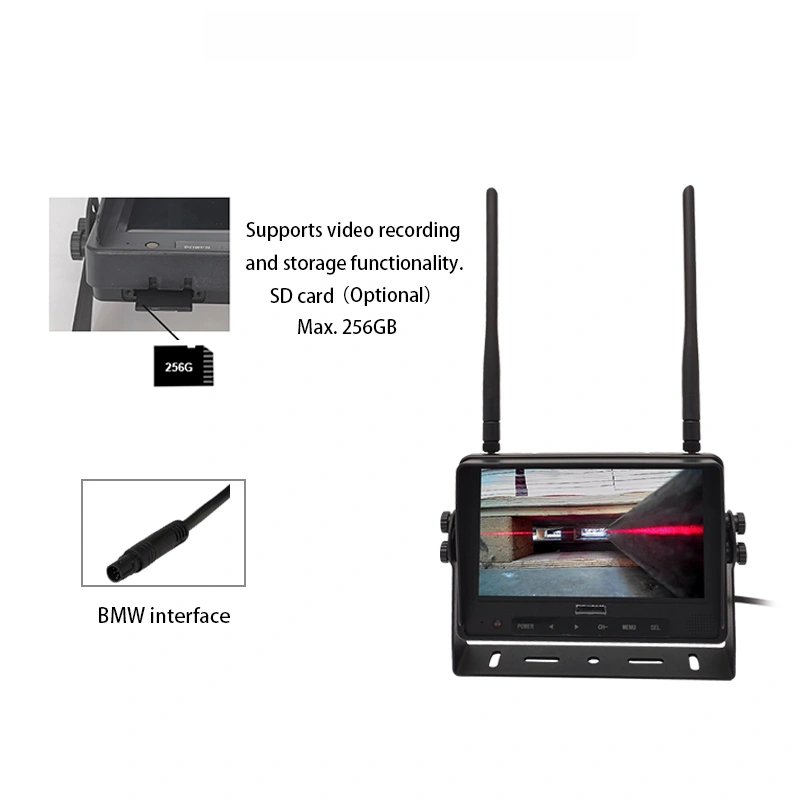

7 inch ahd monitor with Built-in heater External exhaust valve:

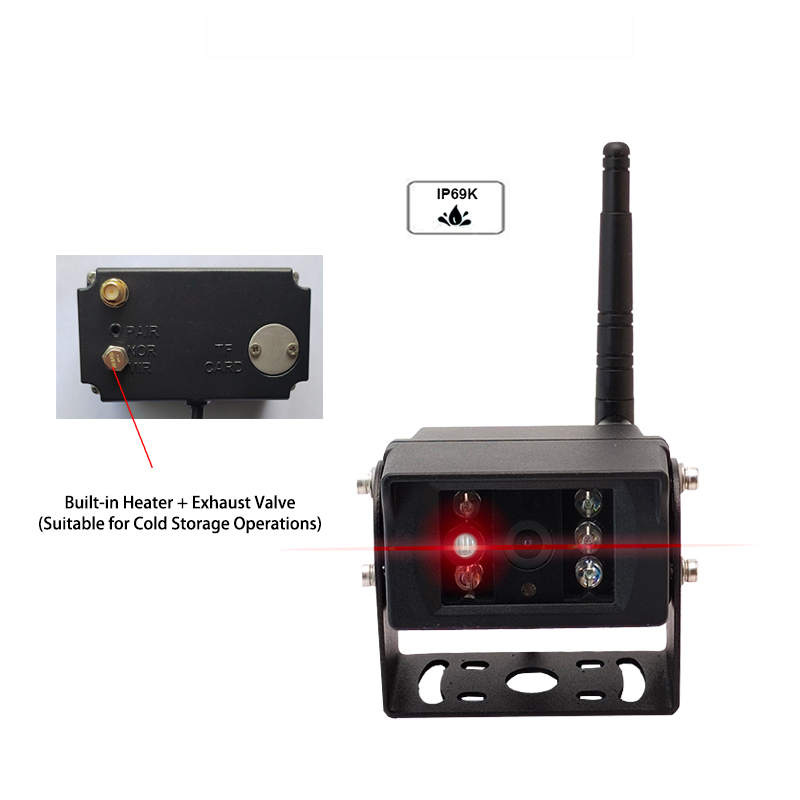

Forks Pointing Laser Camera with Built-in heater External exhaust valve:

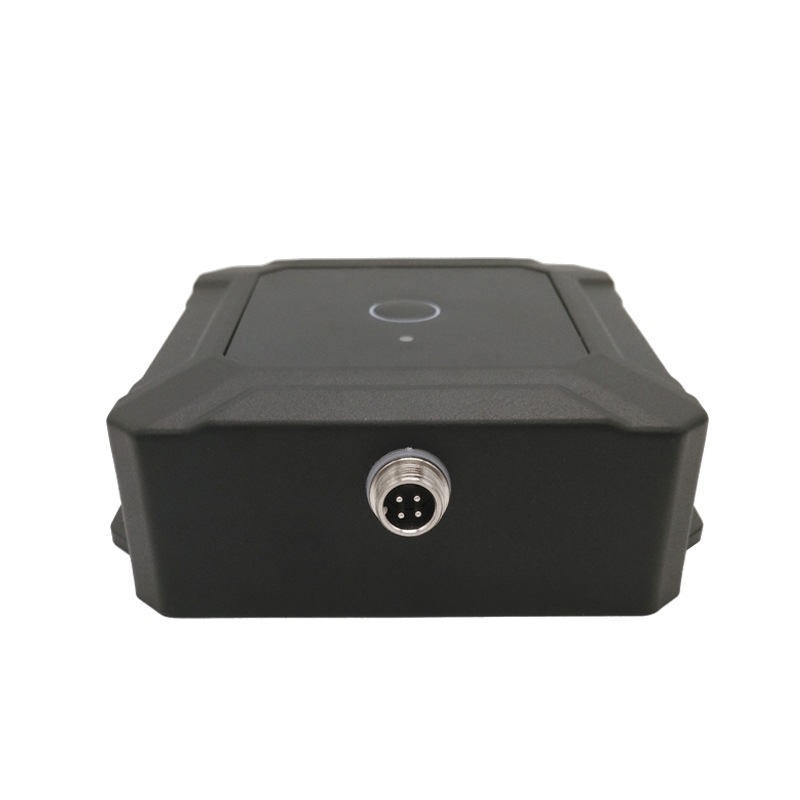

Battery with Magnet Powered Wireless Backup Camera :
