Wireless Forklift Camera with Green Laser Line Positioning 7 Inch Wireless AHD Monitor Forklift Wireless AHD 1080P Camera
SVS-M12074FHD-C28819ILG-1080P-B0137B
Wireless Forklift Camera with Green Laser Line Positioning Built-in high-brightness green one-word laser, clearly marks fork horizontal reference and insertion height. Visible in strong light, dark warehouse and narrow aisle, realizing fast and accurate positioning.
1. 1080P full HD image sensor, 2.4GHz wireless transmission, long transmission distance, anti-interference. With night vision.
2. Camera IP68 waterproof, dustproof and shockproof metal housing, adapt to warehouse, outdoor working environments.
3. Easy Installation. No-wiring design, strong magnetic installation bracket, no need for drilling. Wide-voltage DC12-48V power supply, compatible with most forklift models.
4. 7 inch IPS high-definition display for cab mounting, high contrast, clear viewing angle, support real-time video display.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
1. 1080P full HD image sensor, 2.4GHz wireless transmission, long transmission distance, anti-interference. With night vision.
2. Camera IP68 waterproof, dustproof and shockproof metal housing, adapt to warehouse, outdoor working environments.
3. Easy Installation. No-wiring design, strong magnetic installation bracket, no need for drilling. Wide-voltage DC12-48V power supply, compatible with most forklift models.
4. 7 inch IPS high-definition display for cab mounting, high contrast, clear viewing angle, support real-time video display.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
Wireless Forklift Camera with Green Laser Line Positioning 7 Inch Wireless AHD Monitor Forklift Wireless AHD 1080P Camera

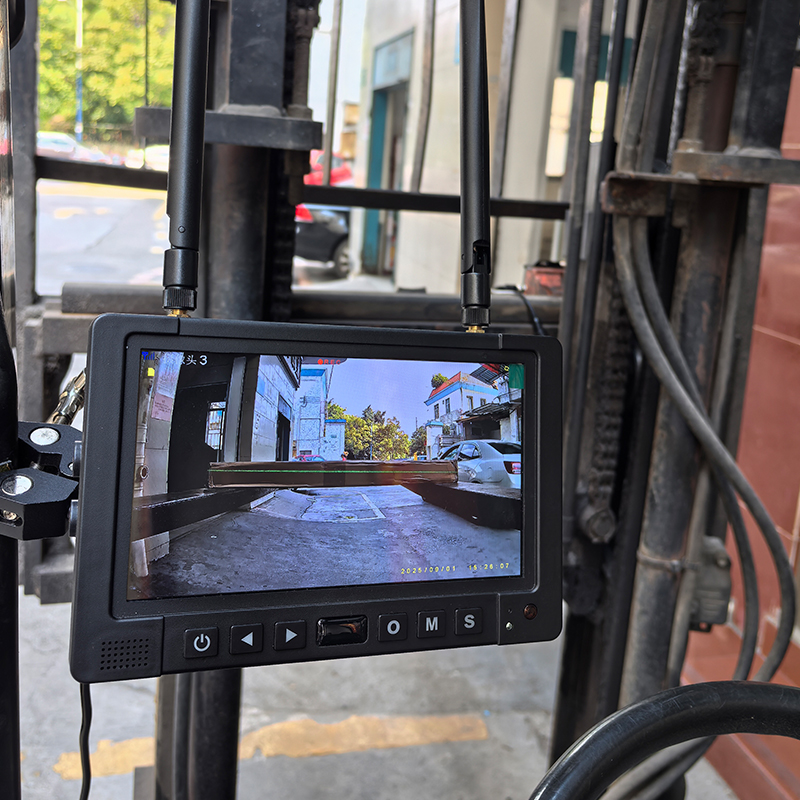

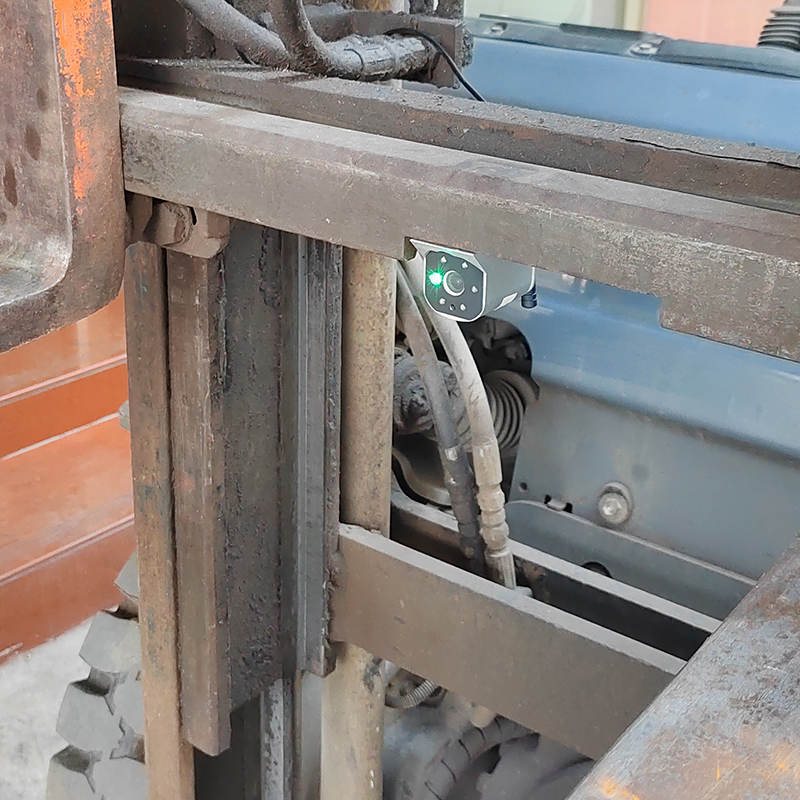

Wireless forklift camera system is equipped with high-definition monitoring and green laser line positioning functions. It effectively eliminates blind spots during forklift operation, assists drivers in accurate pallet alignment, stacking and loading/unloading, reduces collision and cargo damage risks, and greatly improves operational safety and work efficiency. Wireless connection & plug-and-play installation fit all types of electric and fuel forklifts for industrial heavy-duty scenarios.
7 Inch Wireless AHD Monitor: Wireless Forklift Camera Systems:
| SVS-M12074FHD | SVS-C28819ILG-1080P | |||
| 1 | 7 inch IPS LCD | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing, Waterproof IP68. | |
| 3 | Quad display mode, Dual display mode, auto-scan mode, and single display mode available. | 3 | support laser position function. | |
| 4 | Storage capability of TF CARD: 256G. | |||
7 Inch Wireless AHD Monitor/Wireless Forklift Camera Specification:
| Model | SVS-M12074FHD | Model | SVS-C28819ILG-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x 2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:09:00 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | No |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | Laser lamp power | <70mW |
| Decompression Form | H.264 | Laser lamp wavelength | 660nm |
| Emitting Frequency | 17 dBm | Laser lamp angle | 120° |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Communication protocol | P-WIFI |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 3.6mm |
| Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 110° |
| Waterproof | No | Waterproof | IP68 |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. | ||
| Laser Type | Green one-line laser |
Application Scenarios:
- High-level shelf storage and retrieval, high stacking operation.
- Narrow aisle warehouse, cold storage, factory interior operation.
- Container loading and unloading, truck docking.
- Reversing and blind spot monitoring for forklifts.
- Daily safety operation standard management of logistics and warehousing.

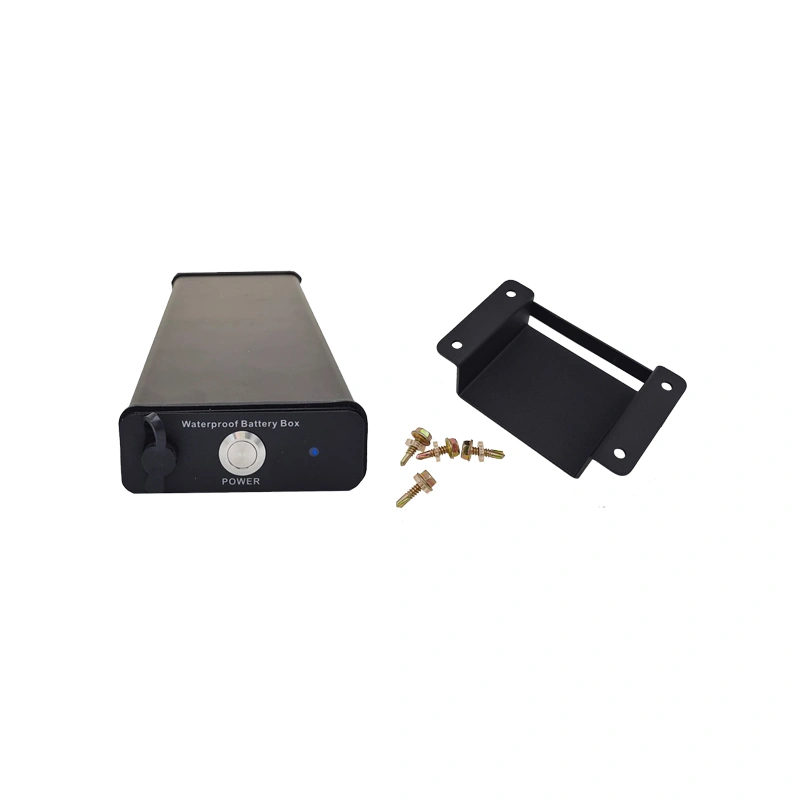

5000mah Rechargeable Battery:
| Model | SVS-B0137D1-B | |
| Nominal Voltage | DC 12V | |
| Rated Capacity | 5000mAh | |
| Overcharging Protection Voltage | 12.6V ± 0.25V | |
| Voltage | 10.5V ± 0.25V | |
| Discharging Protection | ||
| Charging Mode | Constant current | |
| Maximum | 25V | |
| Charging Voltage | ||
| Solar Charging | Yes | |
| Charge Current | 3.2A | |
| Waterproof | Waterproof IP67 | |
| Installation | Bracket (With magnet base optional) | |
| Charging Temperature | 0~45℃, 60±25%RH | |
| Discharging Temperature | -20~55℃, 60±25%RH | |
| Storage Temperature and Humidity Range | Short-term: more than a month | -20~+55℃, 60±25%RH |
| Interim: more than three months | -20~+45℃, 60±25%RH | |
| Long-term: one year or less | -5~+20℃, 60±25%RH | |

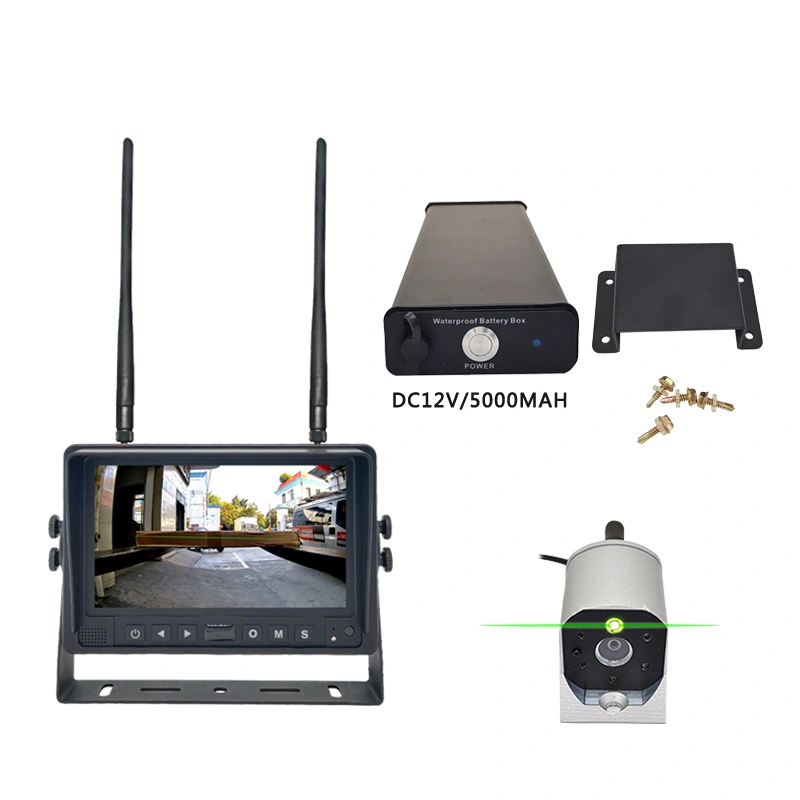

Package List:
- Wireless Forklift Camera with Green Laser × 1.
- 7-inch Wireless Display × 1.
- 5000mah rechargeable battery with bracket × 1.
- Magnetic Mount Bracket & Installation Accessories.
- Power Cord & User Manual.
