HD Quad View Waterproof Camera Forklift Monitoring System with HD Wireless Cameras
SVS-M12074FHD-C28819I-1080P-B0137B
1. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.
2. The camera is IP68 waterproof rate. Excellent waterproof level can allow camera working well outside, even in rainy or foggy days.
3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. The camera is IP68 waterproof rate. Excellent waterproof level can allow camera working well outside, even in rainy or foggy days.
3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
7 inch wireless AHD monitor Waterproof 48v wireless forklift camera systems are becoming increasingly popular in the market today. These systems are designed to provide users with a clear and reliable view of the area surrounding a forklift, ensuring safe and efficient operation.
HD Quad View Waterproof Camera Forklift Monitoring System with HD Wireless Cameras
7 Inch Wireless AHD Monitor: Wireless Forklift Camera Systems:
| SVS-M12074FHD | SVS-C28819I-1080P | |||
| 1 | 7 inch IPS LCD | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing, Waterproof IP68. | |
| 3 | Quad display mode, Dual display mode, auto-scan mode, and single display mode available. | 3 | support laser position function. | |
| 4 | Storage capability of TF CARD: 256G. | |||
7 Inch Wireless AHD Monitor/Wireless Forklift Camera Specification:
| Model | SVS-M12074FHD | Model | SVS-C28819I-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x 2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:09:00 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Waterproof | - | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | No |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | BLC | Auto |
| Decompression Form | H.264 | Communication protocol | P-WIFI |
| Emitting Frequency | 17 dBm | Power Supply | DC 12-48 V |
| Communication protocol | P-WIFI | Operating frequency | 2400 -2483.5 MHz |
| Modulation | FSK/GFSK | Transmitting distance | 380M |
| TF Card | Max. 256G | Transmitting speed | 12Mbps |
| Time Delay | 200ms | Decompression form | H.264 |
| System Format | PAL / NTSC | Transmit output power | 17 dBm |
| Power Supply | DC 12-48 V | Lens | f = 3.6mm |
| Power Consumption | Max. 8W | Lens Angle | 100° |
| Loudspeaker | 1.5W/8Ω | Waterproof | IP68 |
| Operating Temperature | -20~+70ºC, RH 90% | Operating Temperature | -20°C~60°C, RH 90% MAX. |
| Storage Temperature | -30~+80℃, RH 90% | Storage Temperature | -30°C~80°C, RH 90% MAX. |
7 inch wireless AHD monitor is included in these systems, providing users with a clear and detailed view of the surroundings.The monitor is designed to work in no lighting conditions, ensuring that the user has a clear view of the forklift's surroundings at all times.
Product Detail:

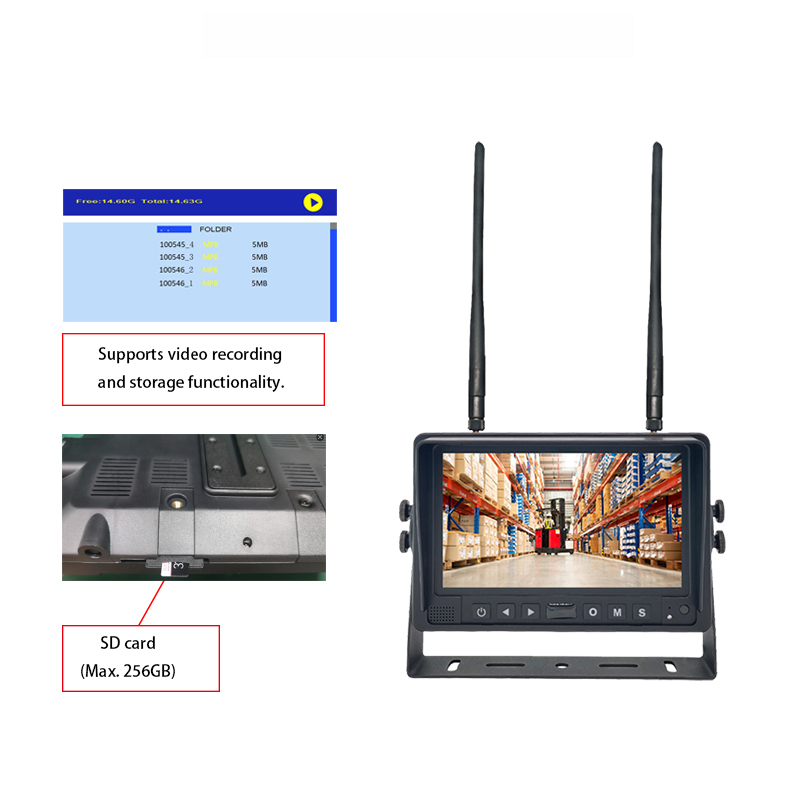

7 Inch Wireless AHD Monitor
7 inch IPS LCD.
Power Supply: DC 12-48 V.
Waterproof Rate: IP68.
Support 4-channel simultaneous recording and video replay.
Support storage capability of SD CARD: 256G.
Wireless forklift camera detail:
Wireless forklift camera in these systems are specifically designed to withstand the harsh environment of a forklift. They are made with waterproof materials that protect them against moisture, dust, and other contaminants. At the same time, the cameras are designed to capture high-quality images that provide precise details of the surroundings. The wireless aspect of these systems makes them even more convenient to use. The cameras are connected to the monitor through a wireless signal, eliminating the need for cables and wires. This also means that the system can be installed quickly and easily, without the need for complicated wiring.
Waterproof, shockproof and anti-loose design.
IP68 waterproof design for Forklift, shell full sealing process, Aluminum alloy material/
laser positioning/no wiring/compact appearance/ easy installation/stable anti-interference
signal transmission.
Overall, these 7 inch wireless AHD monitor Waterproof 48v wireless forklift camera systems are a must-have for anyone who operates a forklift. They provide a clear and reliable view of the surroundings, ensuring safe and efficient operation of the forklift.
