9 inch Monitor Wireless Forklift Camera Systems 12V Rechargeable Battery Powed with Wireless AHD Camera
SVS-M12094FHD-C28819IL-1080P
minimum order
5 sets
Country of Origin
China, Guangdong
Quantity
9 inch Monitor Wireless Forklift Camera Systems 12V Rechargeable Battery Powed with Wireless AHD Camera
Wireless Forklift Camera Systems Features:
9 inch Monitor and Forklift Camera:
| SVS-M12094FHD-TK: | |||
| 1） | Adopt 24bit encryption pair code communication technology to enhance the confidentiality of audio and video signal transmission | ||
| 2） | Support 4-channel simultaneous recording and video replay. | ||
| 3） | Quad display mode,Dual display mode, auto-scan mode, and single display mode available | ||
| 4） | Storage capability of SD CARD: 256G | ||
| SVS-C28819IL-1080P: | |||
| 1） | 1/2.9"CMOS, Support IP68 Waterproof. | ||
| 2） | Water resistant housing | ||
| 3） | Nightvision distance: approx. 1-3m | ||
9 inch Monitor Wireless Forklift Camera Systems Specifications:
| Model | SVS-M12094FHD-TK | Model | SVS-C28819IL-1080P |
| LCD size | 9" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 0.672916667 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | No |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | Laser lamp power | <70mW |
| Decompression Form | H.264 | Laser lamp wavelength | 660nm |
| Emitting Frequency | 17 dBm | Laser lamp angle | 120° |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Communication protocol | P-WIFI |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Waterproof | No | Lens | f = 3.6mm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens Angle | 110° |
| Storage Temperature | -30~+80℃, RH 90% | Waterproof | IP68 |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. |

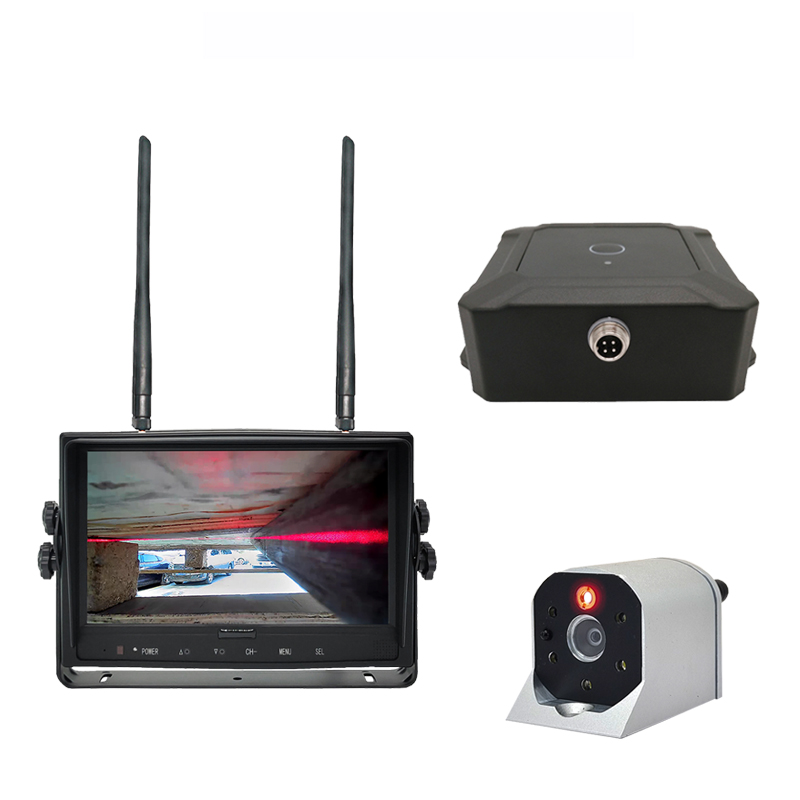

Wireless Forklift Camera Systems：

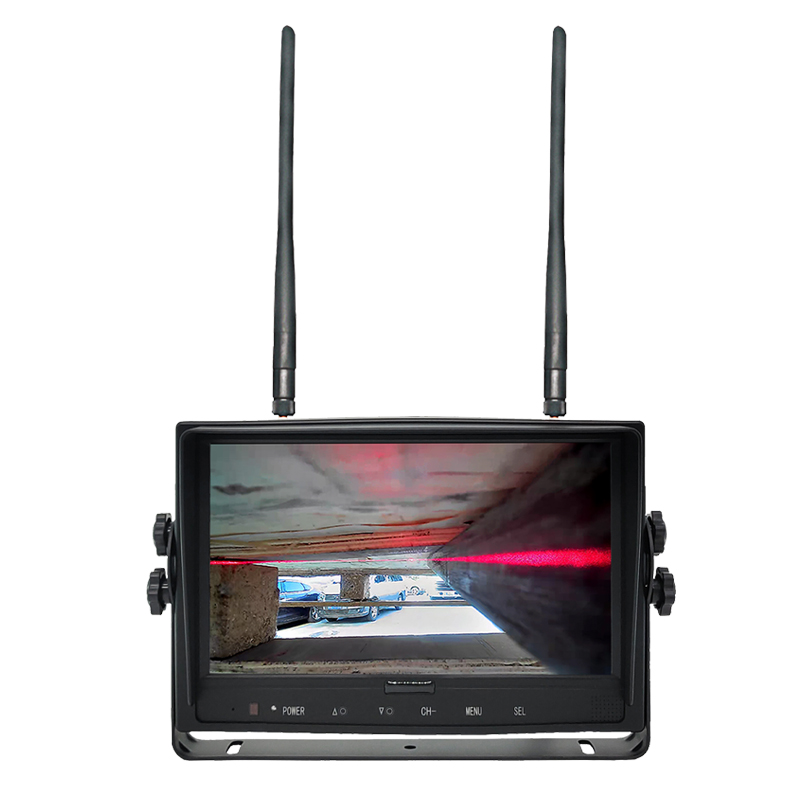

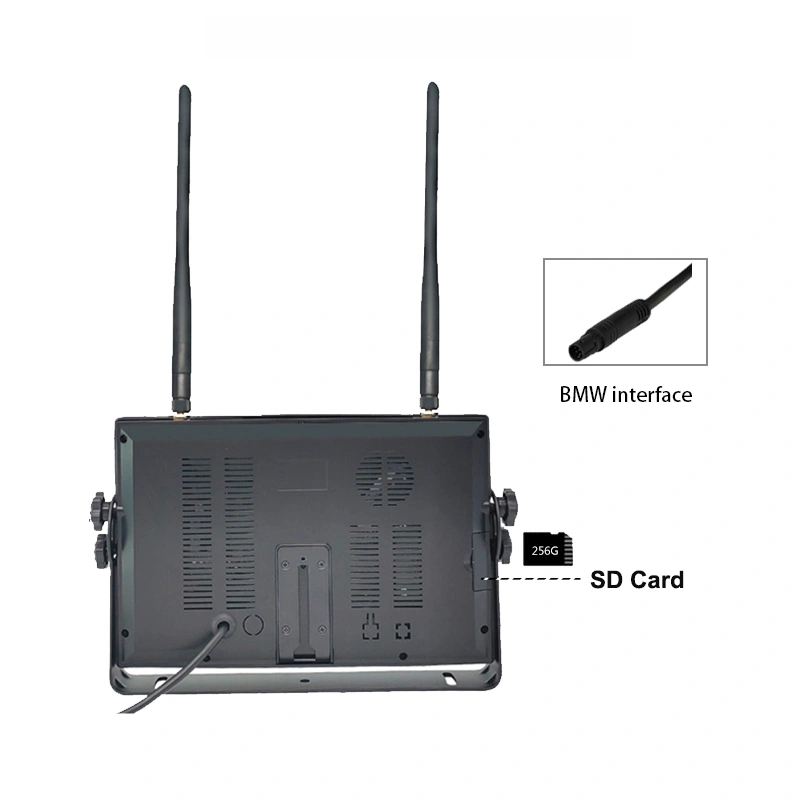

9 inch Monitor:

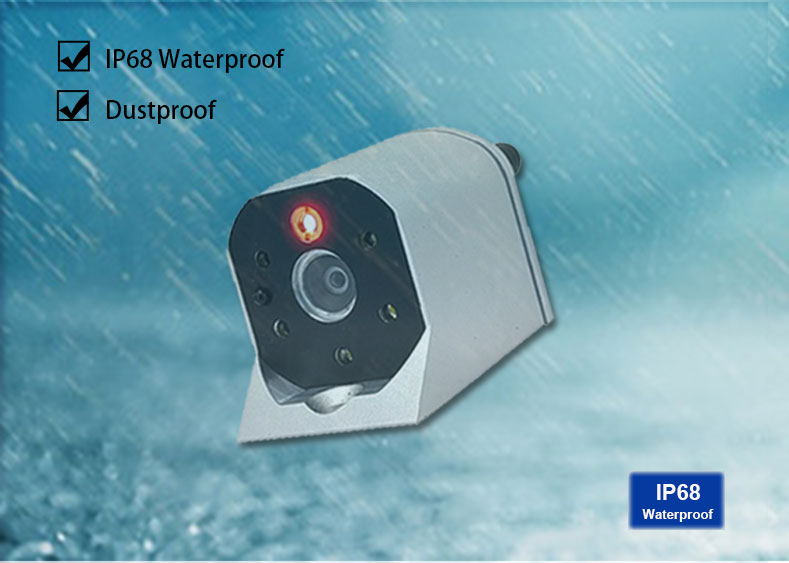

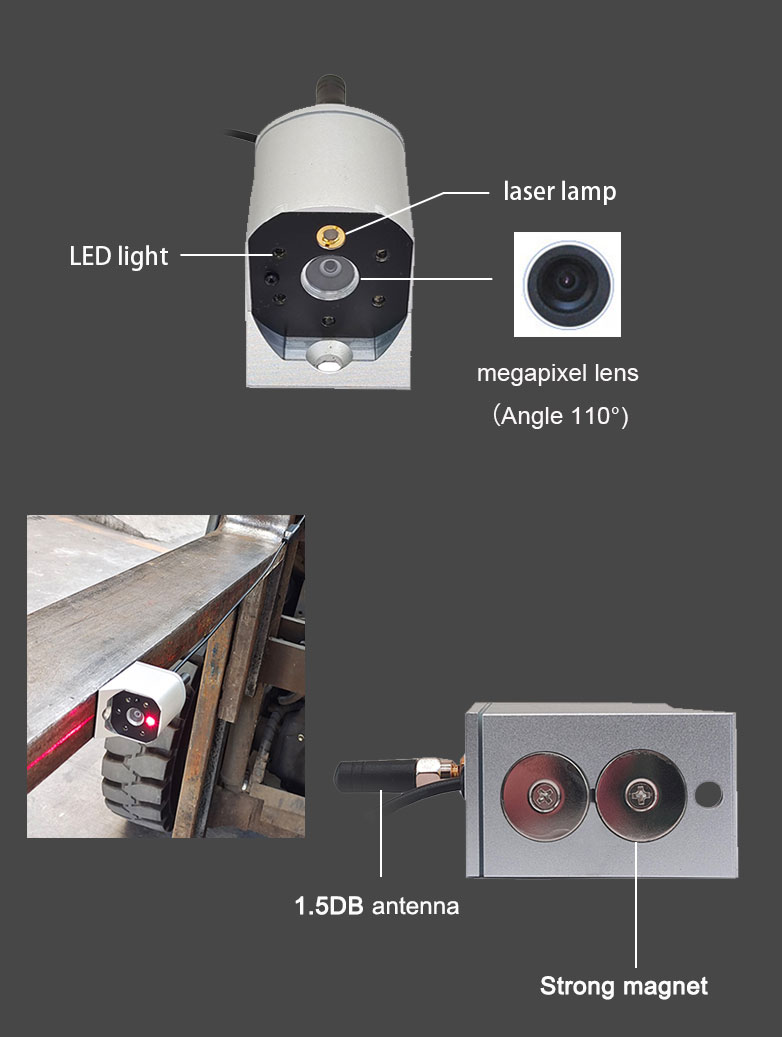

Waterproof IP68 wireless forklift laser camera with strong magnet :

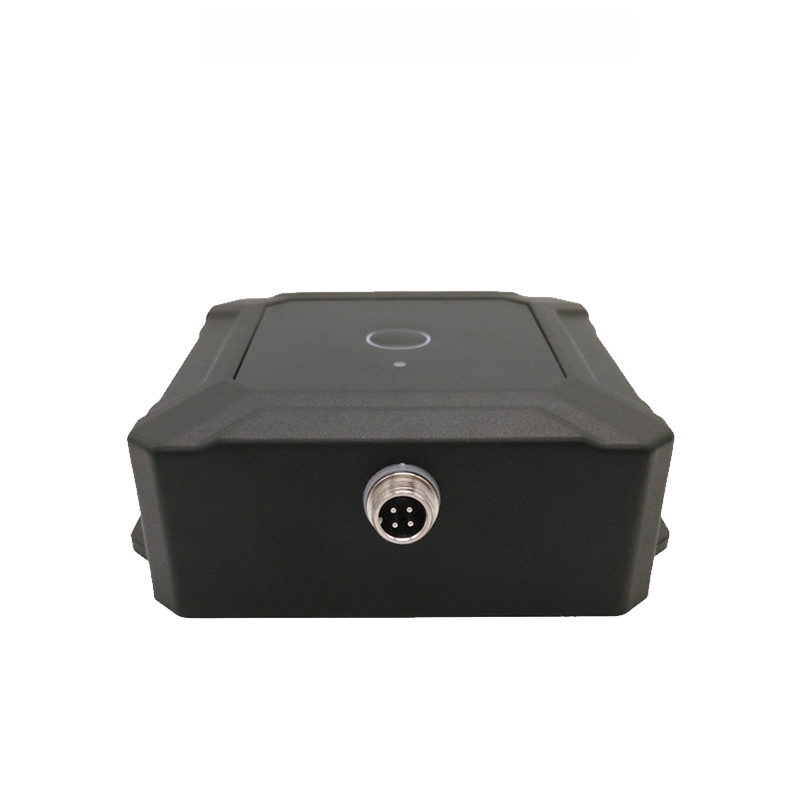

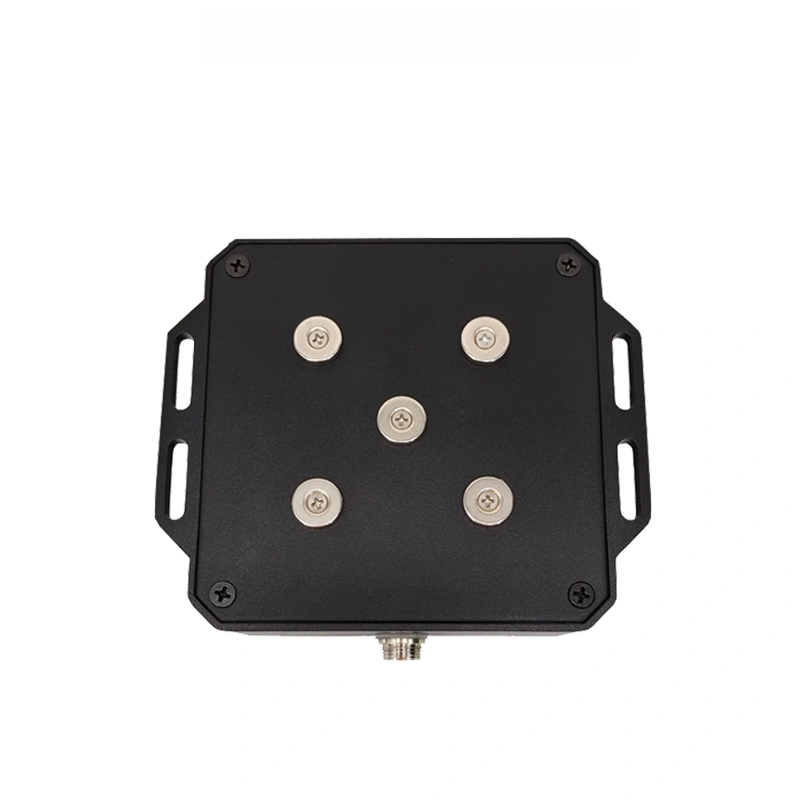

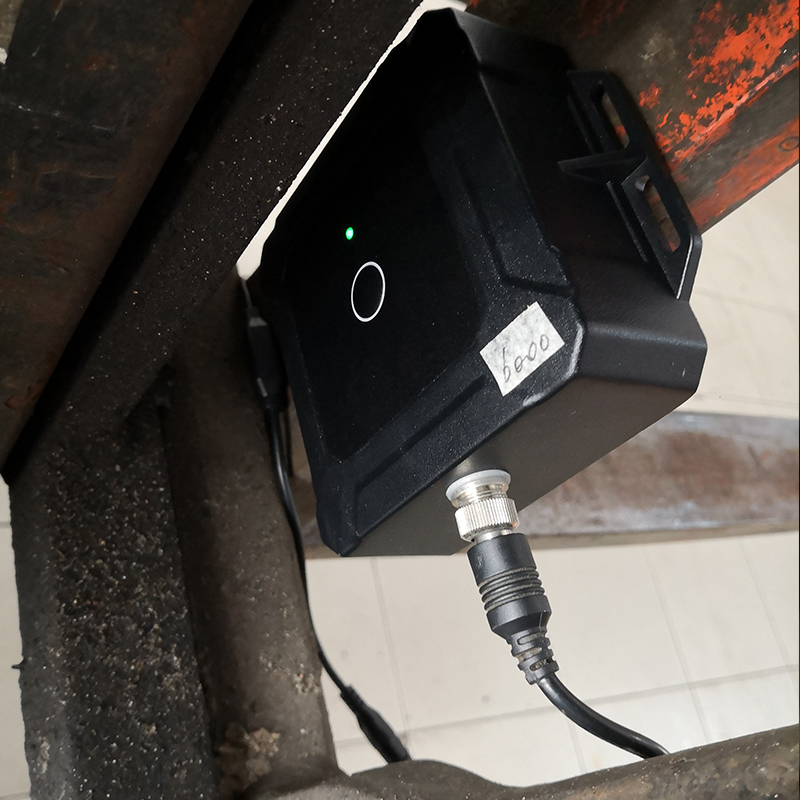

IP69K 12V 5000MAH Rechargeable Battery with magnet。

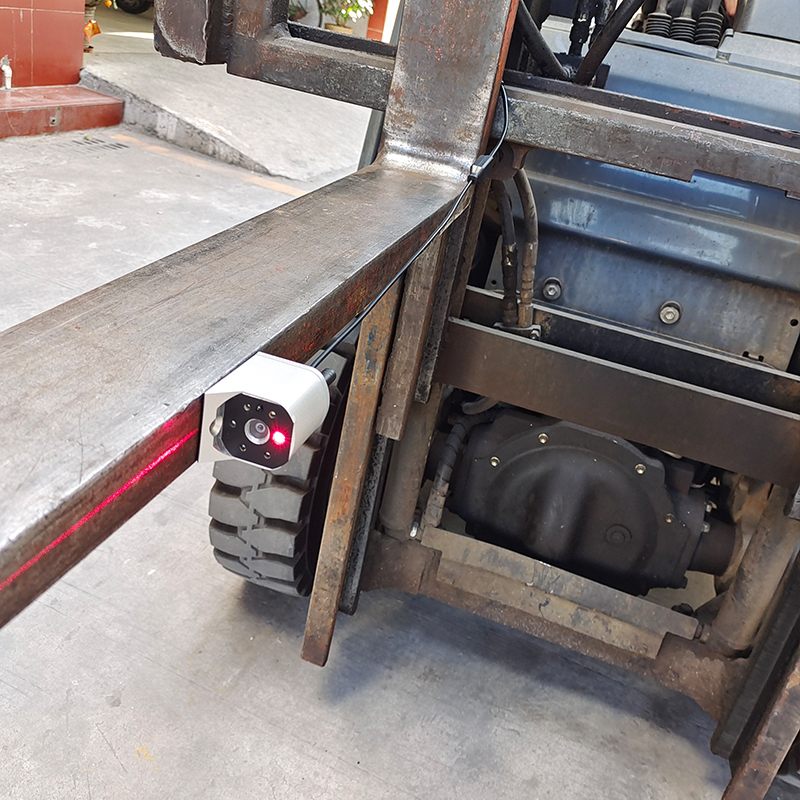

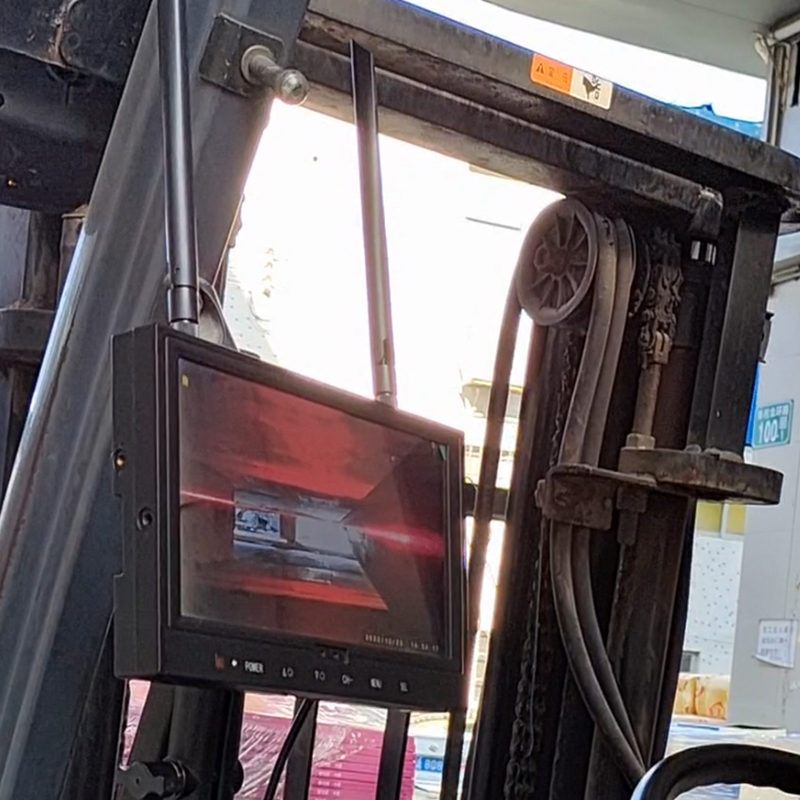

9 inch Monitor Wireless Forklift Camera Systems Application:
