DC12V Waterproof IP69K AHD Cameras 4-Pin Aviation 1080P Camera
SVS-C29158AI-1080P

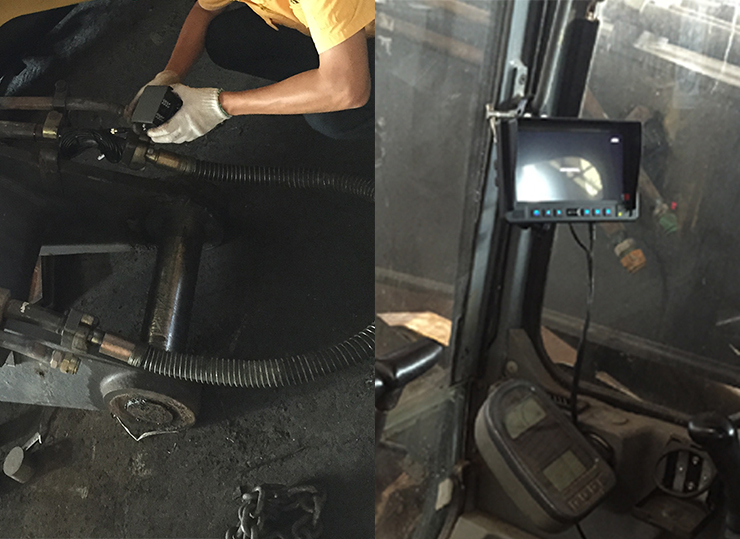

12V Waterproof AHD Camera (IP69K Rated, dustproof & waterproof) is a high-definition surveillance solution designed for extreme environments. It is widely used in car/truck/boat/forklift applications.
minimum order
20 pieces
Quantity
DC12V Waterproof IP69K AHD Cameras 4-Pin Aviation 1080P Camera
Waterproof IP69K AHD Camera Feature:
SVS-C29158AI-1080P:
Parameter Specification
Resolution 1920×1080 (1080P) / 1280×720 (720P)
Lens 2.8mm–8.0mm ()
Protection Rating IP69K (dust + high-pressure water)
Power Input: 12V DC
Material: Aluminum alloy
Mounting: Bolt-on/Magnetic
Resolution 1920×1080 (1080P) / 1280×720 (720P)
Lens 2.8mm–8.0mm ()
Protection Rating IP69K (dust + high-pressure water)
Power Input: 12V DC
Material: Aluminum alloy
Mounting: Bolt-on/Magnetic
1080P Camera Specification:
| Model | SVS-C29158AI-1080P |
| Sensor | 1/2.9“ （2000TVL） 1080P |
| Video Resolution | PAL/NTSC : AHD-M (2000TVL) 1920（H）×1080（V） |
| Minimum ilumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Black and White:0.01Lux@(F1.2,AGC ON),0Lux with IR | |
| Shutter | 1/50 (1/60) sec to 1 / 10,000 sec |
| Lens | 2.8MM, 6.0MM, 8.0MM, 3.6MM |
| Day and Night | support IR-CUT |
| Sync system | Inter sync |
| Electronic shutter | Auto |
| White balance mode | Auto |
| Video output | AHD standard output 4-pin aviation cable |
| IR | IR:20PCS LEDS , 5-15m IR range |
| S/N | >46dB |
| Power | 12V dc +/- 10% |
| Power consumption | <5W |
| Working Temperatura&Humidity | -20 ℃ ~ 60 ℃, humidity less than 90% (no condensation) |
| Waterproof | IP69K |

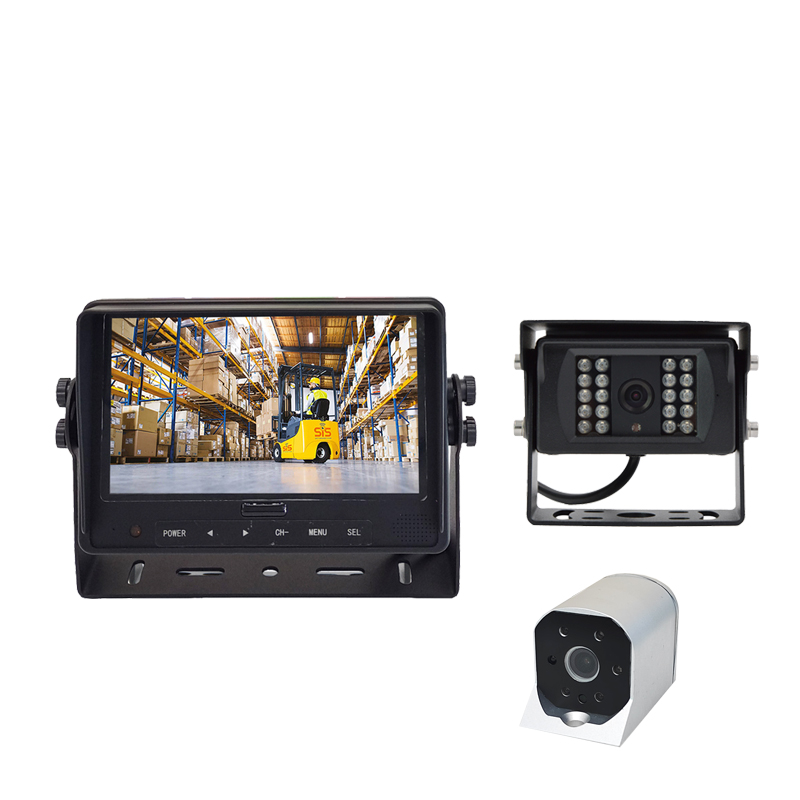

DC12V AHD Camera System:

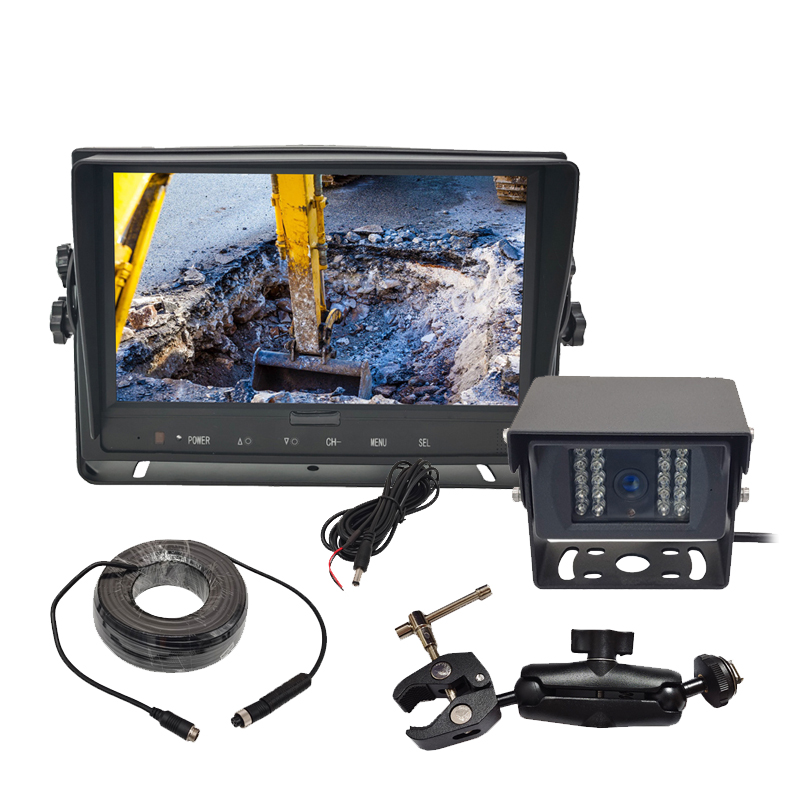

7 Inch AHD Camera Systems 9 Inch AHD Camera Systems
FAQ
Q: Can it work in freezing temperatures?
- Yes! support -30°C operation.
Q: Does it require a DVR or monitors?
- Optional. Works with AHD DVRs or standalone monitors.
Q: How long is the cable?
- Standard 5m, extendable to 25m with signal boosters.
