7 inch ahd backup monitor 12v waterproof ahd camera forklift camera system with laser
SVS-M080608-TW/C29819IL-1080P
minimum order
5 pieces
Stock Time
7Day
Quantity
7 inch ahd backup monitor 12v waterproof ahd camera forklift camera system with laser
WaterproofAHD Camera Feature:
SVS-C29819IL-1080P:
1）1/2.9“ （2000TVL） 1080P.
2）IP68 Water Resistant Housing.
3) Nightvision Distance: approx. 1-3M .
4) Operating Voltage Range: 12V.

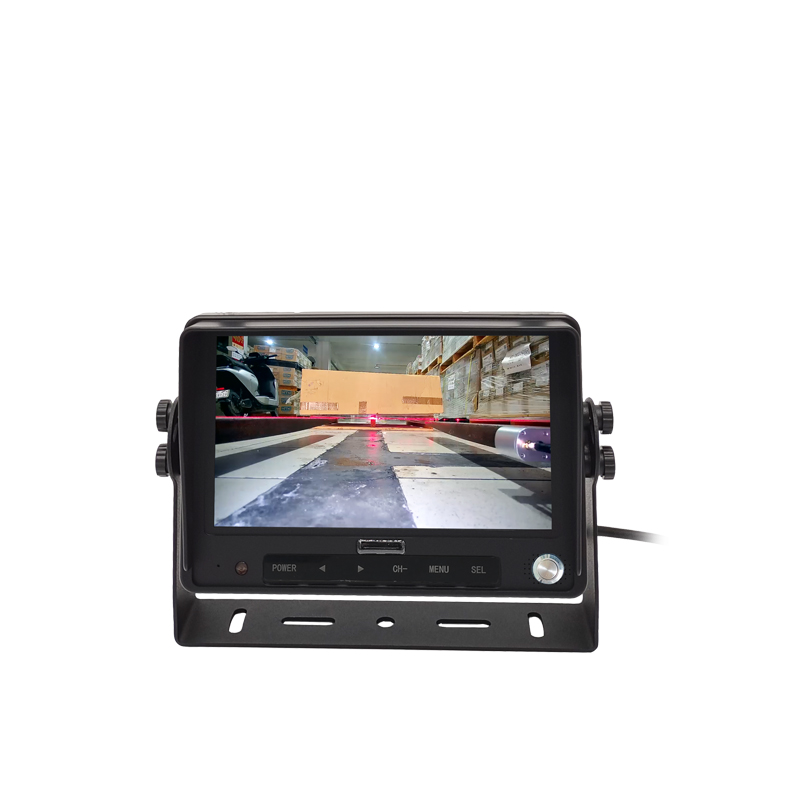

7 inch ahd monitor waterproof specification:
| Model | SVS-M080608-TW | Model | SVS-C29819IL-1080P | |
| LCD Size | 7 inch IPS LCD | Image Sensor | 1/2.9＂GC2053 | |
| Dot pitch | 0.1506(H)×0.1432(V) | Effective Pixel Array | 1920 (H)x1080 (V) | |
| Resolution | 1024（RGB)*600 | ISP Model | FH8536H | |
| Brightness | 400cd/㎡ | TV System | PAL / NTSC | |
| Viewing Angle | U: 50° / D: 70°, R/L: 70° | Minimum Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR | |
| Aspect Ratio | 16:9 /4:3 | Laser Lamp Power | <70mW | |
| Language | Chinese, English, Japanese, Korean, Russian | Laser Lamp Wavelength | 660nm | |
| Video system | Video Input | Optional 1-4-channel video input, aviation port, 1.0VP-P, 75Ω | Laser Lamp Angle | 120° |
| Preview Function | Single-channel preview, support manual/event trigger full-screen display function | Shutter | Auto | |
| Audio | Audio input | MAX support 4CH aviation interface Input | Day and night mode | Auto,External control (default),Color,black and white |
| Power and Power Consumption | Input voltage | DC：12~48V | Sync. System | Internal |
| Power consumption | Maximum normal work: 8W, standby 0.5W | Frame Rate | 1080P@25fps / 1080P@30fps | |
| Working Environment | Temperature | -30℃ to +80℃ | Video Output | AHD/TVI/CVI/CVBS(Switchable) |
| Humidity | 20% to 80% | Exposure | Brightness/burst mode/AGC | |
| White Balance | manual/auto | |||
| Video Settings | Contrast/sharpness/Saturation/digital noise reduction/video standard/digital wide dynamic | |||
| Microphone | No | |||
| Lens | f = 3.6mm | |||
| Power supply | DC12V/ Max.300mA | |||
| Operating temperature | -20~60°C | |||
| Storing Temperature | relative humidity, less than RH 90%. | |||

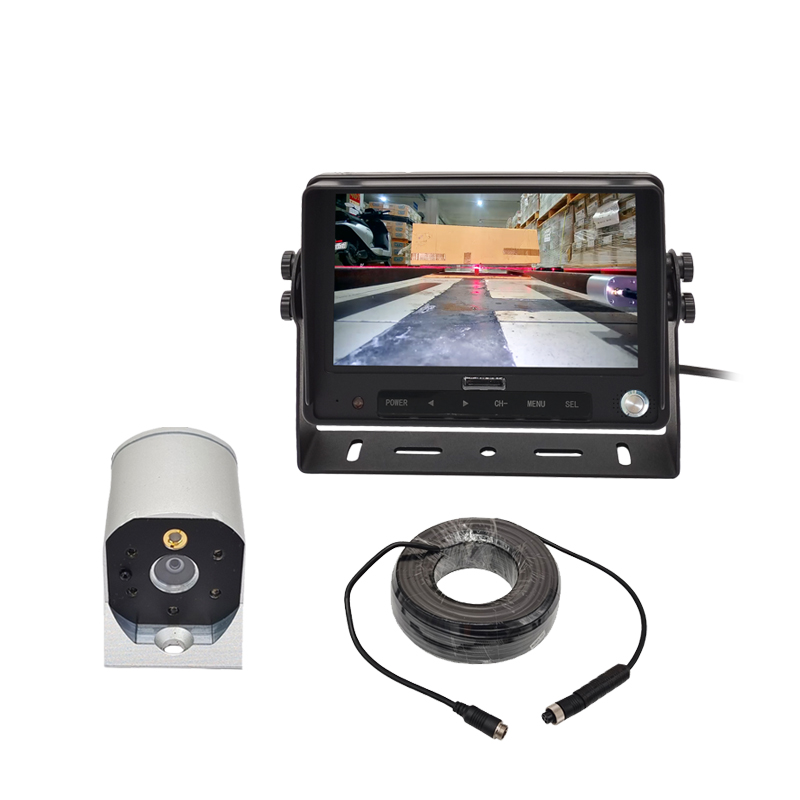

7 inch ahd monitor system:

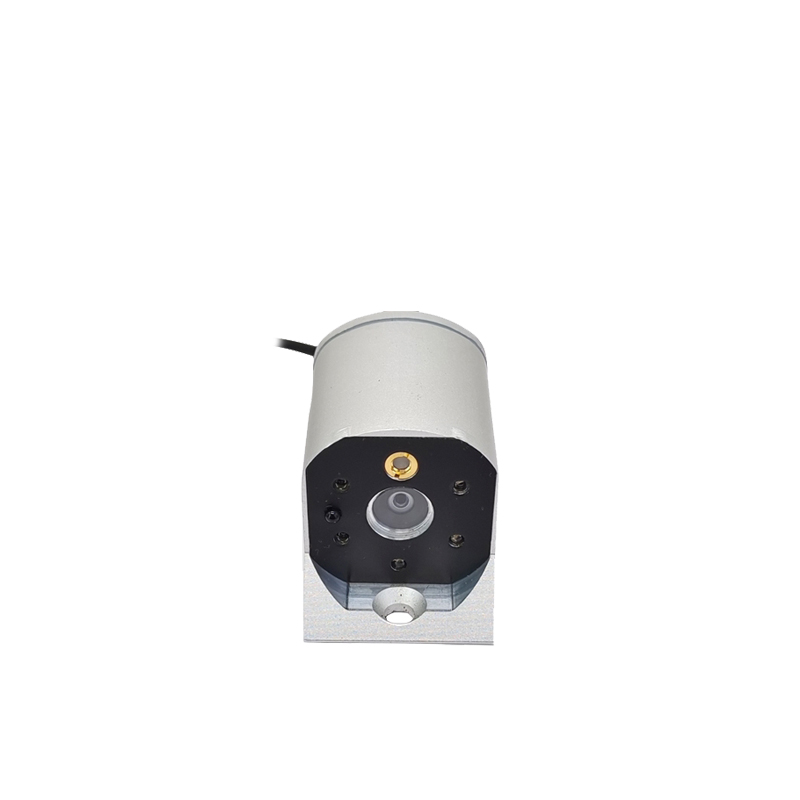

12v Forklift Camera with Laser:
