AHD Cameras Receiver Transmitter Box for Vehicle Reverse Camera System Supplier

SVS-B0237A-b0337A
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
guangzhou of China
Stock Time
30Day
Quantity
Contact Now
Buy Now
add to cart

AHD Cameras Receiver Transmitter Box for Vehicle Reverse Camera System Supplier

AHD cameras receiver transmitter box specifications:

Power ON＞2S
Latency120ms
ResolutionPAL:720X1920/NTSC:720X1920/PAL:1920X1080P/NTSC:1920X1080P
Frame Rate NTSC:30f/s/PAL: 25f/s
Video Codec MPEG4
Video in System PAL/NTSC
Operation Frequency 2400 ~ 2483.5MHz
RF Impedance 50Ω, Typ.
Transmit output power21 dBm
Receiving sensitivity－89dBm
RF Bit Rate 12Mbps
ModulationFSK/GFSK
Spread Spectrum FHSS
Launch distance300-500M
Video Output impedance75Ω, Typ.
Video Output Level 1Vp-p, Typ.
Audio Output Level 5mv~0.5Vp-p, Typ.
S/N 340Hz ~ 3.4kHz 63dB, Min
Power SupplyDC12-36V/300mA
Current Consumption＞200MA/12V
Operating Temperature-20°C~70°C
Storing Temperature-30°C~80°C
Operating humidityHumidity 90%
Waterproof ratingIP68K

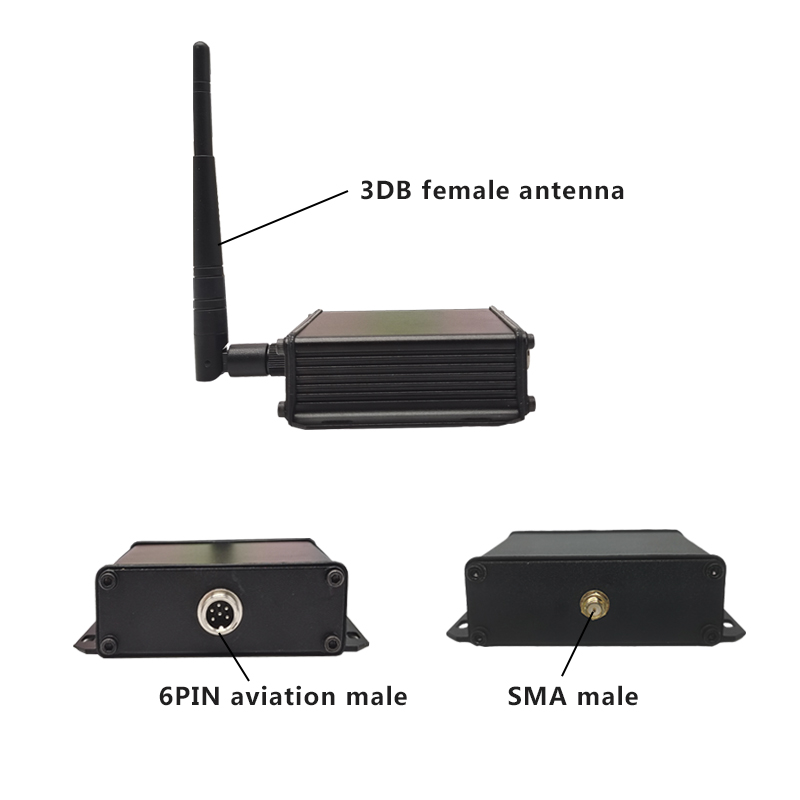

DC12v ahd receiver transmitter:

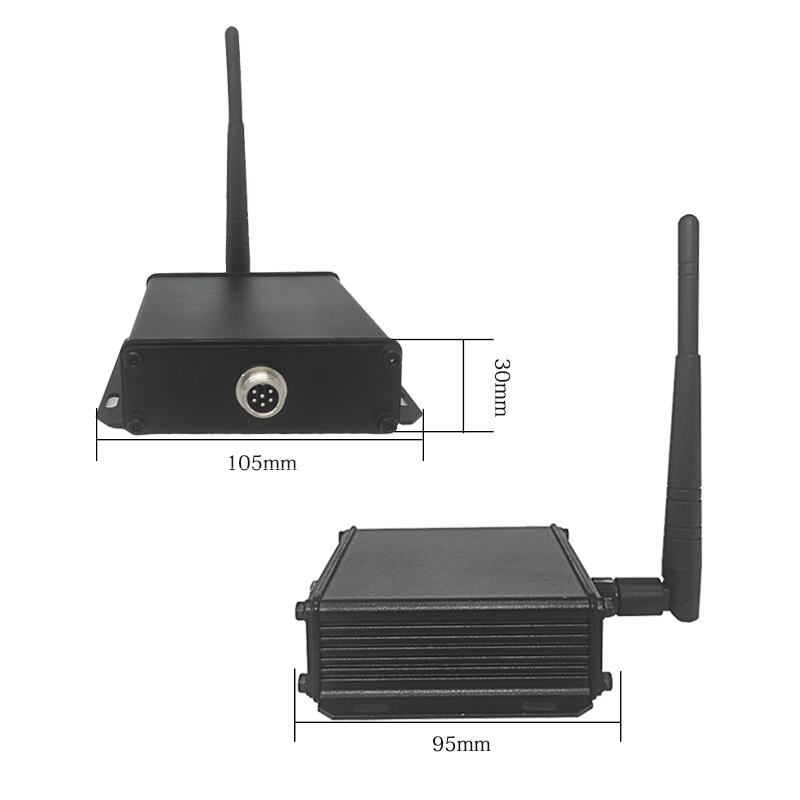

wireless receiver transmitter dimension:

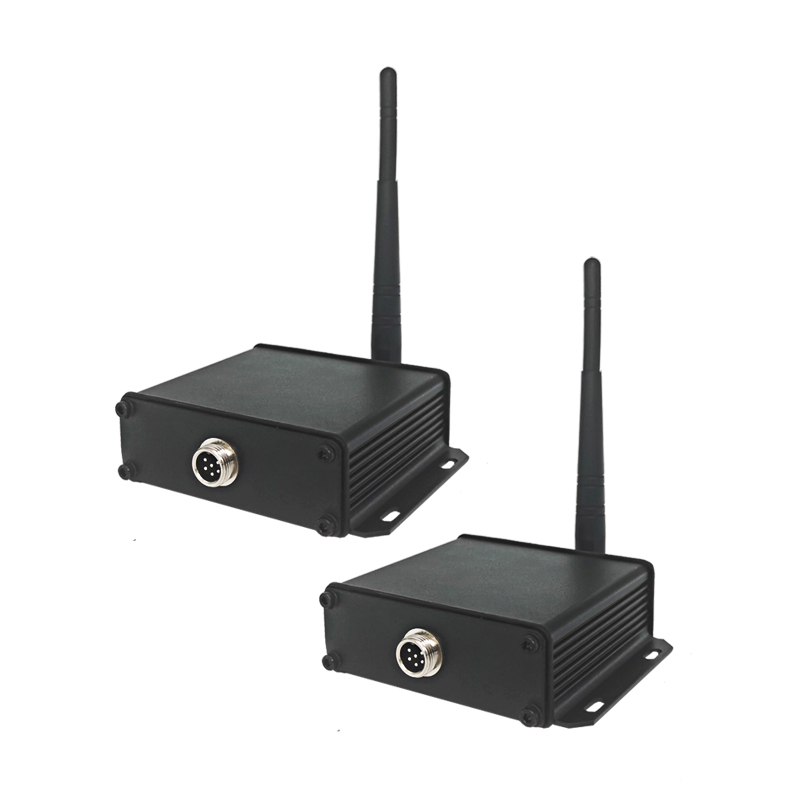

Transmitter and receiver for camera details:

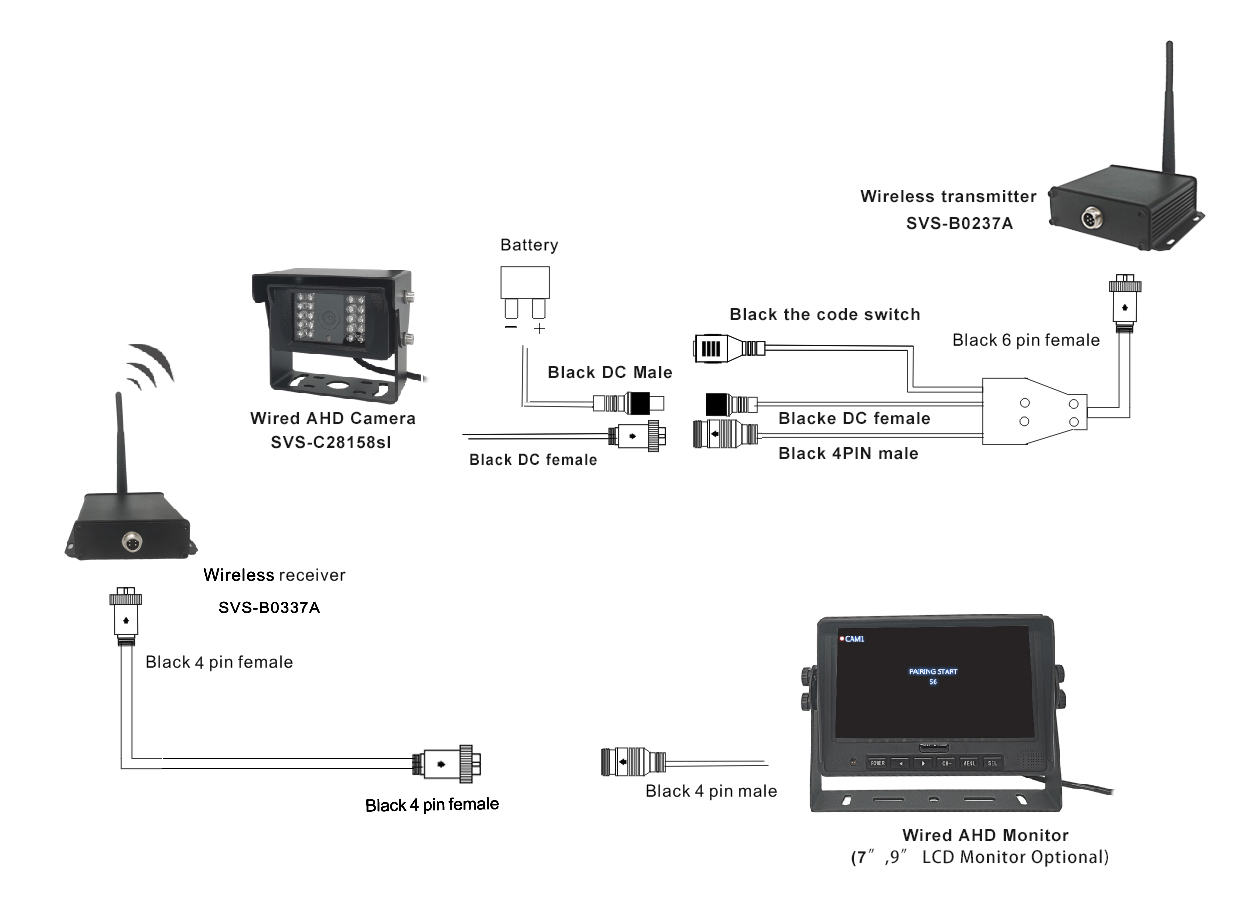

wireless receiver transmitter for camera monitor.
