Wireless Reach Truck Forklift Camera 10.1 Inch Wireless Monitor Rearview Quad Split View 1080P Laser Camera System for forklift
SVS-M12104FHD-TW/SVS-C28819IL-1080P/SVS-B0137B
1. Adopting stable 2.4G wireless transmission, no complicated wiring or drilling is required for installation.
2. The camera is IP68 waterproof rate. Excellent waterproof level can allow camera working well outside, even in rainy days.
3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
4. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. The camera is IP68 waterproof rate. Excellent waterproof level can allow camera working well outside, even in rainy days.
3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
4. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
Wireless Reach Truck Forklift Camera 10.1 Inch Wireless Monitor Rearview Quad Split View 1080P Laser Camera System for forklift
Wireless reach truck forklift camera is specially designed for reach trucks, narrow aisle forklifts and warehouse stacking equipment. It solves blind spot risks during high-level stacking, cargo picking and narrow-space driving.
10.1 Inch Wireless Monitor: 1080P Laser Camera:
| SVS-M12084FHD-TW | SVS-C28819IL-1080P | |||
| 1 | 7 inch IPS LCD | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing, Waterproof IP68. | |
| 3 | Quad display mode, Dual display mode, auto-scan mode, and single display mode available. | 3 | support laser position function. | |
| 4 | Storage capability of TF CARD: 256G. | |||
10.1 Inch Wireless Monitor 1080P Laser Camera System for forklift Specification:
| Model | SVS-M12104FHD-TW | Model | SVS-C28819IL-1080P |
| LCD size | 10.1" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x 2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:09:00 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | No |
| Transmitting Distance | 30-380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | Laser lamp power | <70mW |
| Decompression Form | H.264 | Laser lamp wavelength | 660nm |
| Emitting Frequency | 17 dBm | Laser lamp angle | 120° |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Communication protocol | P-WIFI |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 30-380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 3.6mm |
| Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 110° |
| Waterproof | IP66 | Waterproof | IP68 |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. | ||

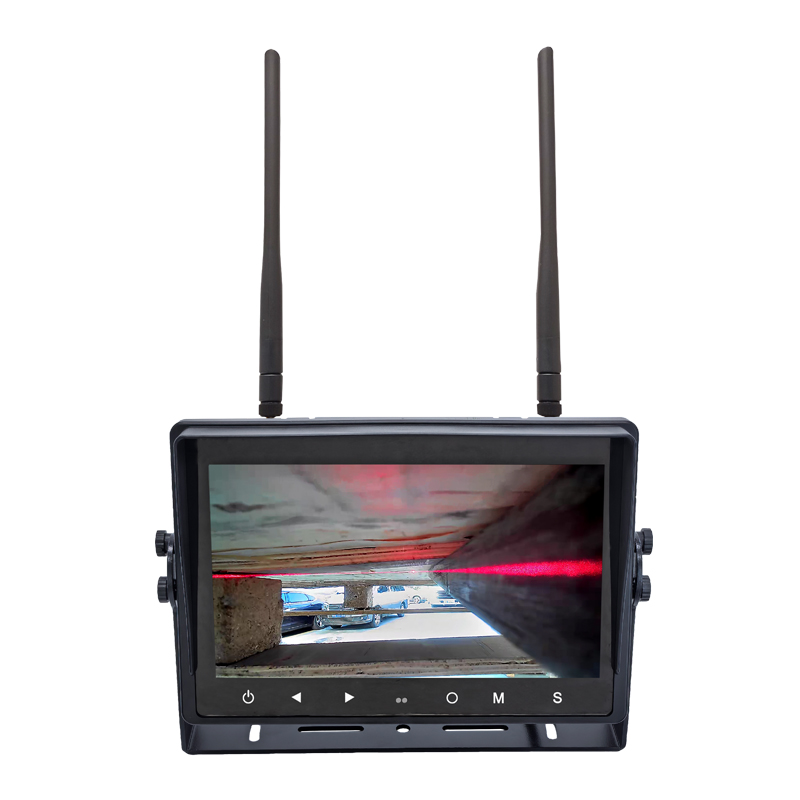

10.1 Inch Wireless Monitor Product Detail:
Power Supply: DC12-48V.
Waterproof Rate: IP66.
Transmitting Distance: 30-380M
Support 4-channel simultaneous recording and video replay.
Support storage capability of SD CARD: 256G.
Wireless forklift camera Magnetic Mounted Camera Detail:
Waterproof, shockproof design.
IP68 waterproof design for forklift, shell full sealing process, Aluminum alloy material.
laser positioning, no wiring, easy to install with magnetic magnets, stable anti-interference signal transmission..
2600mah Waterproof Battery:
| Model | SVS-B0137B | |
| Nominal Voltage | DC 12V | |
| Rated Capacity | 2600mAh | |
| Overcharging Protection Voltage | 12.6V ± 0.25V | |
| Voltage | 10.5V ± 0.25V | |
| Discharging Protection | ||
| Charging Mode | Constant current | |
| Maximum | 25V | |
| Charging Voltage | ||
| Solar Charging | Yes | |
| Charge Current | 3.2A | |
| Waterproof | Waterproof IP67 | |
| Installation | Bracket (With magnet base optional) | |
| Charging Temperature | 0~45℃, 60±25%RH | |
| Discharging Temperature | -20~55℃, 60±25%RH | |
| Storage Temperature and Humidity Range | Short-term: more than a month | -20~+55℃, 60±25%RH |
| Interim: more than three months | -20~+45℃, 60±25%RH | |
| Long-term: one year or less | -5~+20℃, 60±25%RH | |
The high-definition lens delivers clear real-time images day and night, greatly improving driving visibility.
Equipped with optional red/green laser line positioning, it helps drivers align pallets accurately, reduce cargo and shelf
Equipped with optional red/green laser line positioning, it helps drivers align pallets accurately, reduce cargo and shelf
collision damage, and boost warehouse work efficiency.
