Wireless Backup Camera Kit for Excavator IP69K Waterproof Rear View Camera and 7 Inch Quad Screen with DVR
SVS-M12074FHD-C28158AI-1080P

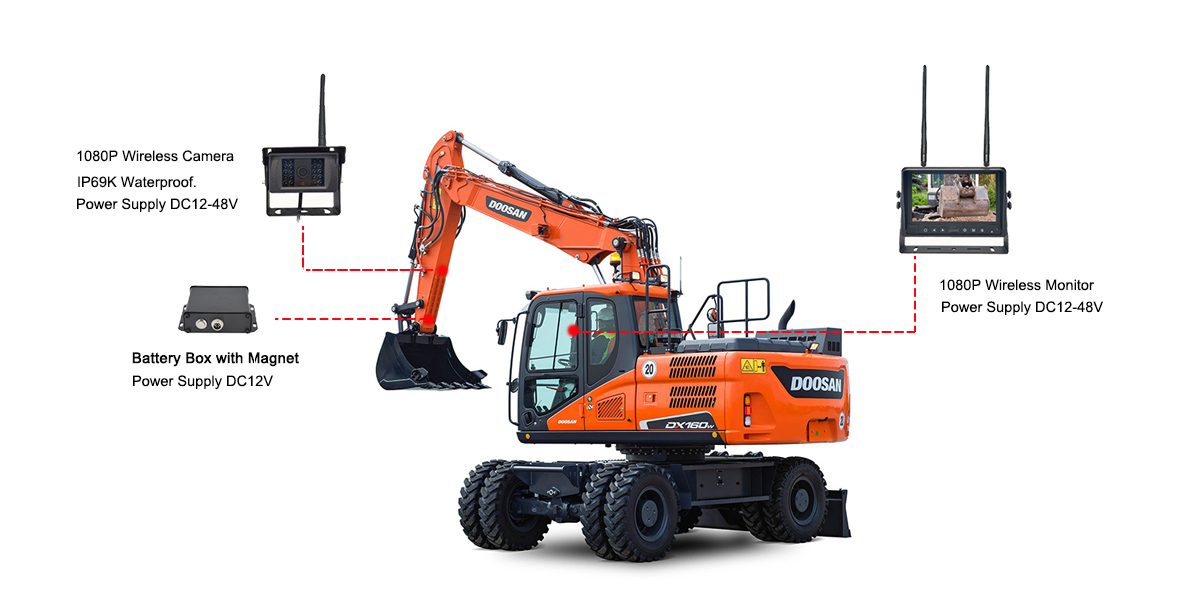

1. The display can be powered from the cab, the camera is powered by the vehicle mobile power supply, and the display and camera do not need to be connected by an extension cable before. The whole system is easy to install.
2. Camera support IP69K waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy days.
4. Large memory card for monitor. storage capability of SD card 256G, support 4-channel simultaneous recording and video replay.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. Camera support IP69K waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy days.
4. Large memory card for monitor. storage capability of SD card 256G, support 4-channel simultaneous recording and video replay.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
Wireless Backup Camera Kit for Excavator IP69K Waterproof Rear View Camera and 7 Inch Quad Screen with DVR
7 Inch Quad Screen with DVR Features:
| SVS-M12074FHD | SVS-C28158AI-1080P | |||
| 1 | 7" IPS LCD, 1024 x 3 (RGB) x 600 | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Operating voltage range: DC12-48V. | |
| 3 | Quad display mode,Dual display mode, auto-scan mode, and single display mode available. | 3 | Nightvision distance: approx. 10-15 m. | |
| 4 | Storage capability of SD CARD: 256G. | |||
Wireless Backup Camera for Excavator specification:
| Model | SVS-M12074FHD | Model | SVS-C28158AI-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:9 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Press-button | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | Yes |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | AGC | Auto |
| Decompression Form | H.264 | S/N Ratio | Better than 48 dB |
| Emitting Frequency | 17 dBm | Communication protocol | P-WIFI |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Current Consumption | Max. 400 mA/12V |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 2.8mm |
| Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 120° |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. | ||
| Waterproof Rate | IP69K | ||

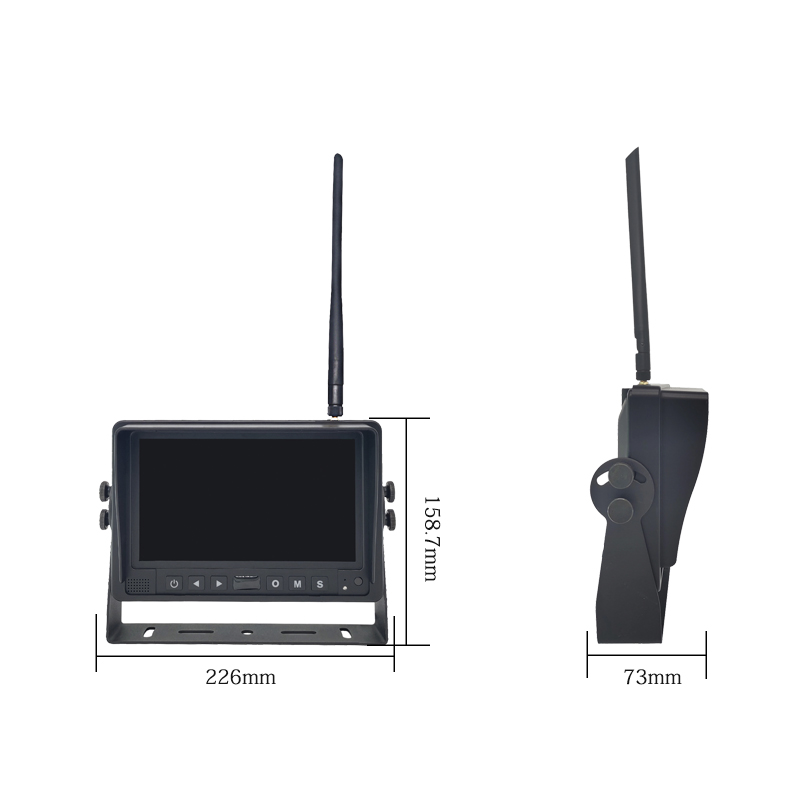

7 Inch Quad Screen with DVR Detail:

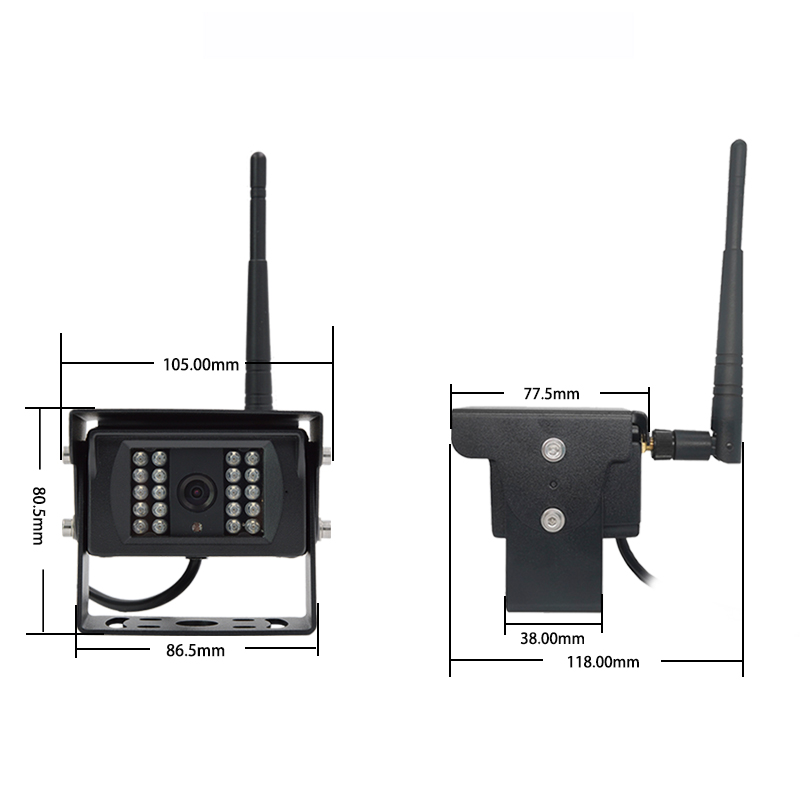

IP69K Waterproof Rear View Camera Detail:
