Waterproof IP68 1080P Wireless Forklift Camera Rearview Vehicle 7 Inch Wireless AHD Monitor Camera Solutions
SVS-M12084FHD-TW-C28819IL-1080P-B0137B
1. No messy cables. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.
2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.
3. Waterproof cameras. This camera is IP68 waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Large memory card for monitor. Max 128G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.
3. Waterproof cameras. This camera is IP68 waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Large memory card for monitor. Max 128G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
7 Inch Wireless AHD Monitor Wireless Forklift Camera Solutions
7 Inch Wireless AHD Monitor: Wireless Forklift Camera:
| SVS-M12084FHD-TW | SVS-C28819IL-1080P | |||
| 1 | 7 inch IPS LCD | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing, Waterproof IP68. | |
| 3 | Quad display mode, Dual display mode, auto-scan mode, and single display mode available. | 3 | support laser position function. | |
| 4 | Storage capability of TF CARD: 256G. | |||
7 Inch Wireless AHD Monitor/Wireless Forklift Camera Solutions Specification:
| Model | SVS-M12084FHD-TW | Model | SVS-C28819IL-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x 2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:09:00 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | No |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | Laser lamp power | <70mW |
| Decompression Form | H.264 | Laser lamp wavelength | 660nm |
| Emitting Frequency | 17 dBm | Laser lamp angle | 120° |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Communication protocol | P-WIFI |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 3.6mm |
| Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 110° |
| Waterproof | IP68 | Waterproof | IP68 |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. | ||
Product Detail:

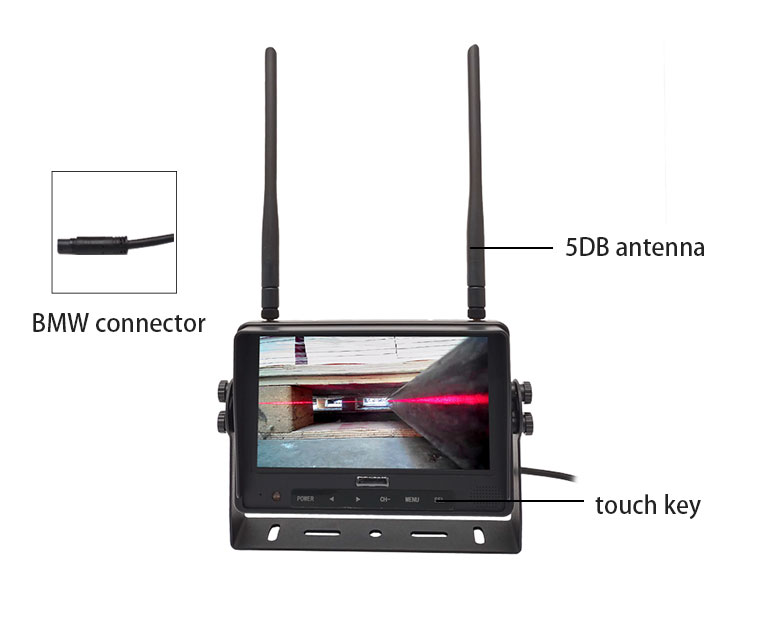

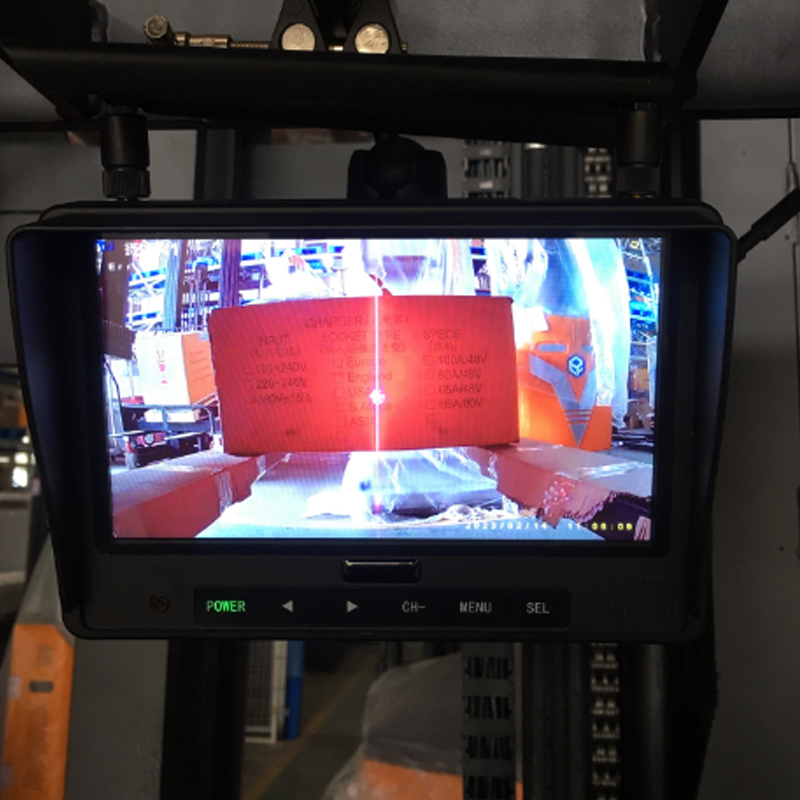

7 Inch Wireless AHD Monitor
7 inch IPS LCD.
Power Supply: DC 12-48 V.
Waterproof Rate: IP68.
Support 4-channel simultaneous recording and video replay.

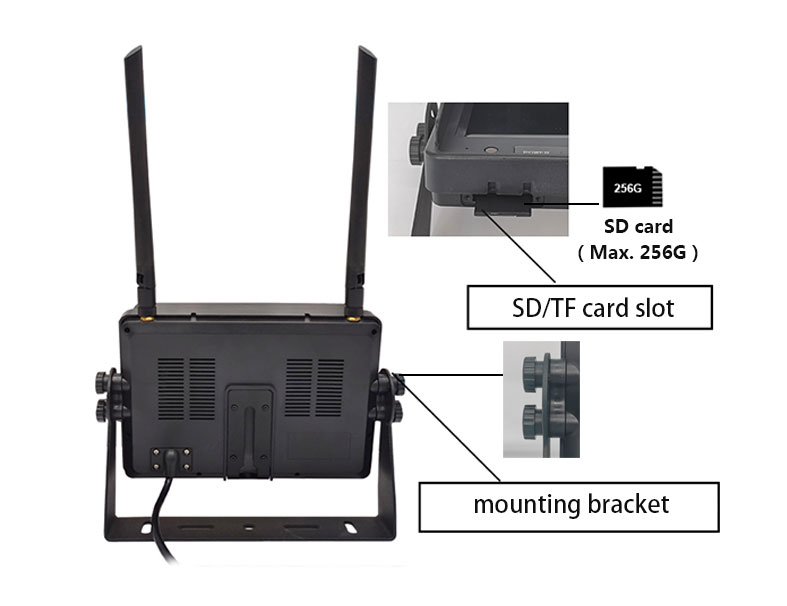

Support storage capability of SD CARD: 256G.

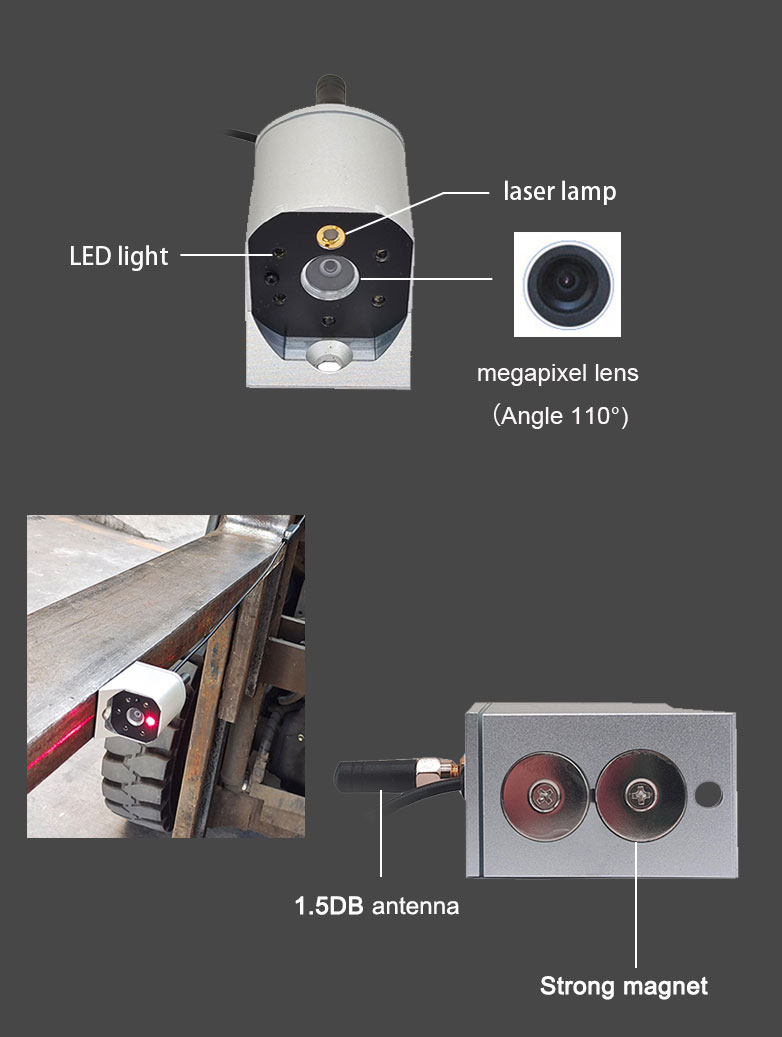

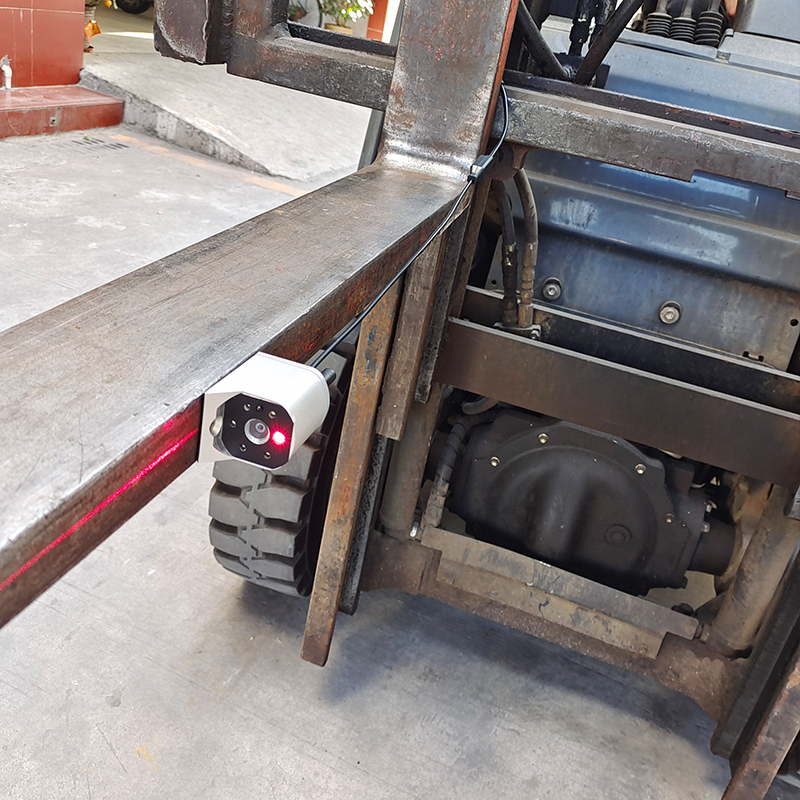

Wireless forklift camera solutions detail:

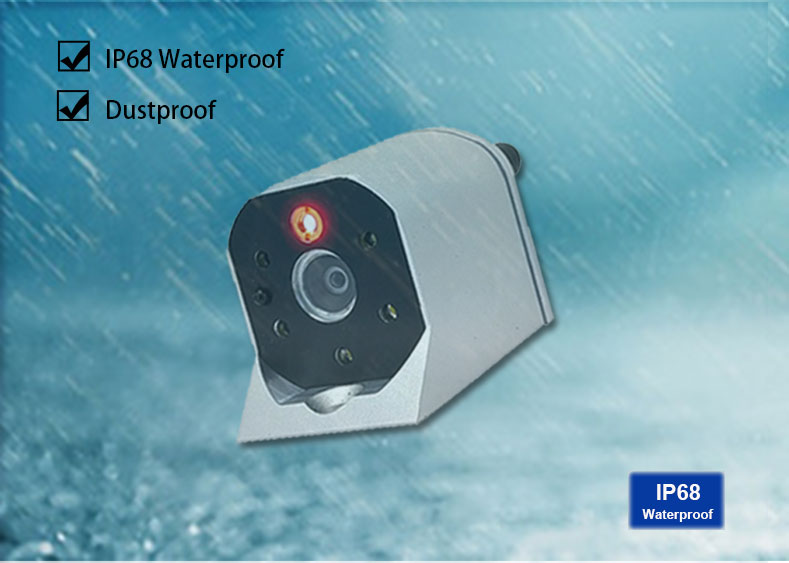

Waterproof, shockproof and anti-loose design.
IP68 waterproof design for Forklift, shell full sealing process, Aluminum alloy material/
laser positioning/no wiring/compact appearance/ easy installation/stable anti-interference
signal transmission.

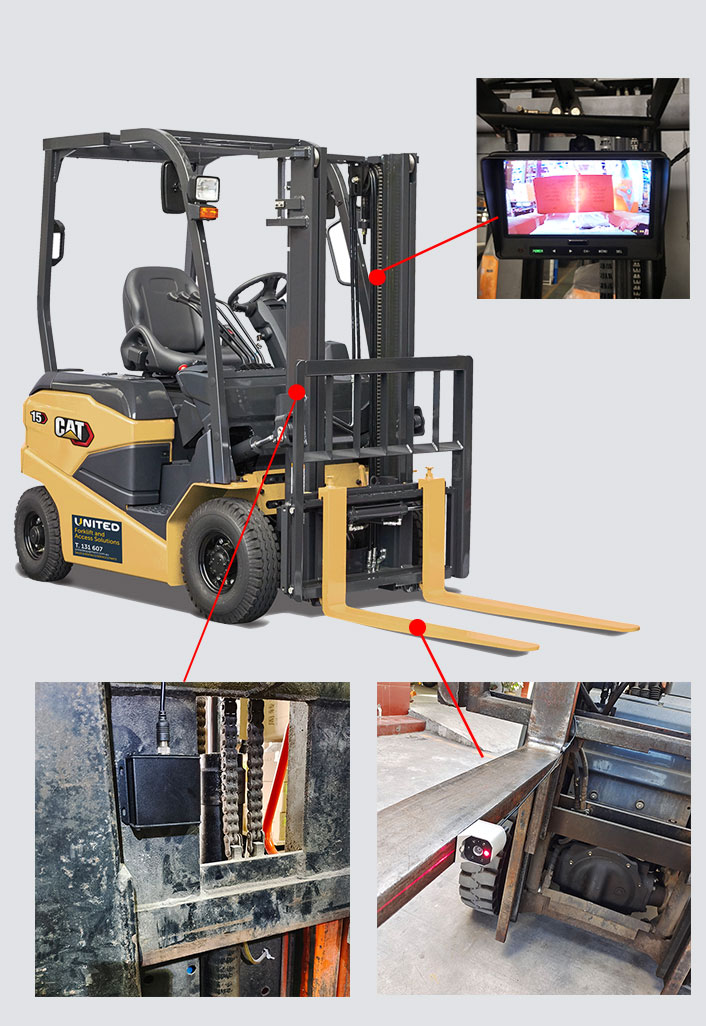

7 Inch Wireless AHD Monitor Wireless Forklift Camera Solutions is a monitoring product to avoid employees in the forklift operation security problems, IP68 waterproof process, wireless forklift camera laser positioning, small size, wireless transmission, no wiring, easy installation.

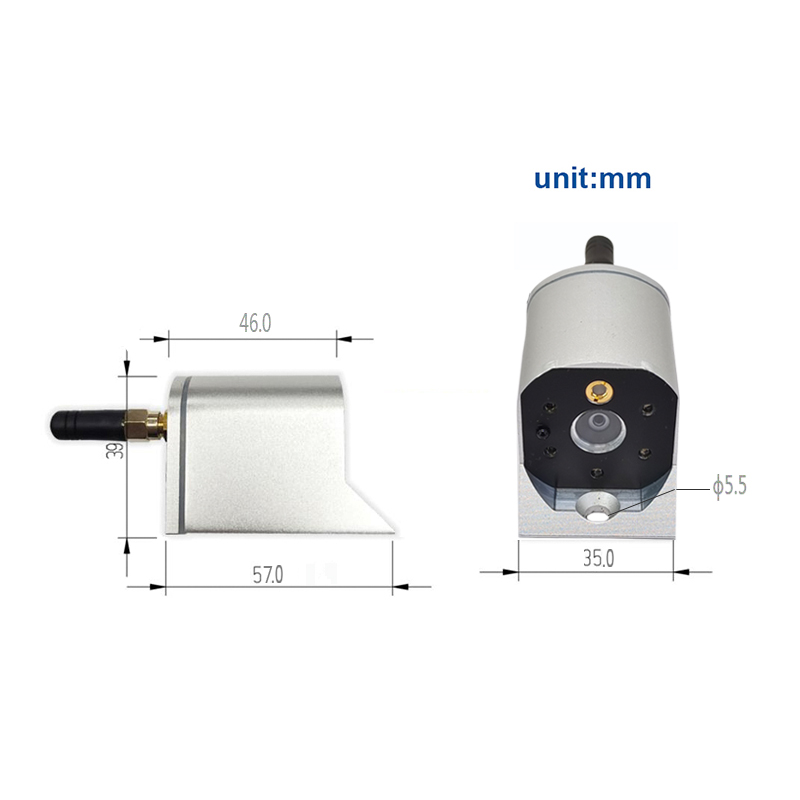

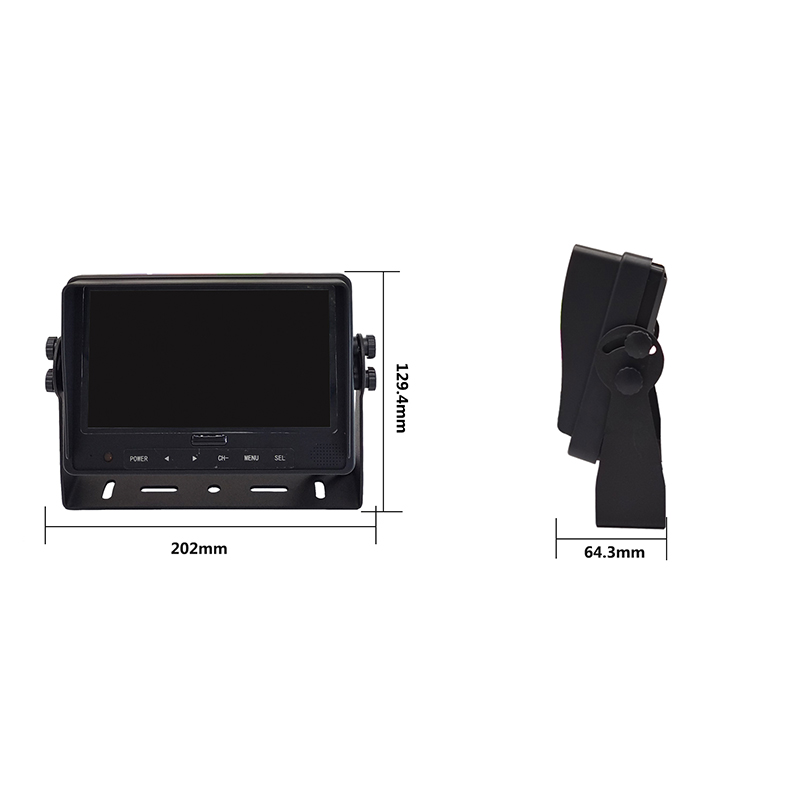

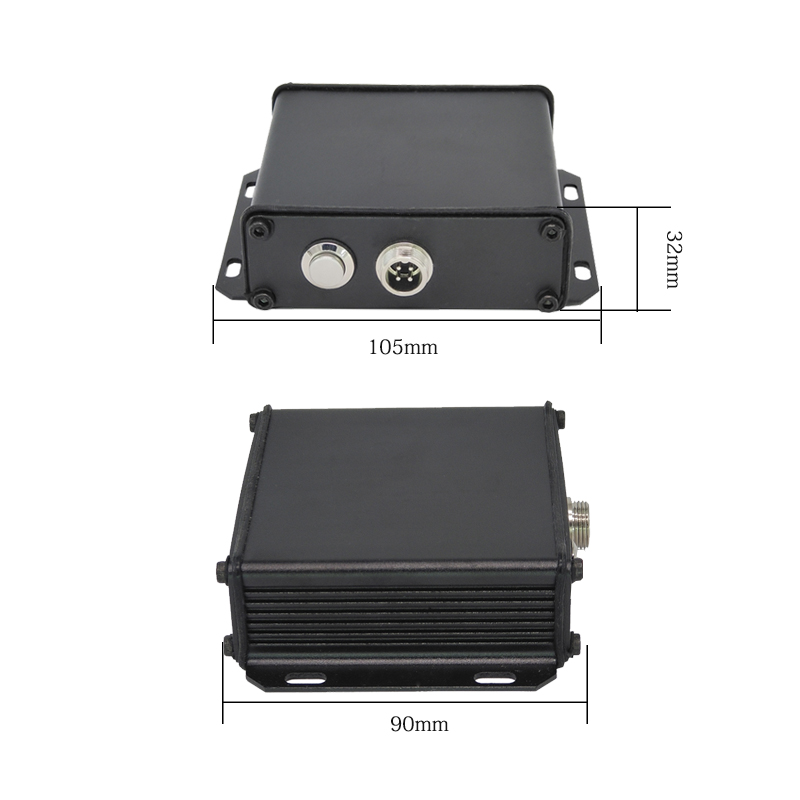

Dimension:
Wireless Forklift Camera Systems Applications:
