Stainless Explosion proof Camera IP68 Waterproof Rating DC12V IP Camera for Oil Mine Truck
SVS-C0469-4K
Delivery
EXW
minimum order
5 pieces
Supply Ability
500pieces / Month
Country of Origin
Guangzhou
Stock Time
15Day
Quantity
Stainless Explosion proof Camera IP68 Waterproof Rating DC12V IP Camera for Oil Mine Truck
Vehicle IP Camera Specifications:
| Sensor | 1/3″5 Mega Pixel Progressive Scan CMOS Sensor | ||||
| Video Processing | H.265 /H.264,Supports dual-stream | ||||
| Image Output | Main stream:5MP(2880*1624)/ 4MP(2560*1440)/ 3MP(2304*1296)/ 2MP(1920*1080); | ||||
| Time stream:448P(800*448)/ D1(704*576)/ 360P(640*360 )/ CIF(352*288); | |||||
| Image Adjustment | Supports adjustable brightness, contrast, saturation, sharpness, and hue; | ||||
| Lens | Fix-focus 4mm/F2.0, Distance 4-13 Meters; | ||||
| Viewing Angle | Horizontal view angle: 90°; Vertical view angle:50°; Diagonal angle: 99°. | ||||
| Image Processing | Support backlight compensation, digital defogging, digital noise reduction, wide dynamic range, strong light suppression, automatic white balance, and scene switching. | ||||
| Image Scene | Supports standard/ backlight/ low light/ front light/ flame/ humanoid/ alert/ custom scenes, and supports automatic switching according to time schedule. | ||||
| Night-vision Function | Color night vision, infrared night vision, smart night vision (in alert scene mode) | ||||
| OSD | Support OSD overlay names and custom fields | ||||
| Audio Processing | G.711A encoding and decoding, supports audio and video synchronization, 16KHZ sampling rate, built-in microphone, pickup distance ≥3M | ||||
| Audio Output | Built-in amplifier, supports up to 3W external speakers, and supports audio alarm output | ||||
| Voice Function | Support two-way voice intercom | ||||
| Alarm Input/Output | Support 1-channel alarm input and 1-channel alarm output | ||||
| Alarm Linkage | Built-in 1-channel alarm output | ||||
| Alarm Output | Outputs DC12V, capable of driving audible and visual alarms | ||||
| Alert Application | Electronic fence, boundary crossing detection, off-duty detection, foot traffic counting, motion detection | ||||
| People Counting Application | Statistics on the number of people crossing the line, statistics on the number of people in the area, and the detection of under-staffing, over-staffing, and absence from duty; | ||||
| Event Type | Supports application events, voice broadcast, alert output, TF card image capture, FTP upload, cloud storage; | ||||
| Event Linkage | Real-time reporting to the back-end server, uploading to the could platform, alarm recording, voice broadcasting, alarm output, and large background image capture; | ||||
| Functional Linkage | With intelligent facial recognition technology, it enables functions such as personnel entry and exit recording, blacklist and whitelist alarm linkage query and video recording; | ||||
| TF Card | Supports up to 256G of local TF storage, SD cards support FAT32/ ex FAT file systems | ||||
| Video Recording | Supports power-on recording and event-triggered recording, recorded files can be synchronously uploaded to the cloud server; | ||||
| Picture | Supports local image storage or uploading to the cloud server via the network | ||||
| Protocol | Support Onvif/ GB28181 / GA/T1400 Protocol | ||||
| SDK | Support SDK / WebAPI | ||||
| Management System | Supports Multi-level, project-based video data management | ||||
| Cloud Storage | Supports remote monitoring via mobile phone, cloud storage, remote multi-project linkage management via mobile phone; | ||||
| Waterproof Rate | IP68 | ||||
| Power Supply | Support POE 48V/0.35A, Compliant with 802.3af protocol | ||||
| Operation Temperature | -30°～60°(-22 °F ～+140 °F) | ||||

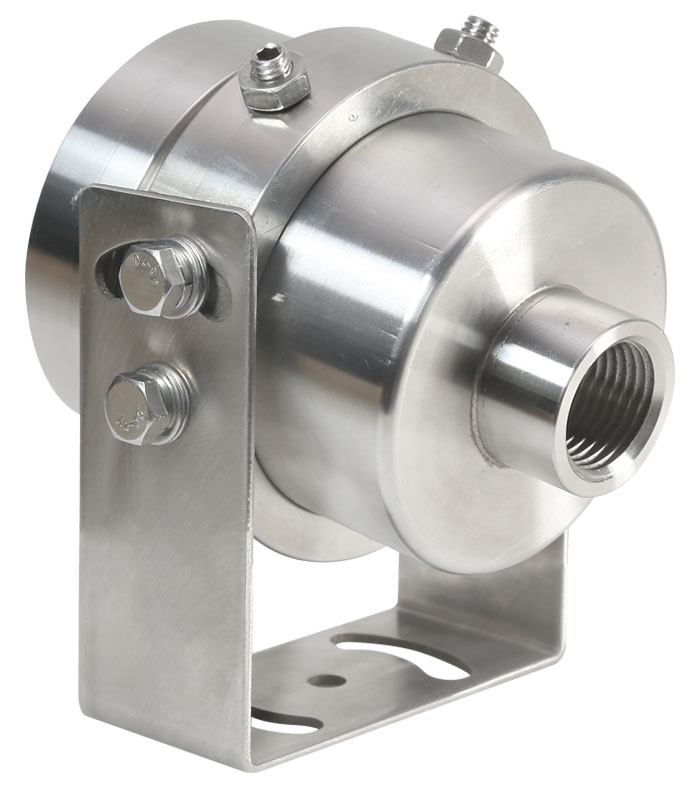

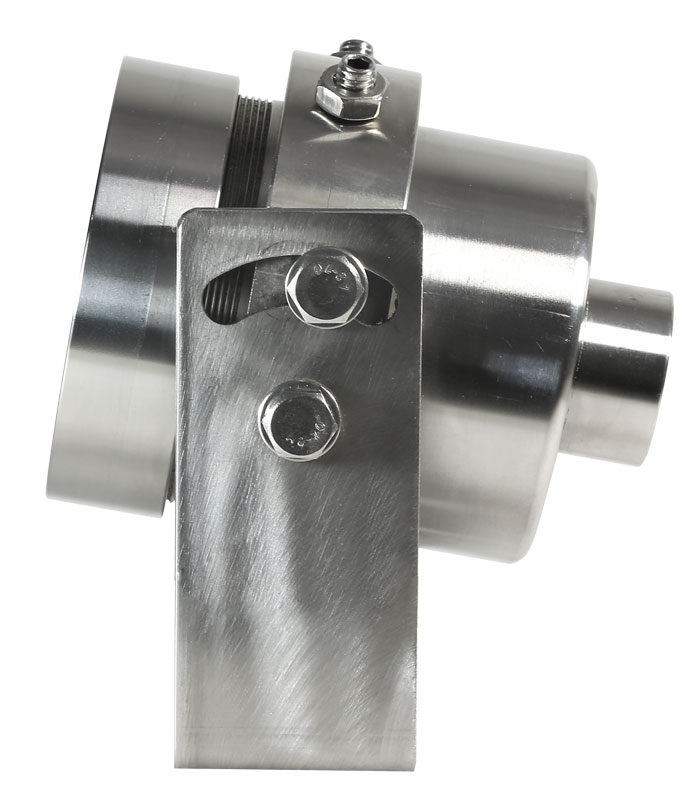

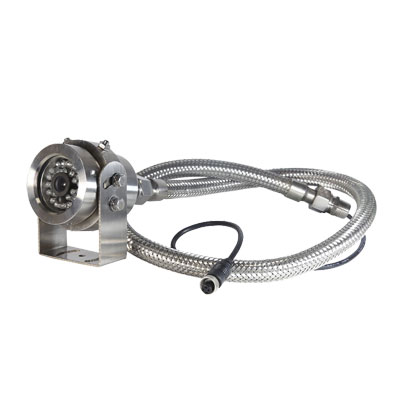

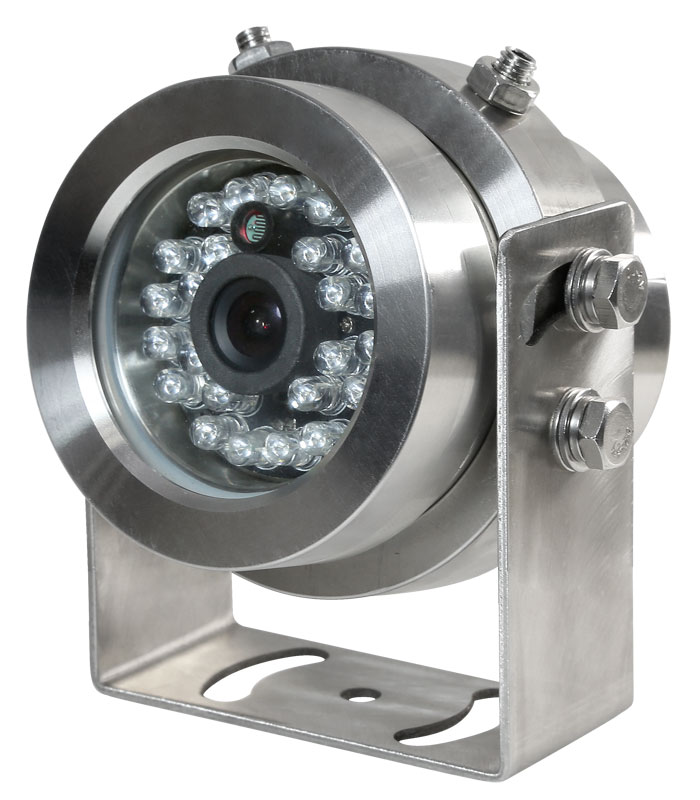

Anti-explosion Camera:

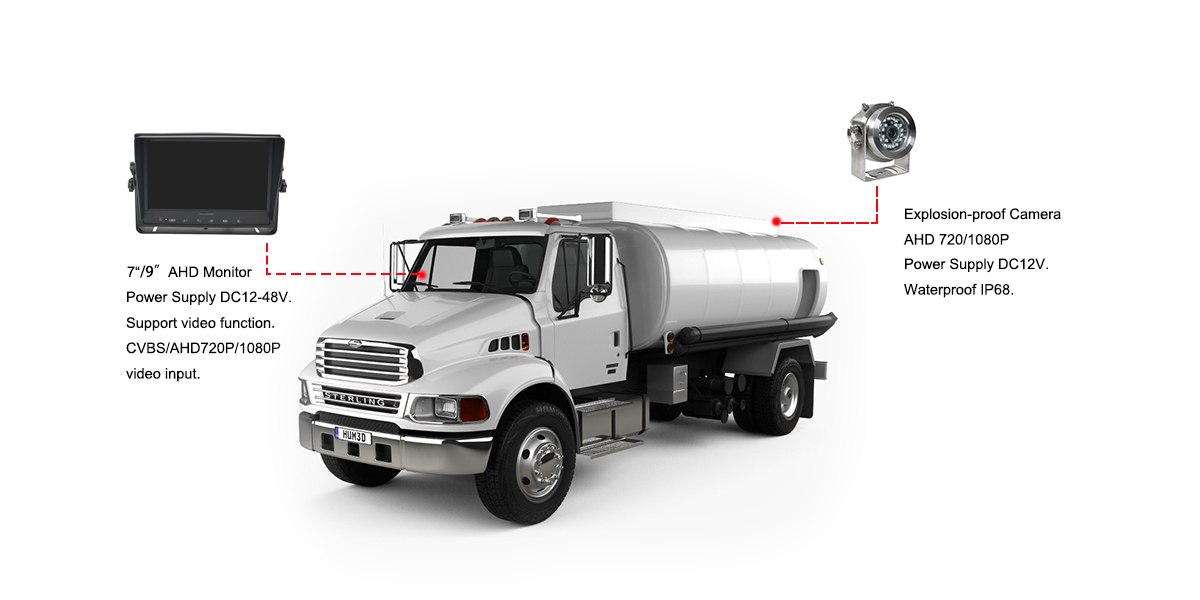

Application:
