DC12-48V Wireless AI Camera Modules
SVS-D1201/SVS-D1301
1. Adopts the latest sixth generation wireless network transmission technology, super anti-interference ability.
2. Supports artificial intelligence AI algorithm, which can achieve a maximum computing power of 1 Tops.
3. Uses H.265 audio and video coding technology, HD 720P transmission to clear and smooth image.
4. Adopts AES/DES/3DES multiple encryption and decryption algorithms to ensure the confidentiality of signal transmission.
5. Long transmission distance up to 300 meters in open space(straight and without obstruction).
6. Wide voltage operation DC12V-48V, supports optional audio function.
7. The module can be directly applied to vehicle cameras, security cameras, visual doorbells, baby monitoring, reverse rearviews and other fields.
2. Supports artificial intelligence AI algorithm, which can achieve a maximum computing power of 1 Tops.
3. Uses H.265 audio and video coding technology, HD 720P transmission to clear and smooth image.
4. Adopts AES/DES/3DES multiple encryption and decryption algorithms to ensure the confidentiality of signal transmission.
5. Long transmission distance up to 300 meters in open space(straight and without obstruction).
6. Wide voltage operation DC12V-48V, supports optional audio function.
7. The module can be directly applied to vehicle cameras, security cameras, visual doorbells, baby monitoring, reverse rearviews and other fields.
Quantity
DC12-48V AI Wireless Camera Modules
Features:
1. Adopts the latest sixth generation wireless network transmission technology, super anti-interference ability.
2. Supports artificial intelligence AI algorithm, which can achieve a maximum computing power of 1 Tops.
3. Uses H.265 audio and video coding technology, HD 720P transmission to clear and smooth image.
4. Adopts AES/DES/3DES multiple encryption and decryption algorithms to ensure the confidentiality of signal transmission.
5. Long transmission distance up to 300 meters in open space(straight and without obstruction).
6. Wide voltage operation DC12V-48V, supports optional audio function.
2. Supports artificial intelligence AI algorithm, which can achieve a maximum computing power of 1 Tops.
3. Uses H.265 audio and video coding technology, HD 720P transmission to clear and smooth image.
4. Adopts AES/DES/3DES multiple encryption and decryption algorithms to ensure the confidentiality of signal transmission.
5. Long transmission distance up to 300 meters in open space(straight and without obstruction).
6. Wide voltage operation DC12V-48V, supports optional audio function.
7. The module can be directly applied to vehicle cameras, security cameras, visual doorbells, baby monitoring, reverse rearviews and other fields.
| Module Functon: | ||||||
| Startup Time | 1-4S | |||||
| Time Delay | ≦150ms | |||||
| Resolution | 1920*720 | |||||
| Frame Rate | NTSC:30f/s/PAL: 25f/s | |||||
| Video Compression Form | H.265 | |||||
| Video System | PAL/NTSC | |||||
| AI Function: | ||||||
| Pedestrian, Vehicle Model Detection Function | Support front, rear, left and right pedestrians, vehicle model recognition, monitoring and warning alert function. | |||||
| Support 4-channel AI | Support front, rear, left and right side blind zone monitoring and warning alert function. | |||||
| Reverse Gridlines | Support reverse gridline warning alert function. | |||||
| RF Spec.： | ||||||
| Operation Frequency | 2400 ~ 2483.5MHz | |||||
| RF Impedance | 50Ω, Typ. | |||||
| Recieving Sensitivity | -89dBm | |||||
| Transmit Output Power | 17dBm | |||||
| RF Bit Rate | 12Mbps | |||||
| Modulation | FSK/GFSK | |||||
| Communication Protocol | WIFI 6 | |||||
| Transmitting Distance | 10-300M | |||||
| Video Characteristics : | ||||||
| Video Input/ Output Impedance | 75Ω, Typ. | |||||
| Video Input/ Output Level | 1Vp-p, Typ. | |||||
| S/N | 50dB, Min | |||||
| Audio: | ||||||
| Audio Input/ Output Level | 5mv~0.5Vp-p, Typ. | |||||
| S/N 340Hz ~ 3.4kHz | 63dB, Min | |||||
| DC Characteristics: | ||||||
| Power Supply | DC12-48V | |||||
| Current Consumption | 250MA/12V | |||||
| Working Environment: | ||||||
| Operating Temperature | -20°C~70°C | |||||
| Storing Temperature | -30°C~80°C | |||||
| Operating humidity | Humidity 90% | |||||

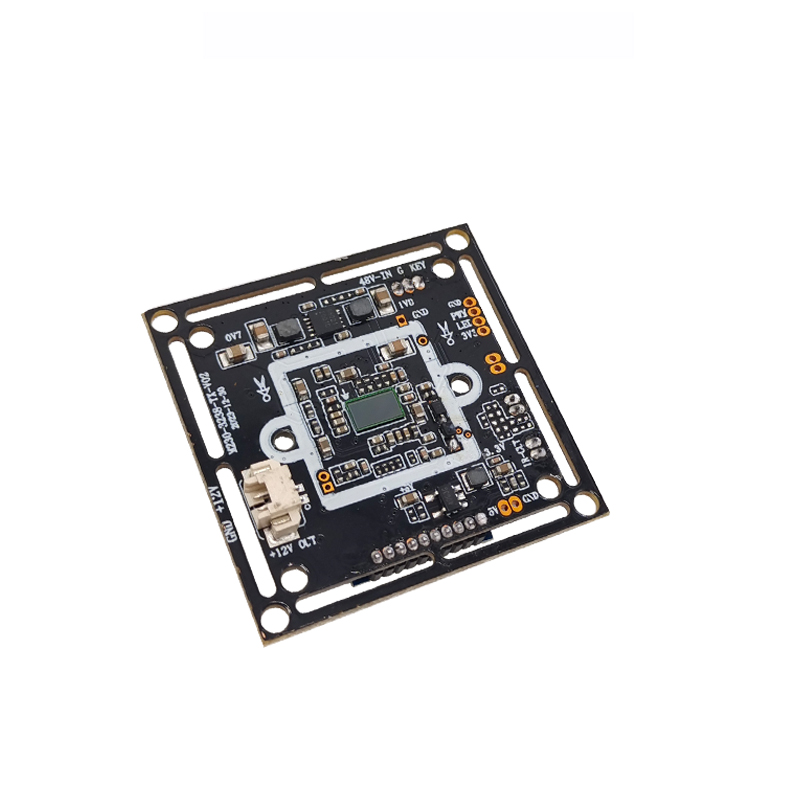

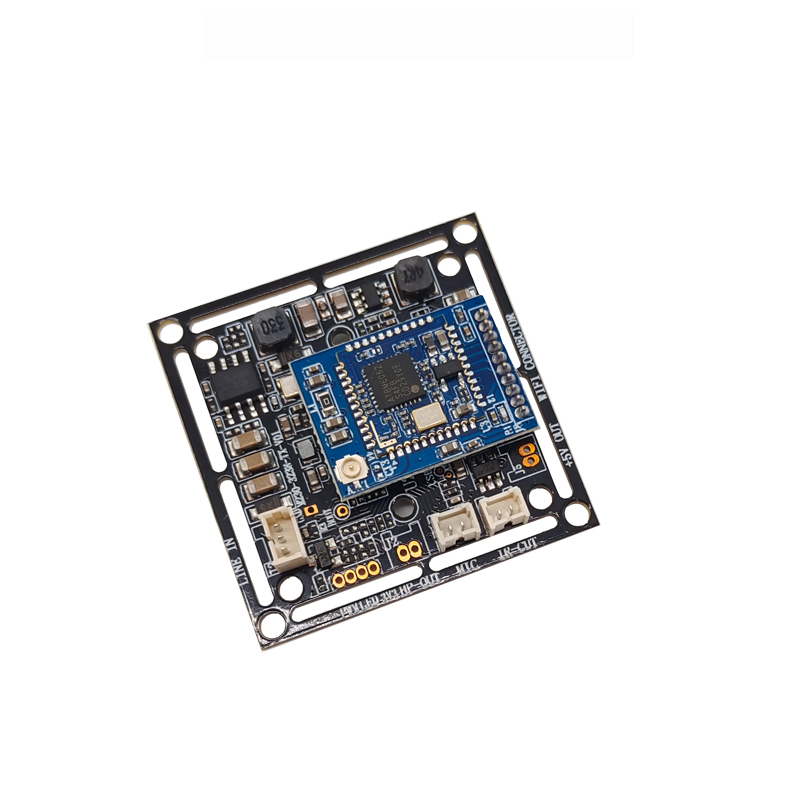

AI Camera Module:

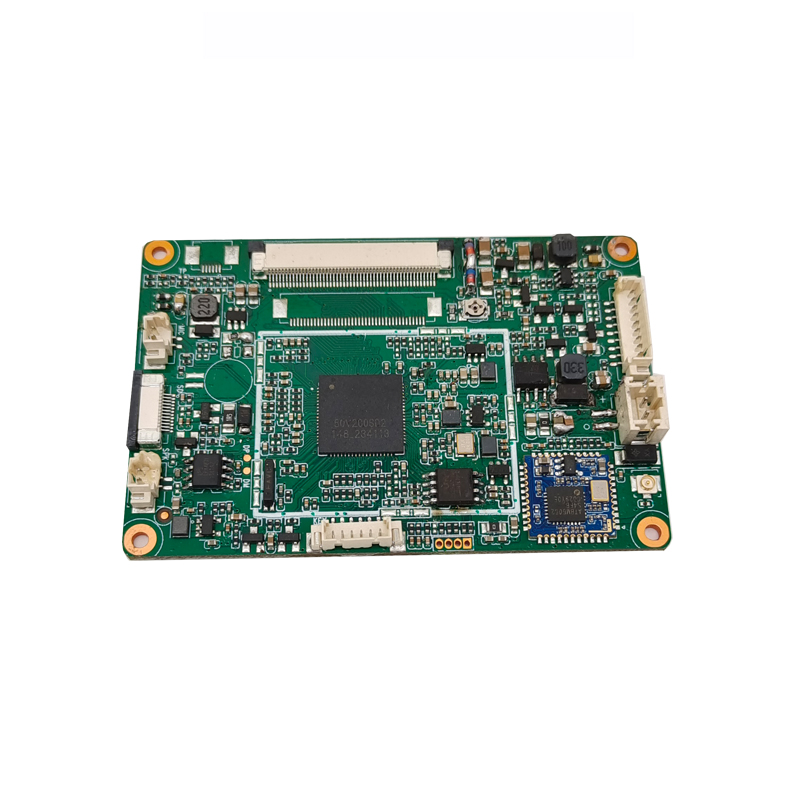

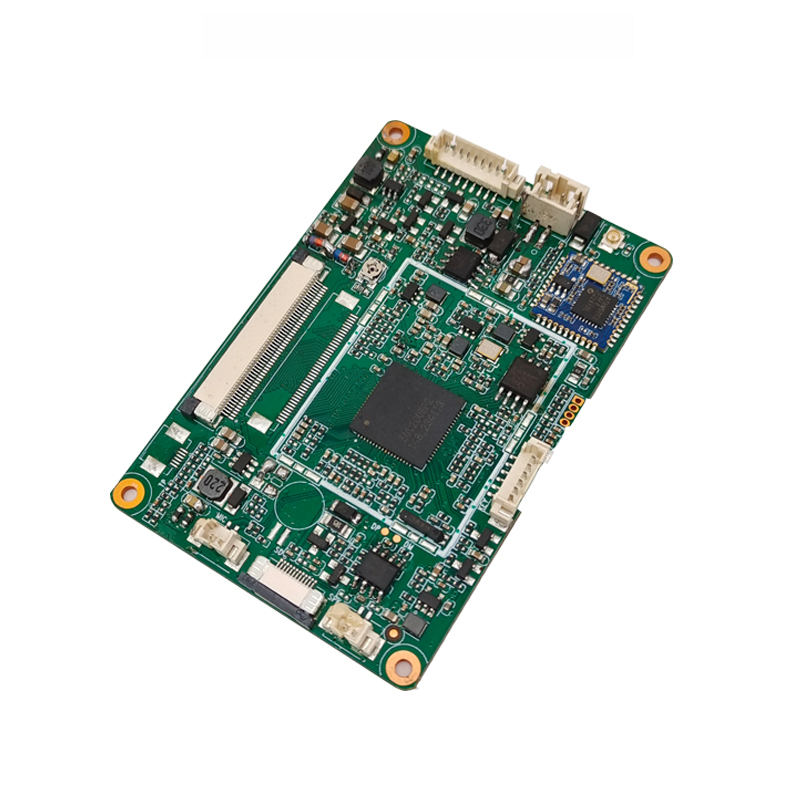

AI Monitor Module:
