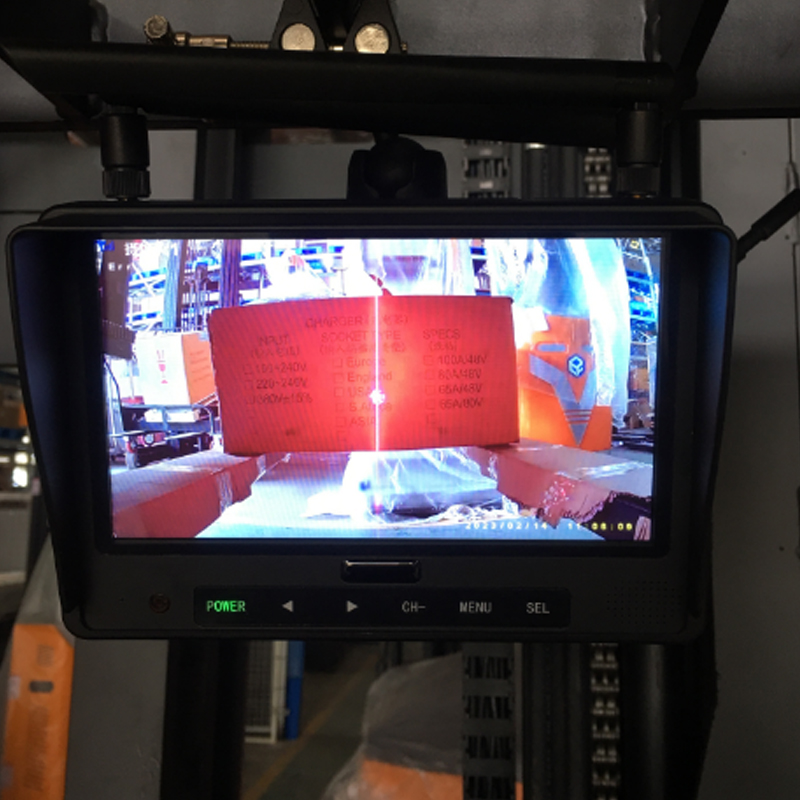

7 Inch 1080P Wireless Waterproof Monitor Camera System with Rechargeable Battery and Magnet Base

SVS-M12084FHD-TW-C28819IL-1080P-B0137B

1. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.

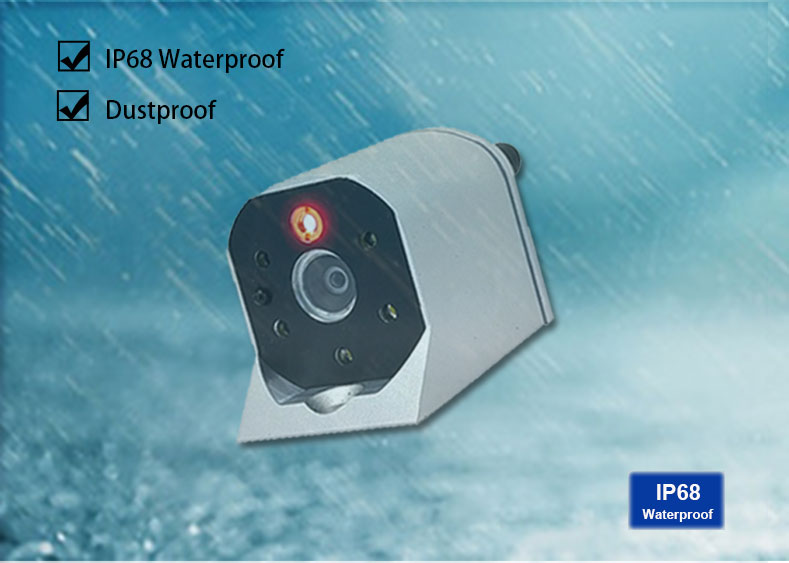

2. Monitor and camera waterproof rating of IP68. Excellent waterproof level can allow monitor and cameras working well outside, even in rainy or foggy days.

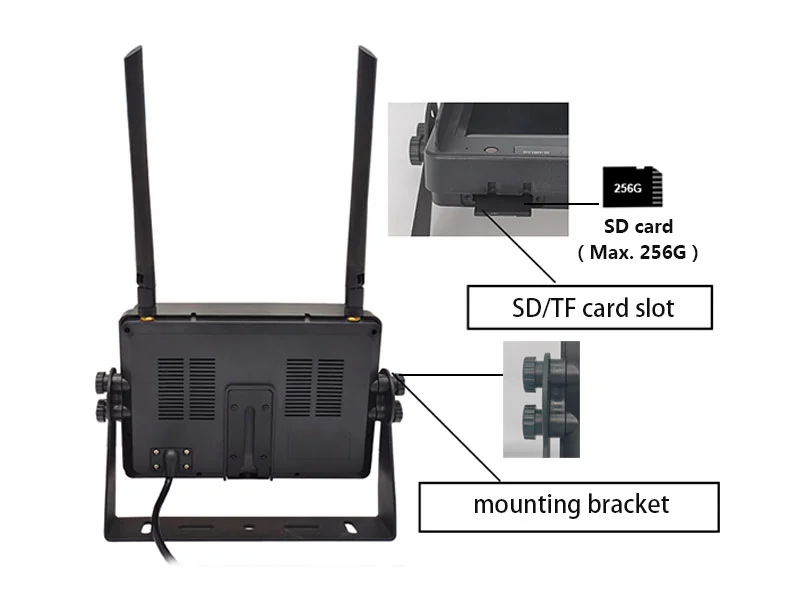

3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.

4. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.

* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *

Delivery

EXW

minimum order

2 sets

Supply Ability

1000sets / Month

Country of Origin

Guangzhou

Stock Time

7-30Day

Quantity

Contact Now

Buy Now

add to cart

7 Inch 1080P Wireless Waterproof Monitor Camera System with Rechargeable Battery and Magnet Base

SVS-M12084FHD-1080P		SVS-C28819IL-1080P
1	7 inch IPS LCD	1	1/2.9"CMOS.
2	Support 4-channel simultaneous recording and video replay.	2	Water resistant housing, Waterproof IP68.

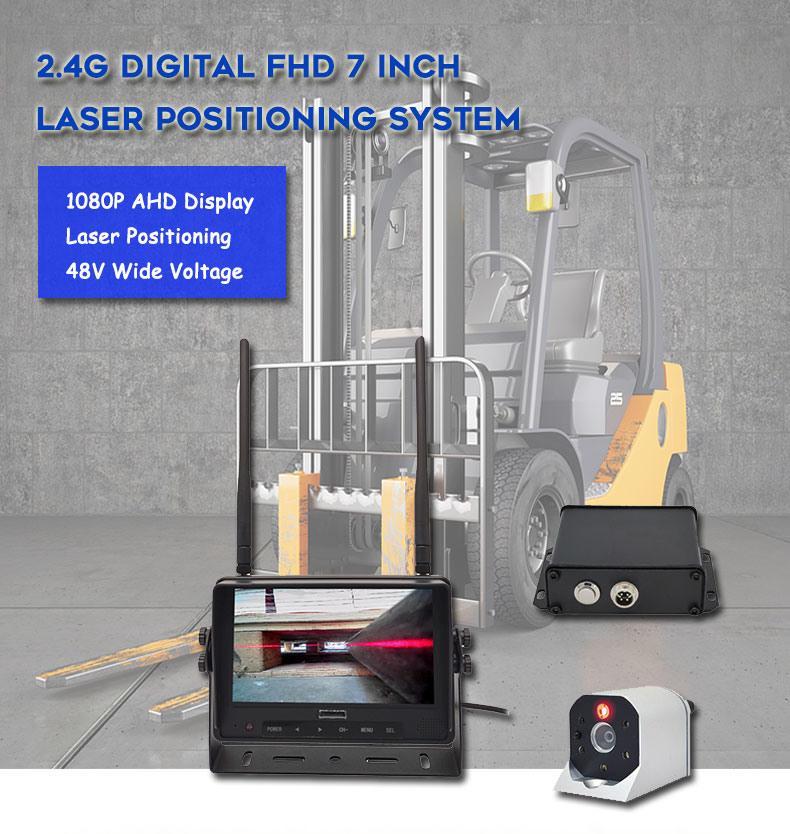

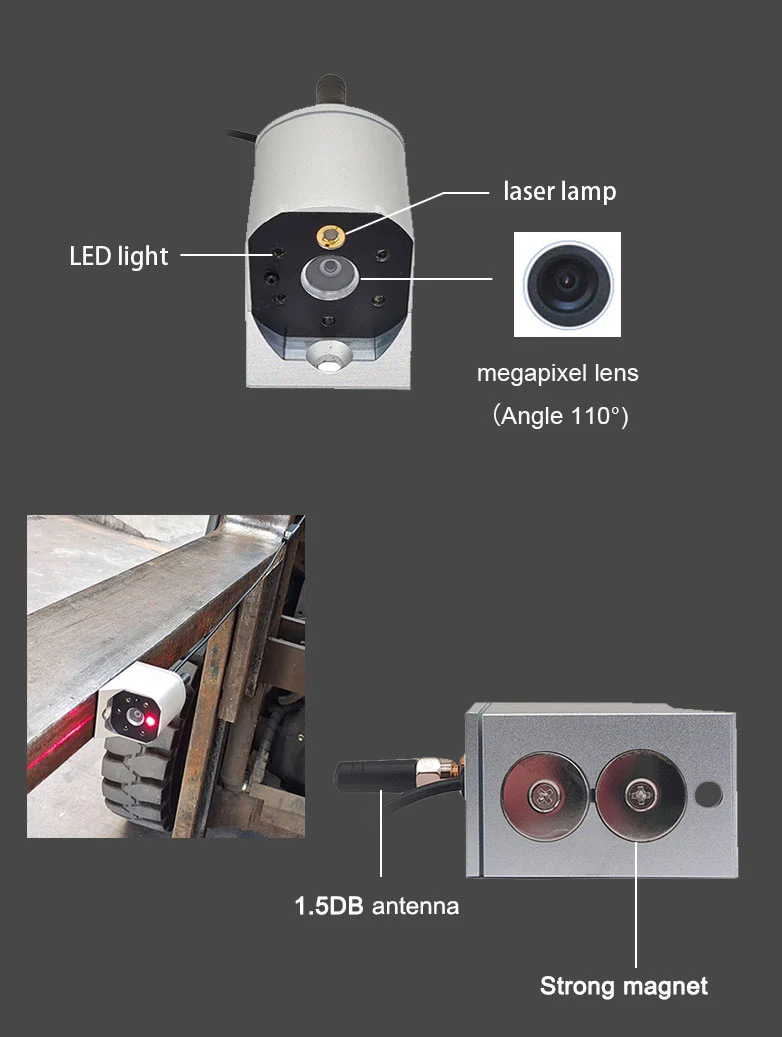

3	Quad display mode, Dual display mode, auto-scan mode, and single display mode available.	3	support laser position function.
4	Storage capability of TF CARD: 256G.

Specification:

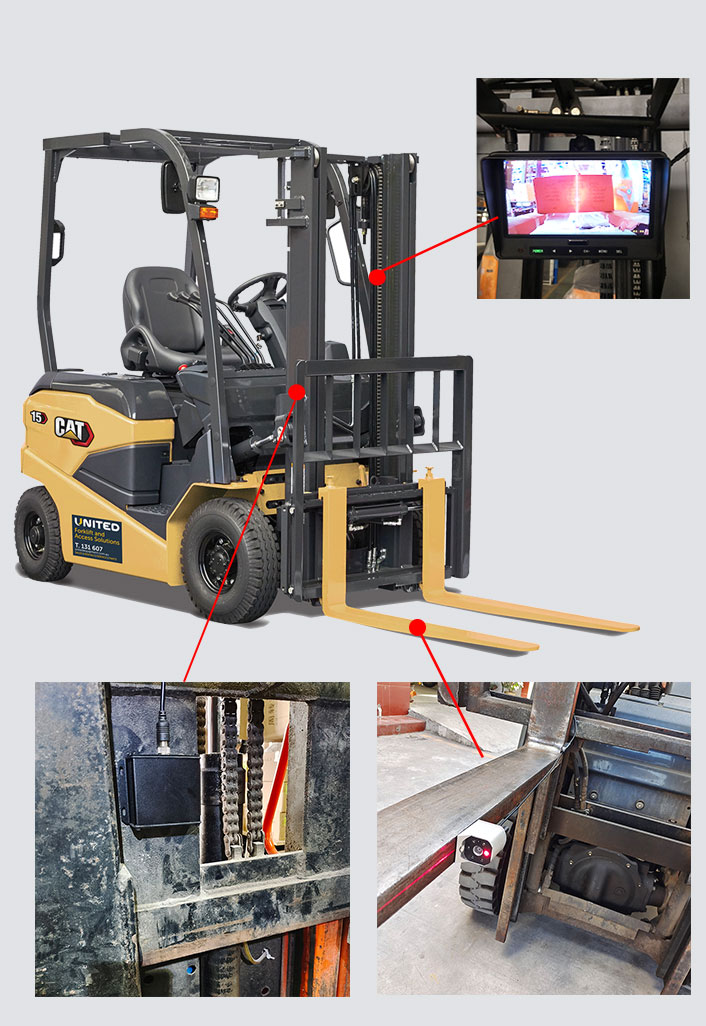

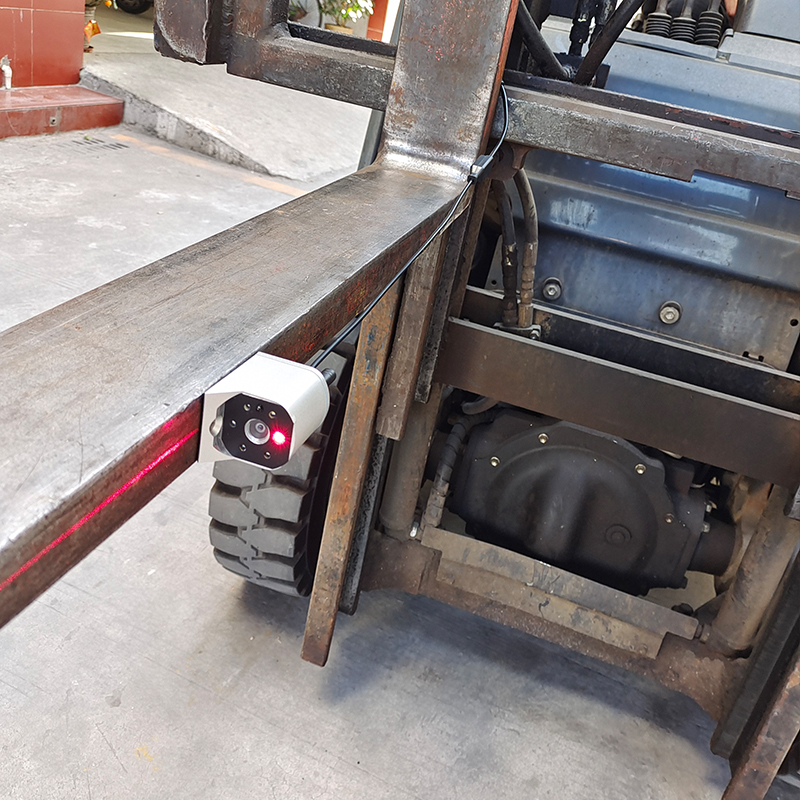

7 Inch 1080P Wireless Waterproof Monitor and Wireless Forklift Camera:

Model	SVS-M12084FHD-TW	Model	SVS-C28819IL-1080P
LCD size	7" IPS LCD	Image Device	1/2.9"CMOS
Resolution	1024 x 3 (RGB) x 600	TV System	PAL / NTSC
Contrast	800:01:00	Array Size	1920*1080
Brightness	800 cd/m²	Sensing Area	2.8um x2.8um
Viewing Angle	U: 80 / D: 85, R/L: 85	Sync. System	Internal
Aspect Ratio	16:09:00	White Balance	Auto
Channel	4 CH	Resolution	1080P

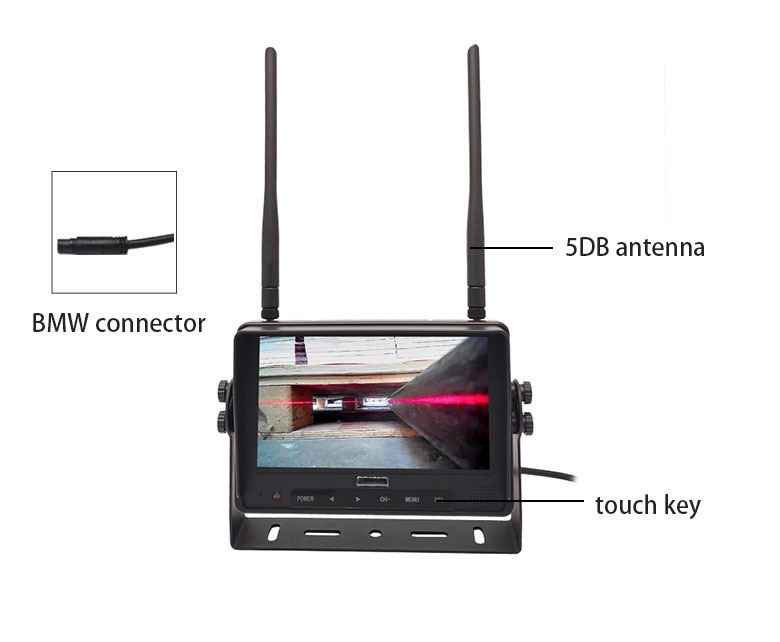

Key	Touch key	Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Operating Frequency	2412 - 2467 MHz	Microphone	No
Transmitting Distance	380 M	Electronic Exposure	Up to 510:1
Recieving Sensitivity	-85 dBm	Laser lamp power	<70mW
Decompression Form	H.264	Laser lamp wavelength	660nm
Emitting Frequency	17 dBm	Laser lamp angle	120°
Communication protocol	P-WIFI	BLC	Auto
Modulation	FSK/GFSK	Communication protocol	P-WIFI
TF Card	Max. 256G	Power Supply	DC 12-48 V
Time Delay	200ms	Operating frequency	2400 -2483.5 MHz
System Format	PAL / NTSC	Transmitting distance	380M
Power Supply	DC 12-48 V	Transmitting speed	12Mbps
Power Consumption	Max. 8W	Decompression form	H.264
Loudspeaker	1.5W/8Ω	Transmit output power	17 dBm
Operating Temperature	-20~+70ºC, RH 90%	Lens	f = 3.6mm
Storage Temperature	-30~+80℃, RH 90%	Lens Angle	110°
Waterproof	IP68	Waterproof	IP68
		Operating Temperature	-20°C~60°C, RH 90% MAX.
		Storage Temperature	-30°C~80°C, RH 90% MAX.
