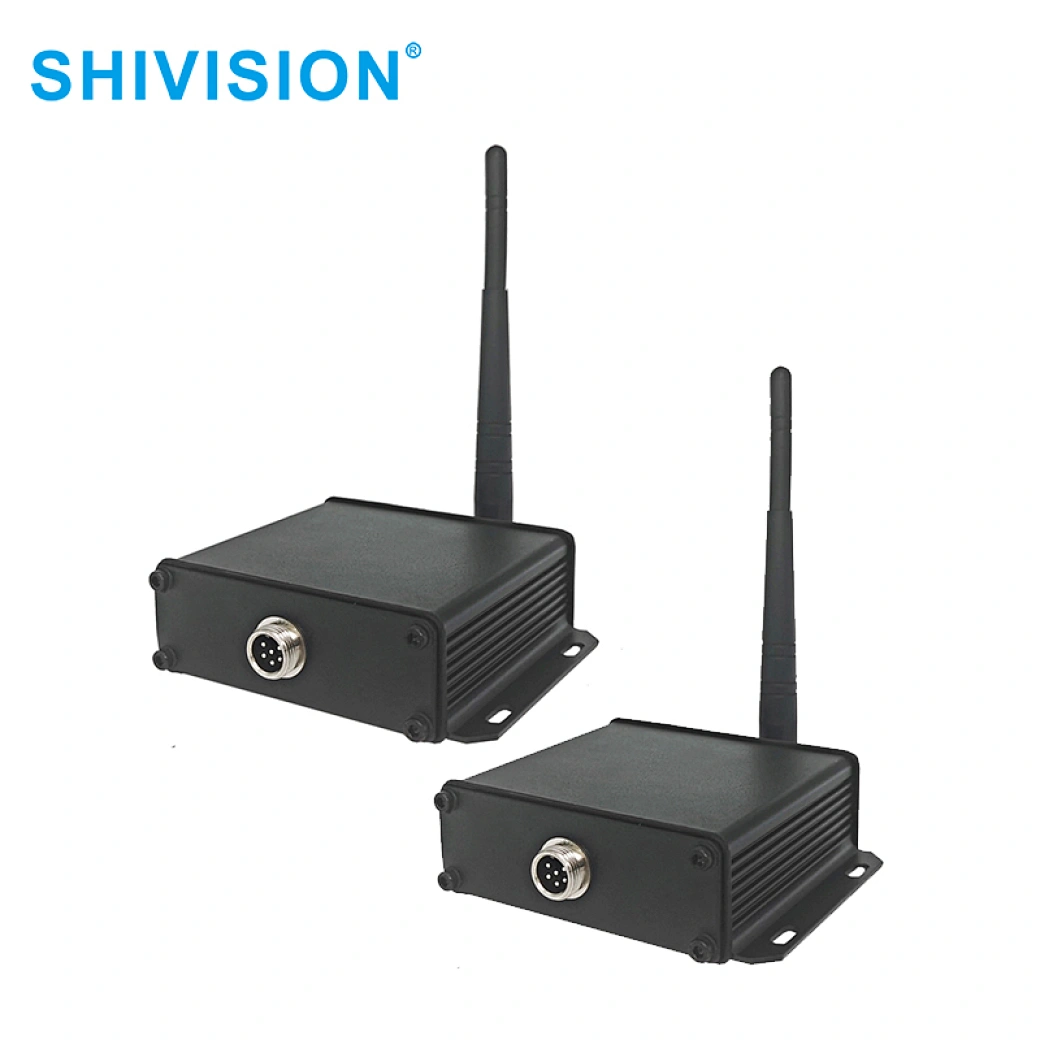

DC12v ahd receiver transmitter box for reverse back up camera monitor

DC12v ahd receiver transmitter box specification:

Power ON＞2S＞2S
Latency120ms120ms
ResolutionPAL:720X1920/NTSC:720X1920/PAL:720X1920/NTSC:720X1920/
Frame Rate NTSC:30f/s/PAL: 25f/sNTSC:30f/s/PAL: 25f/s
Video Codec MPEG4MPEG4
Video in System PAL/NTSCPAL/NTSC
Operation Frequency 2400 ~ 2483.5MHz2400 ~ 2483.5MHz
RF Impedance 50Ω, Typ.50Ω, Typ.
Transmit output power21 dBm21 dBm
Receiving sensitivity－89dBm－89dBm
RF Bit Rate 12Mbps12Mbps
ModulationFSK/GFSKFSK/GFSK
Spread Spectrum FHSSFHSS
Receiver distance≦300M≦300M
Video Output impedance75Ω, Typ.75Ω, Typ.
Video Output Level 1Vp-p, Typ.1Vp-p, Typ.
S/N50dB, Min50dB, Min
Audio Output Level 5mv~0.5Vp-p, Typ.5mv~0.5Vp-p, Typ.
S/N 340Hz ~ 3.4kHz 63dB, Min63dB, Min
Power SupplyDC12-36V/300mADC12-36V/300mA
Current Consumption＞200MA/12V＞200MA/12V
Operating Temperature-20°C~70°C-20°C~70°C
Storing Temperature-30°C~80°C-30°C~80°C
Operating humidityHumidity 90%Humidity 90%
Waterproof ratingIP68KIP68K



ahd receiver transmitter



DC12v ahd receiver transmitter box dimension:

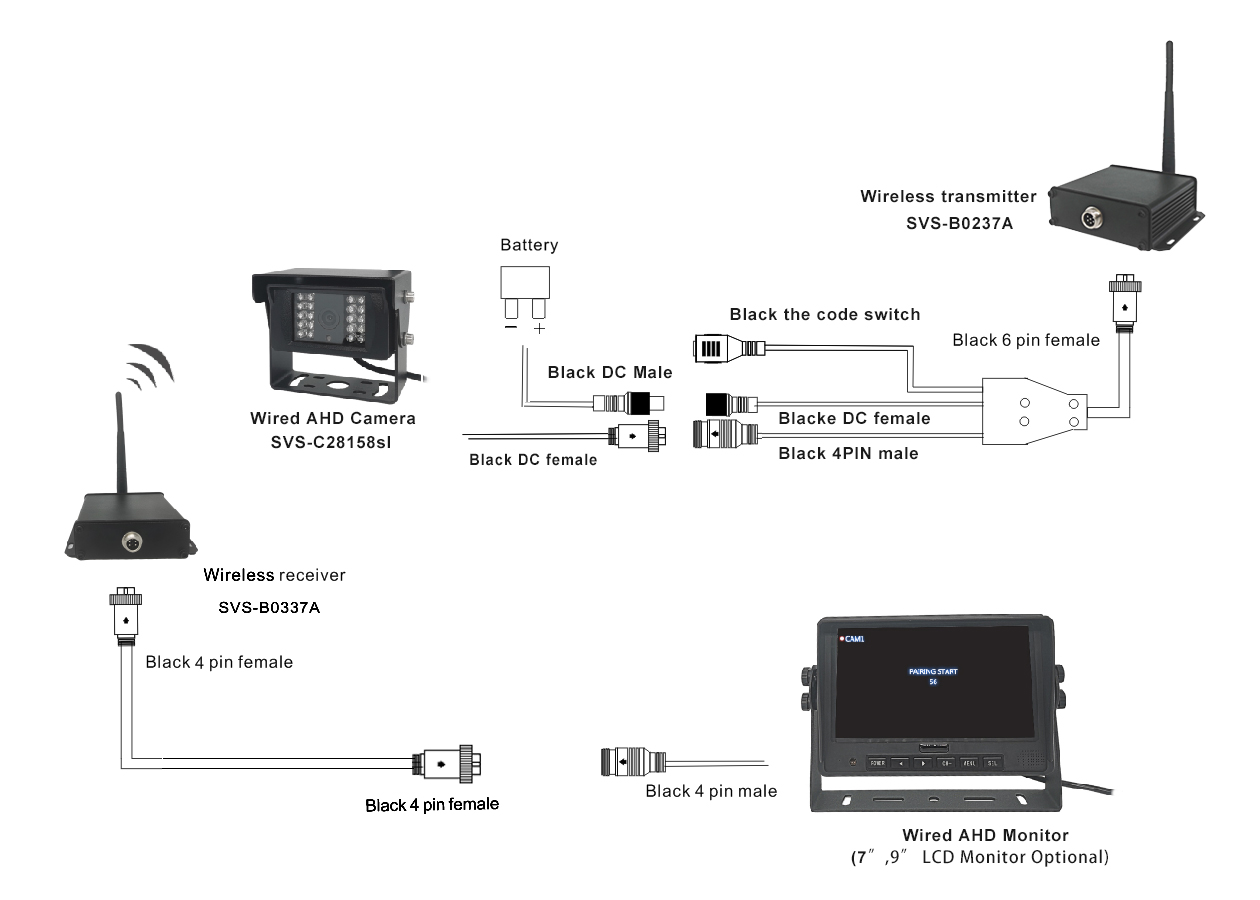

ahd receiver transmitter for rearview monitor and camera
