LCD Monitor 7 Inch AHD Wireless Quad Monitor Lorry Rear View Camera System

SVS-M12074FHD-C28158AI-C2848I-1080P
1. No messy cables. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.

2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.

3. Waterproof cameras. The front and rear cameras are IP69K waterproof, and the side cameras are IP67 waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.

4. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.

5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.

* Standard packing has a monitor, four cameras, and accessories. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
FOB
minimum order
100 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
15-20Day
Quantity
Contact Now
Buy Now
add to cart

LCD Monitor 7 Inch AHD Wireless Quad Monitor Lorry Rear View Camera System

7 Inch AHD Wireless Quad Monitor:

ModelSVS-M12074FHD-TK
LCD size7"  IPS LCD
Resolution1024 x 3 (RGB) x 600
Contrast800:01:00
Brightness800 cd/m²
Viewing AngleU: 80 / D: 85, R/L: 85
Aspect Ratio0.672916667
Channel4 CH
Key
Mechanical keys
Operating Frequency2412 - 2467 MHz
Transmitting Distance380 M
Recieving Sensitivity -85 dBm
Decompression Form H.264
Emitting Frequency17 dBm
Communication protocolP-WIFI
ModulationFSK/GFSK
TF CardMax.  256G
Time Delay 200ms
System Format PAL / NTSC
Power SupplyDC 12-48 V
Power Consumption Max. 8W
Loudspeaker 1.5W/8Ω
Operating Temperature-20~+70ºC, RH 90%
Storage Temperature -30~+80, RH 90%

TFT Monitor 7 Inch Detail:

Wireless AHD Vehicle Camera:

ModelSVS-C28158AI-1080P
Image Device1/2.9"CMOS
TV SystemPAL / NTSC
Array  Size1920*1080
Sensing Area2.8um x2.8um
Sync. SystemInternal
White BalanceAuto
Resolution1080P
Minimum Illumination0.1 Lux (day), 0 Lux (with IR)
MicrophoneYes
Electronic ExposureUp to 510:1
AGCAuto
S/N RatioBetter than 48 dB
Communication protocolP-WIFI
BLCAuto
Current ConsumptionMax. 400 mA/12V
Power SupplyDC 12-48 V
Operating frequency2400 -2483.5 MHz
Transmitting distance380M
Transmitting speed12Mbps
Decompression formH.264
Transmit output power17 dBm
Lensf = 2.8mm
Lens Angle120°
WaterproofIP69K
Operating Temperature -20°C~60°C, RH 90% MAX.
Storage Temperature-30°C~80°C, RH 90% MAX.

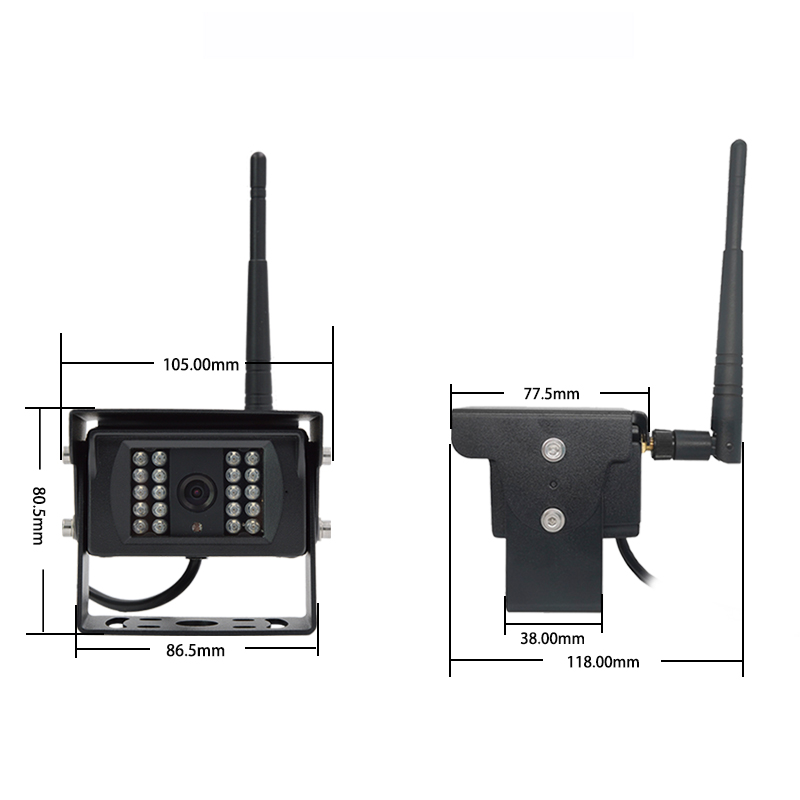

Wireless AHD Vehicle Camera Detail:
