9 Inch Wireless AHD Monitor System 1080P Quad View AHD Monitor with Wireless AHD Vehicle Camera for Agricultural Machinery
SVS-M12094FHD-C28158AI-1080P
1. No messy cables. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.
2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.
3. Waterproof cameras. This camera is IP69K waterproof. If you need higher level such as IP69K, we can change a heavier one for you. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Easier mounted cameras. This camera has magnet mount in the bottom. So you can install it easier anywhere you want.
5. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
6. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.
3. Waterproof cameras. This camera is IP69K waterproof. If you need higher level such as IP69K, we can change a heavier one for you. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Easier mounted cameras. This camera has magnet mount in the bottom. So you can install it easier anywhere you want.
5. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
6. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
FOB
minimum order
100 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
15-20Day
Quantity
9 Inch Wireless AHD Monitor System 1080P Quad View AHD Monitor with Wireless AHD Vehicle Camera for Agricultural Machinery
9 Inch Wireless AHD Monitor:
| Model | SVS-M12094FHD-TK |
| LCD size | 9" IPS LCD |
| Resolution | 1024 x 3 (RGB) x 600 |
| Contrast | 800:01:00 |
| Brightness | 800 cd/m² |
| Viewing Angle | U: 80 / D: 85, R/L: 85 |
| Aspect Ratio | 16:9 |
| Channel | 4 CH |
| Key | Touch key |
| Operating Frequency | 2412 - 2467 MHz |
| Transmitting Distance | 380 M |
| Recieving Sensitivity | -85 dBm |
| Decompression Form | H.264 |
| Emitting Frequency | 17 dBm |
| Communication protocol | P-WIFI |
| Modulation | FSK/GFSK |
| TF Card | Max. 256G |
| Time Delay | 200ms |
| System Format | PAL / NTSC |
| Power Supply | DC 12-48 V |
| Power Consumption | Max. 8W |
| Loudspeaker | 1.5W/8Ω |
| Operating Temperature | -20~+70ºC, RH 90% |
| Storage Temperature | -30~+80℃, RH 90% |

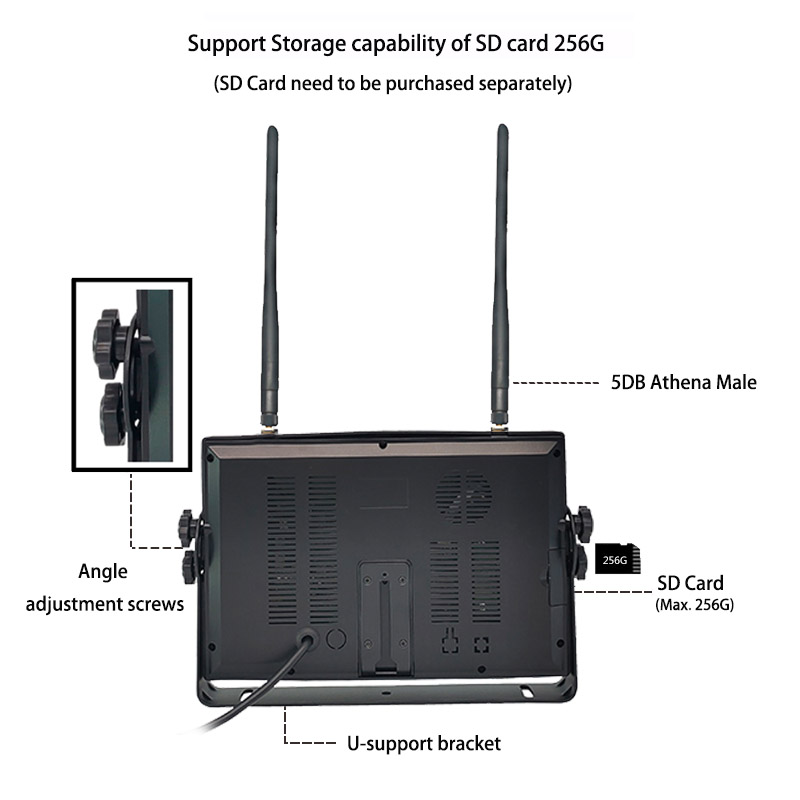

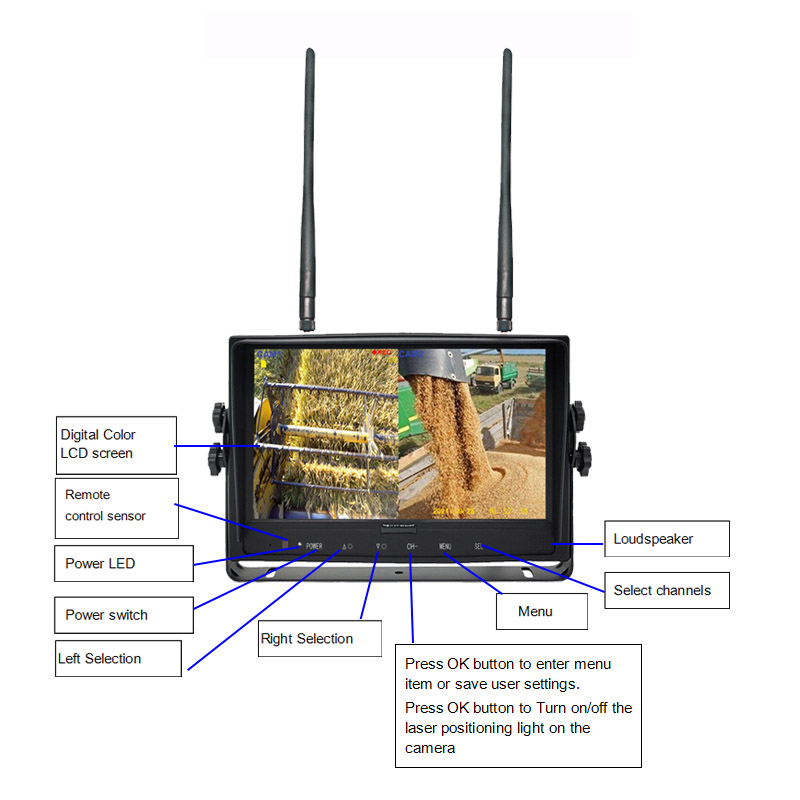

9 Inch 1080P Quad View AHD Monitor Detail:


Wireless AHD Vehicle Camera:
| Model | SVS-C28158AI-1080P |
| Image Device | 1/2.9"CMOS |
| TV System | PAL / NTSC |
| Array Size | 1920*1080 |
| Sensing Area | 2.8um x2.8um |
| Sync. System | Internal |
| White Balance | Auto |
| Resolution | 1080P |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Yes |
| Electronic Exposure | Up to 510:1 |
| AGC | Auto |
| S/N Ratio | Better than 48 dB |
| Communication protocol | P-WIFI |
| BLC | Auto |
| Current Consumption | Max. 400 mA/12V |
| Power Supply | DC 12-48 V |
| Operating frequency | 2400 -2483.5 MHz |
| Transmitting distance | 380M |
| Transmitting speed | 12Mbps |
| Decompression form | H.264 |
| Transmit output power | 17 dBm |
| Lens | f = 2.8mm |
| Lens Angle | 120° |
| Waterproof | IP69K |
| Operating Temperature | -20°C~60°C, RH 90% MAX. |
| Storage Temperature | -30°C~80°C, RH 90% MAX. |

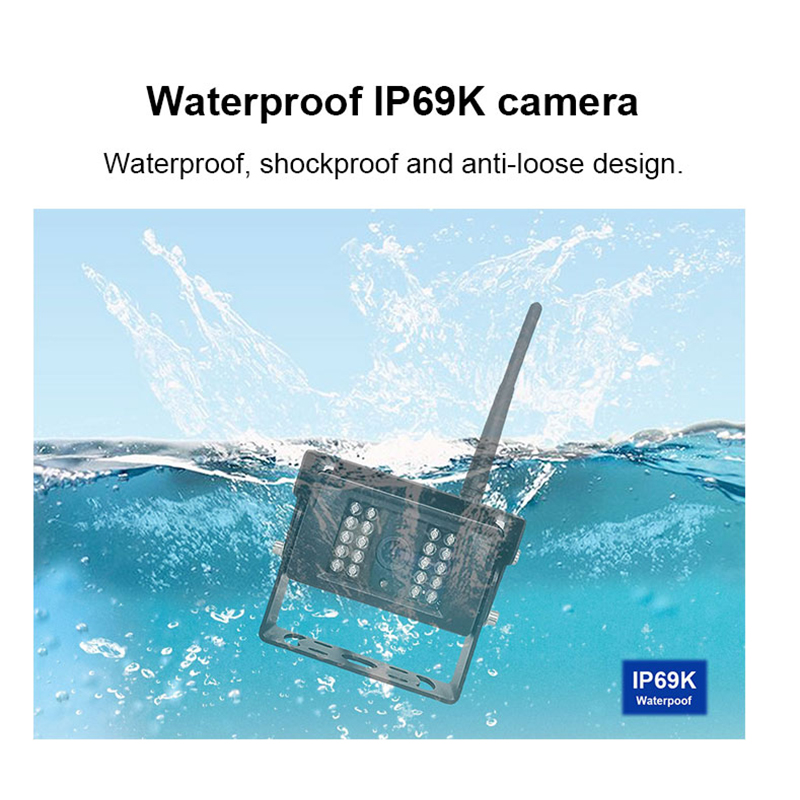

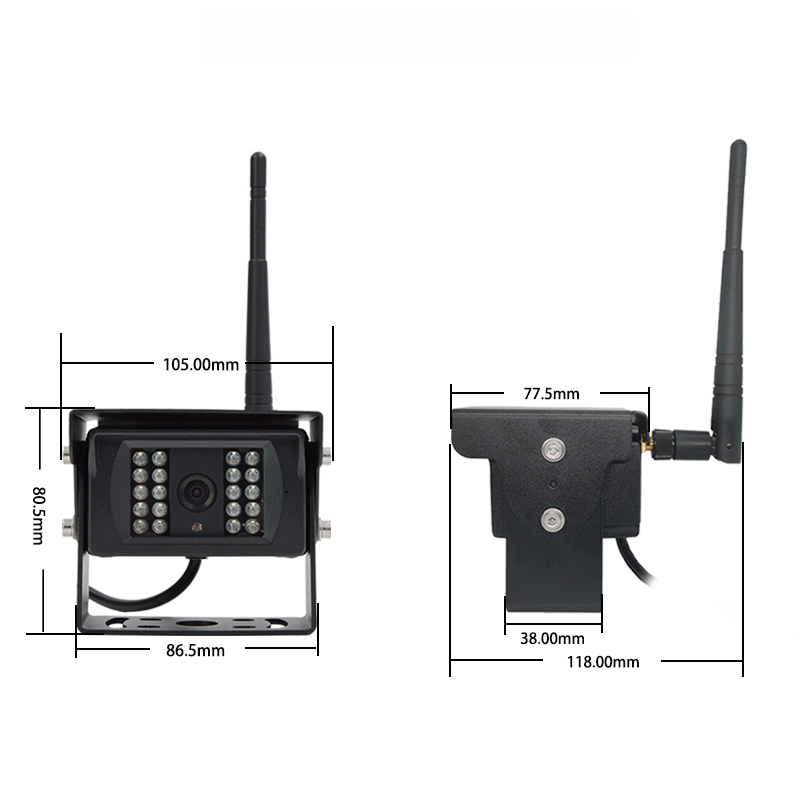

Wireless AHD Vehicle Camera Detail:

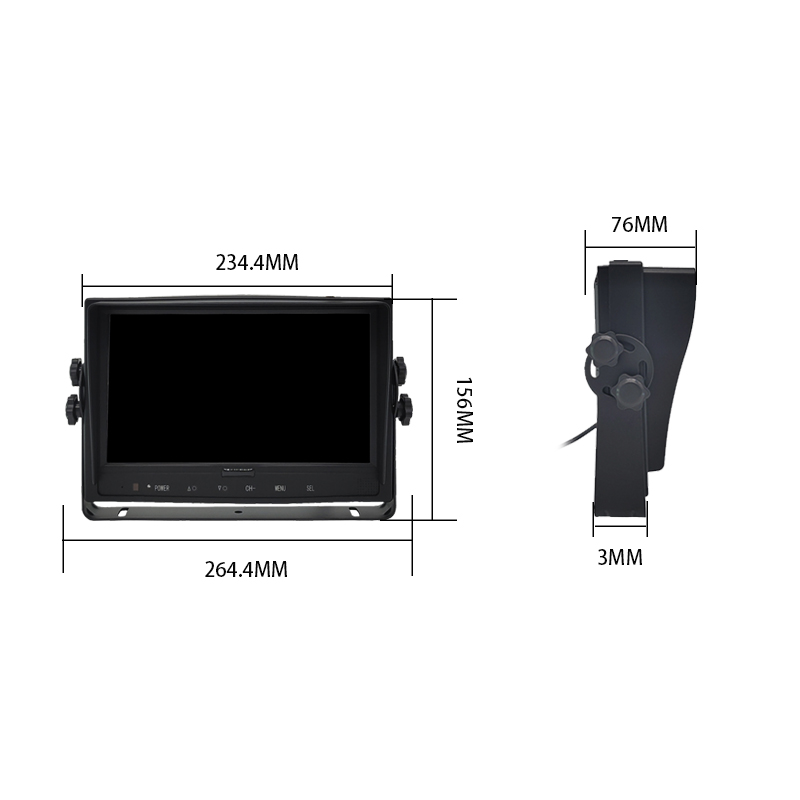

9 inch 1080P Quad View AHD Monitor Dimension:

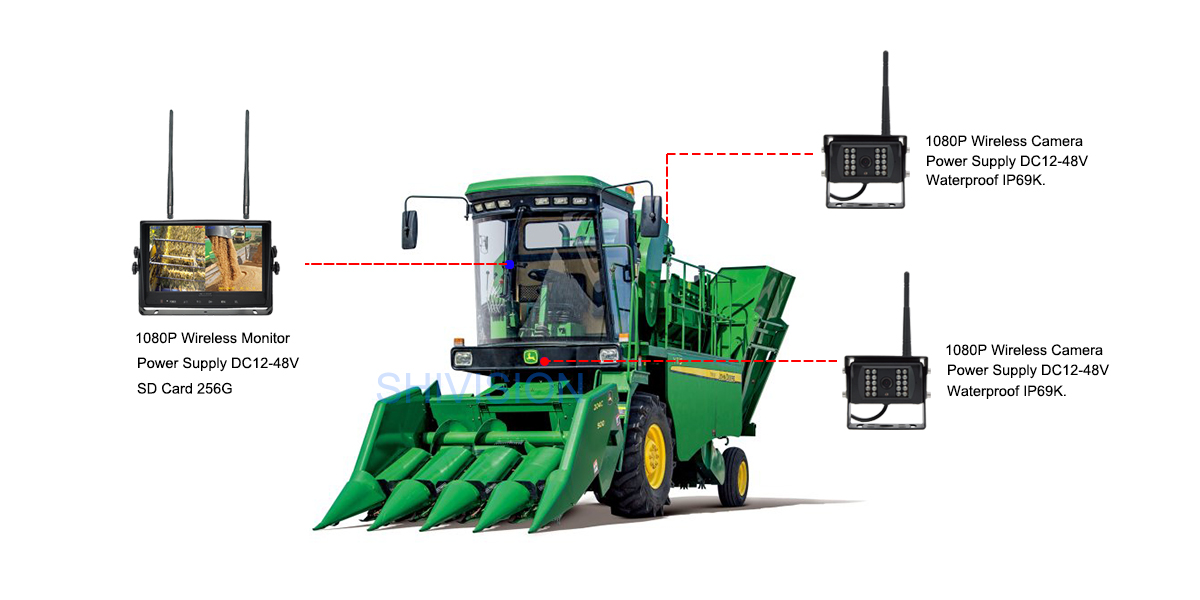

Wireless AHD Vehicle Camera for Agricultural Machinery Application:
