7 Inch Wireless AHD Monitor Rechargeable Battery 1080P HD Fork Mounted Forklift Wireless Camera with Magnetic
SVS-M12084FHD-C28819IL-1080P-B0137D1-B
1. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.
2. The camera is IP68 waterproof rate. Excellent waterproof level can allow camera working well outside, even in rainy or foggy days.
3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. The camera is IP68 waterproof rate. Excellent waterproof level can allow camera working well outside, even in rainy or foggy days.
3. Large memory card for monitor. Max 256G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
7 inch wireless AHD monitor Waterproof 48v wireless forklift camera systems are becoming increasingly popular in the market today. The system are designed to provide users with a clear and reliable view of the area surrounding a forklift, ensuring safe and efficient operation.
7 Inch Waterproof Monitor: Magnetic Mounted Camera:
| SVS-M12084FHD-TW | SVS-C28819IL-1080P | |||
| 1 | 7 inch IPS LCD | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing, Waterproof IP68. | |
| 3 | Quad display mode, Dual display mode, auto-scan mode, and single display mode available. | 3 | support laser position function. | |
| 4 | Storage capability of TF CARD: 256G. | |||
| Model | SVS-M12084FHD-TW | Model | SVS-C28819IL-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 800 cd/m² | Sensing Area | 2.8um x 2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:09:00 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | No |
| Transmitting Distance | 30-380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | Laser lamp power | <70mW |
| Decompression Form | H.264 | Laser lamp wavelength | 660nm |
| Emitting Frequency | 17 dBm | Laser lamp angle | 120° |
| Communication protocol | P-WIFI | BLC | Auto |
| Modulation | FSK/GFSK | Communication protocol | P-WIFI |
| TF Card | Max. 256G | Power Supply | DC 12-48 V |
| Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz |
| System Format | PAL / NTSC | Transmitting distance | 30-380M |
| Power Supply | DC 12-48 V | Transmitting speed | 12Mbps |
| Power Consumption | Max. 8W | Decompression form | H.264 |
| Loudspeaker | 1.5W/8Ω | Transmit output power | 17 dBm |
| Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 3.6mm |
| Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 110° |
| Waterproof | IP67 | Waterproof | IP68 |
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. | ||
7 inch wireless AHD monitor is included in the systems, providing users with a clear and detailed view of the surroundings.
The monitor is designed to work in no lighting conditions, ensuring that the user has a clear view of the forklift's surroundings at all times.

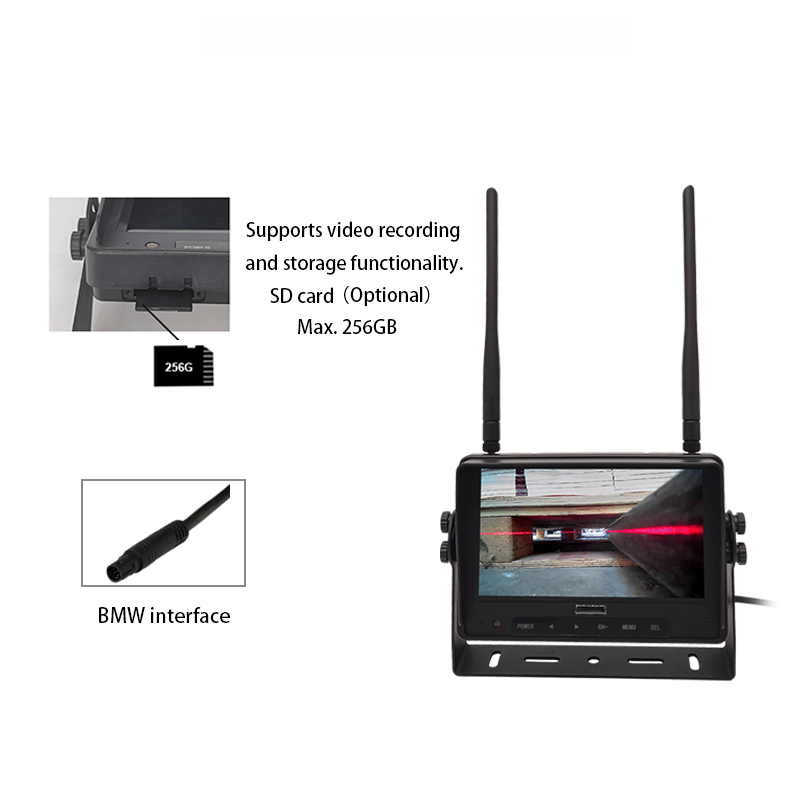

7 Inch Wireless AHD Monitor Product Detail:
Power Supply: DC12-48V.
Waterproof Rate: IP67.
Transmitting Distance: 30-380M
Support 4-channel simultaneous recording and video replay.
Support storage capability of SD CARD: 256G.
Forklift Wireless Camera with Magnetic Detail:
Wireless forklift camera in the systems are specifically designed to withstand the harsh environment of a forklift. They are made with waterproof materials that protect them against moisture, dust, and other contaminants. At the same time, the 1080P laser camera are designed to capture high-quality images that provide precise details of the surroundings. The wireless aspect of these systems makes them even more convenient to use. The cameras are connected to the monitor through a wireless signal, eliminating the need for cables and wires. This also means that the system can be installed quickly and easily, without the need for complicated wiring.
Waterproof, shockproof and anti-loose design.
IP68 waterproof design for Forklift, shell full sealing process, Aluminum alloy material/
laser positioning/no wiring/compact appearance/ easy to install with magnetic magnets/stable anti-interference
signal transmission.

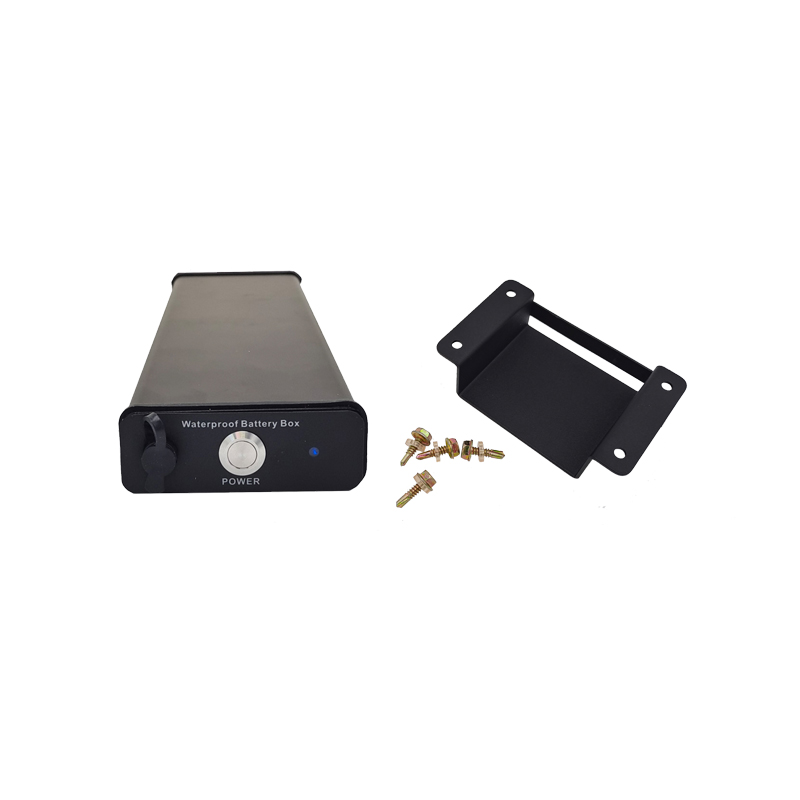

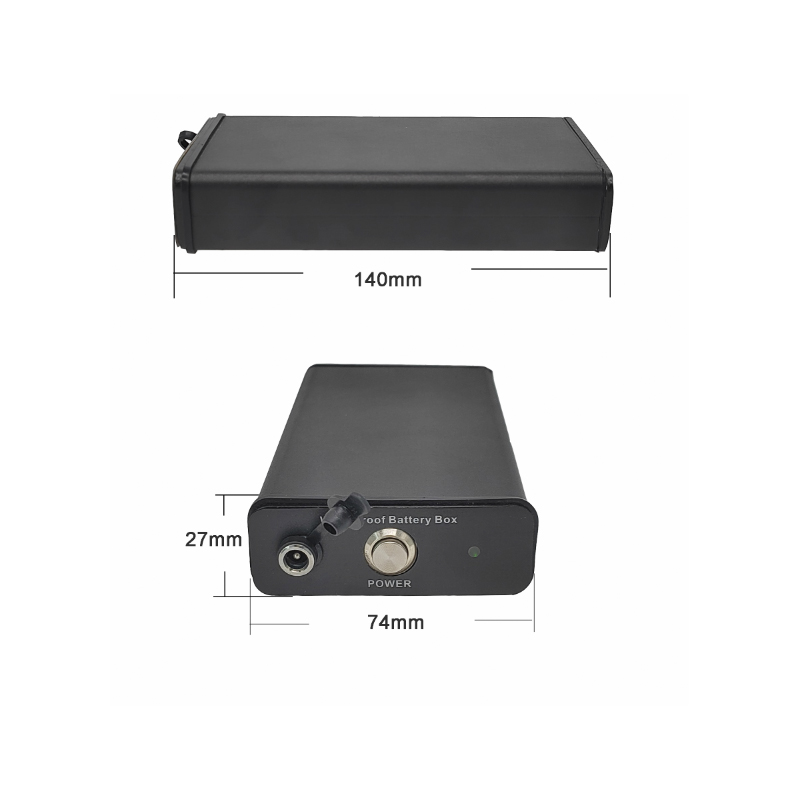

Rechargeable Battery:
Overall, 7 Inch Wireless AHD Monitor Waterproof 48v 1080P HD Forklift Camera System a must-have for anyone who operates a forklift. They provide a clear and reliable view of the surroundings, ensuring safe and efficient operation of the forklift.
