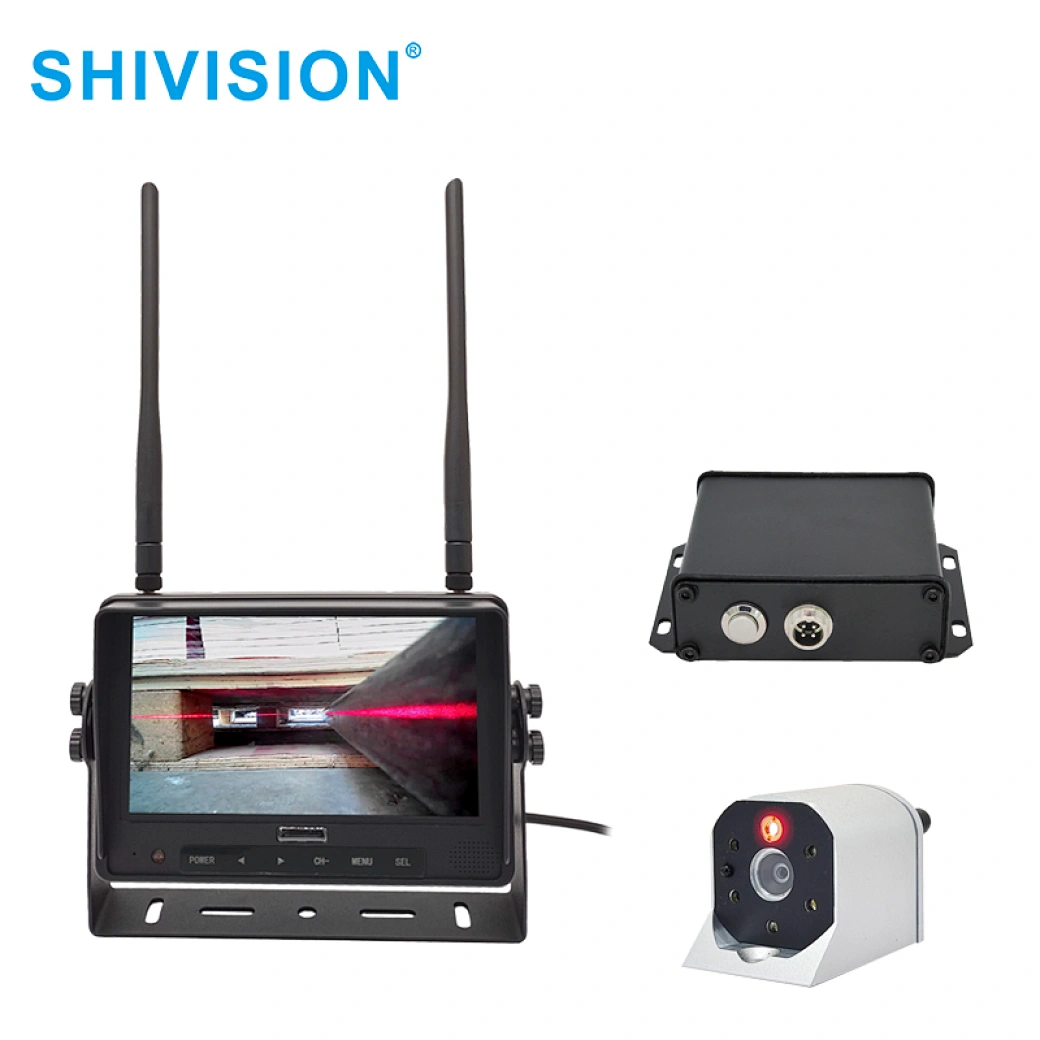

7 Inch Wireless AHD Monitor 1080P Waterproof Forklift View Rearview Vehicle Camera System
SVS-M12084FHD-TW-C28819IL-1080P-B0137B
1. No messy cables. Connection between monitor and camera is without any cable. So that you can mount the whole system easier in your vehicle.
2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.
3. Waterproof cameras. This camera is IP69K waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Large memory card for monitor. Max 128G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.
3. Waterproof cameras. This camera is IP69K waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Large memory card for monitor. Max 128G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
7 Inch Wireless AHD Monitor 1080P Waterproof Wireless Forklift Camera
Rearview Camera System Vehicle Front View Camera
| SVS-M12084FHD-1080P | SVS-C28819IL-1080P | |||
| 1 | 7 inch IPS LCD | 1 | 1/2.9"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing, Waterproof IP68. | |
| 3 | Quad display mode, Dual display mode, auto-scan mode, and single display mode available. | 3 | support laser position function. | |
| 4 | Storage capability of TF CARD: 256G. | |||
Specification:
| Model | SVS-M12084FHD-TW | Model | SVS-C28819IL-1080P |
| LCD size | 7" IPS LCD | Image Device | 1/2.9"CMOS |
| Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC |
| Contrast | 800:01:00 | Array Size | 1920*1080 |
| Brightness | 450 cd/m² | Sensing Area | 2.8um x2.8um |
| Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal |
| Aspect Ratio | 16:09:00 | White Balance | Auto |
| Channel | 4 CH | Resolution | 1080P |
| Key | Touch key | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Operating Frequency | 2412 - 2467 MHz | Microphone | Yes |
| Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 |
| Recieving Sensitivity | -85 dBm | Laser lamp power | <70mW |
| Decompression Form | H.264 | Laser lamp wavelength | 660nm |
| Emitting Frequency | 17 dBm | Laser lamp angle | 120° |
| Communication protocol | P-WIFI | Electronic Exposure | Up to 510:1 |
| Modulation | FSK/GFSK | BLC | Auto |
| TF Card | Max. 256G | Communication protocol | P-WIFI |
| Time Delay | 200ms | Power Supply | DC 12-48 V |
| System Format | PAL / NTSC | Operating frequency | 2400 -2483.5 MHz |
| Power Supply | DC 12-48 V | Transmitting distance | 380M |
| Power Consumption | Max. 8W | Transmitting speed | 12Mbps |
| Loudspeaker | 1.5W/8Ω | Decompression form | H.264 |
| Operating Temperature | -20~+70ºC, RH 90% | Transmit output power | 17 dBm |
| Storage Temperature | -30~+80℃, RH 90% | Lens | f = 3.6mm |
| Waterproof | IP68 | Lens Angle | 110° |
| Waterproof | IP68 | ||
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. |
Product Detail
7" IPS LCD.
Waterproof rate: IP68.
Storage capability of TF CARD: 256G.
Support 4-channel simultaneous recording and video replay.
Waterproof Wireless Forklift Camera System
IP68 waterproof design for forklift, shell full sealing process, Aluminum alloy material/
laser positioning/no wiring/compact appearance/ easy installation/stable anti-interference
signal transmission.
