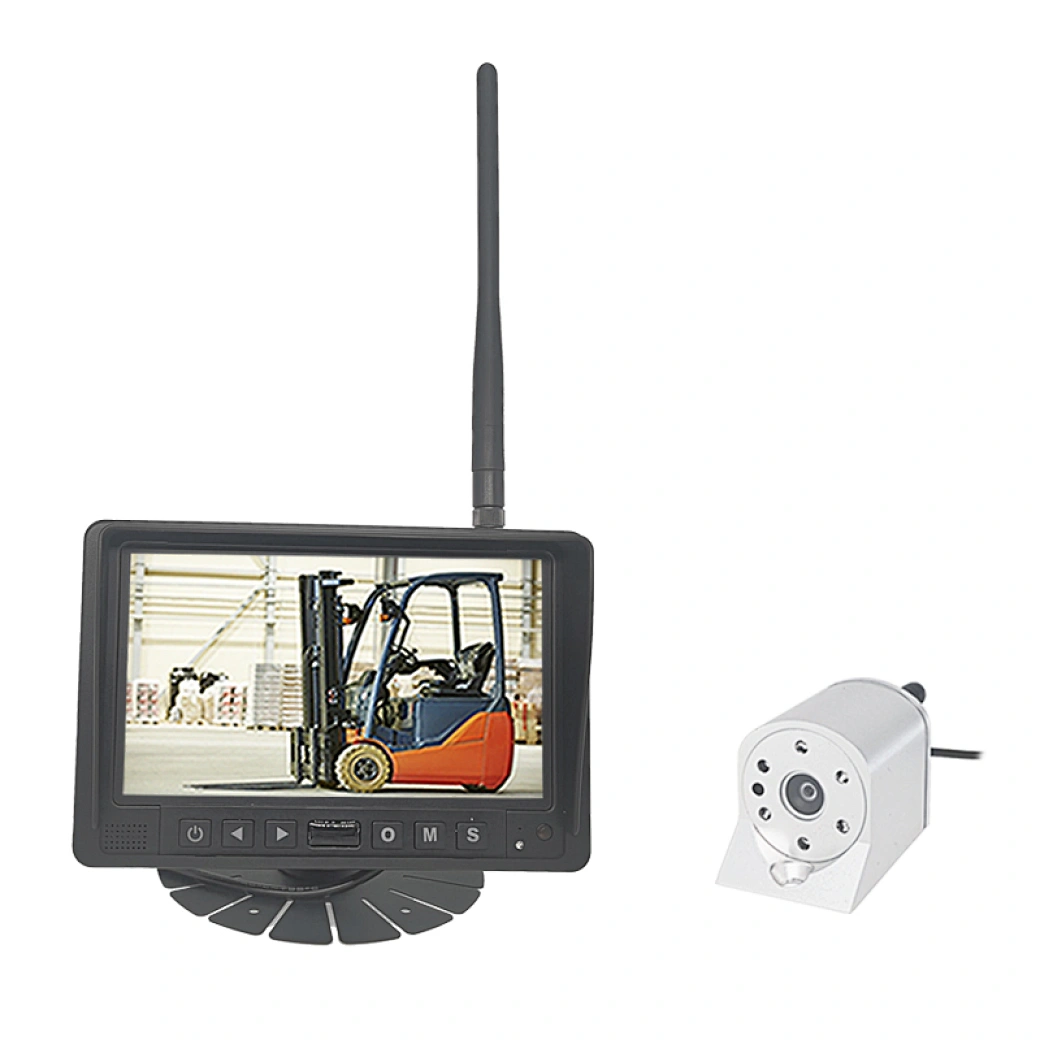

7 inch monitor display screen rechargeable battery pack 12v for forklift camera kit

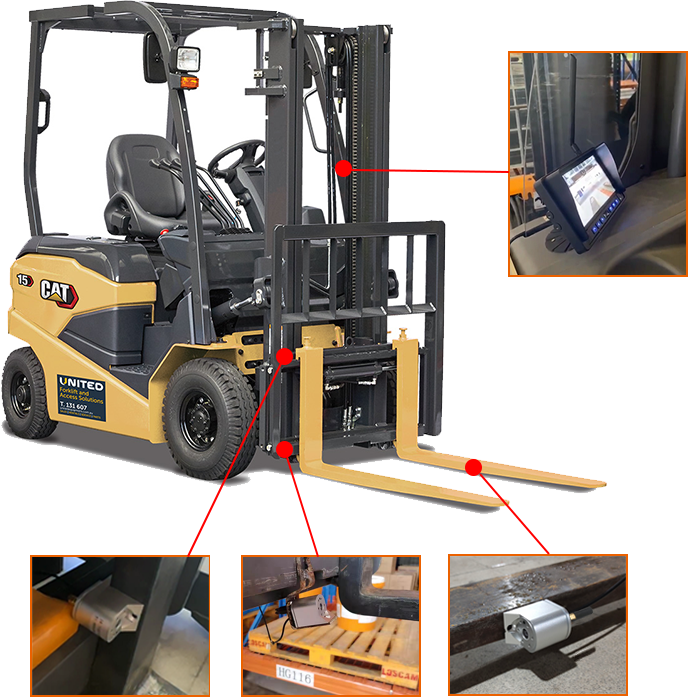

2. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as yours safety.

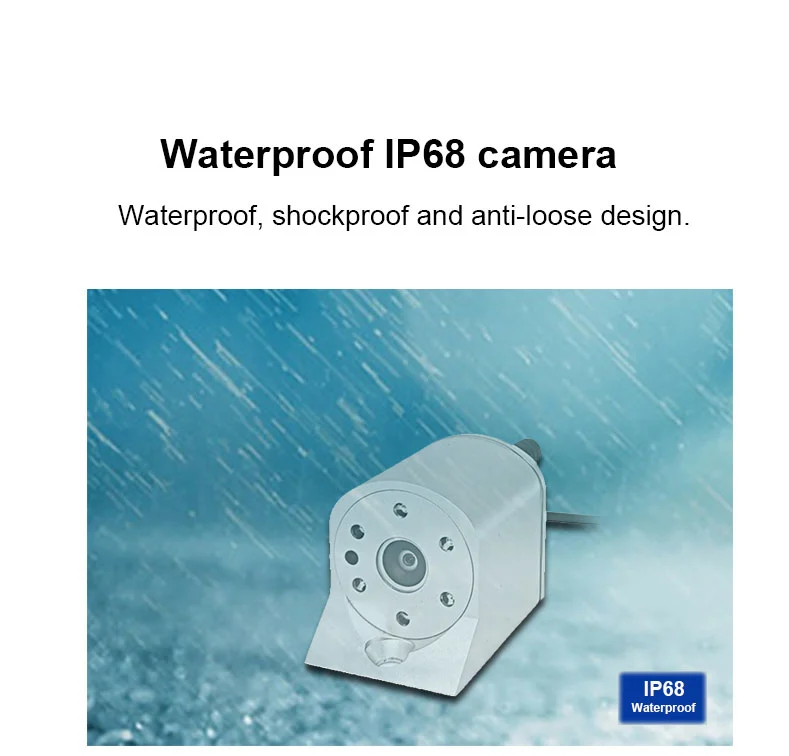

3. Waterproof cameras. This camera is IP69K waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
4. Large memory card for monitor. Max 128G storage capacity protects the driver from unnecessary trouble. Meanwhile, the recording helps to manager the fleet if need.
5. 12 months quality guarantee. Long warranty provides more service for you. R&D team here offer any question you want to know.
* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
7 inch monitor display screen forklift backup camera features:
| SVS-M12074HD | SVS-C28818 | |||
| 1 | Automatic pairing capability. | 1 | 1/3.7"CMOS. | |
| 2 | Support 4-channel simultaneous recording and video replay. | 2 | Water resistant housing. | |
| 3 | Quad display mode,Dual display mode, auto-scan mode, and single display mode available. | 3 | Nightvision distance: approx. 5-10m. | |
| 4 | Storage capability of TF CARD: 128G. | |||
7 inch monitor display screen:
LCD: size7"
Resolution: 1024 x 3 (RGB) x 600
Contrast: 800:01:00
Brightness: 450 cd/m²
Viewing AngleU: 80 / D: 85, R/L: 85
Aspect Ratio: 16:09
Channel: 4 channels
Operating Frequency: 2412 - 2467 MHz
Transmitting Distance: 30-300 M
Receiving Sensitivity: -85 dBm
Decompression Form: H.264
Emitting Frequency: 17 dBm
Modulation: DSSS

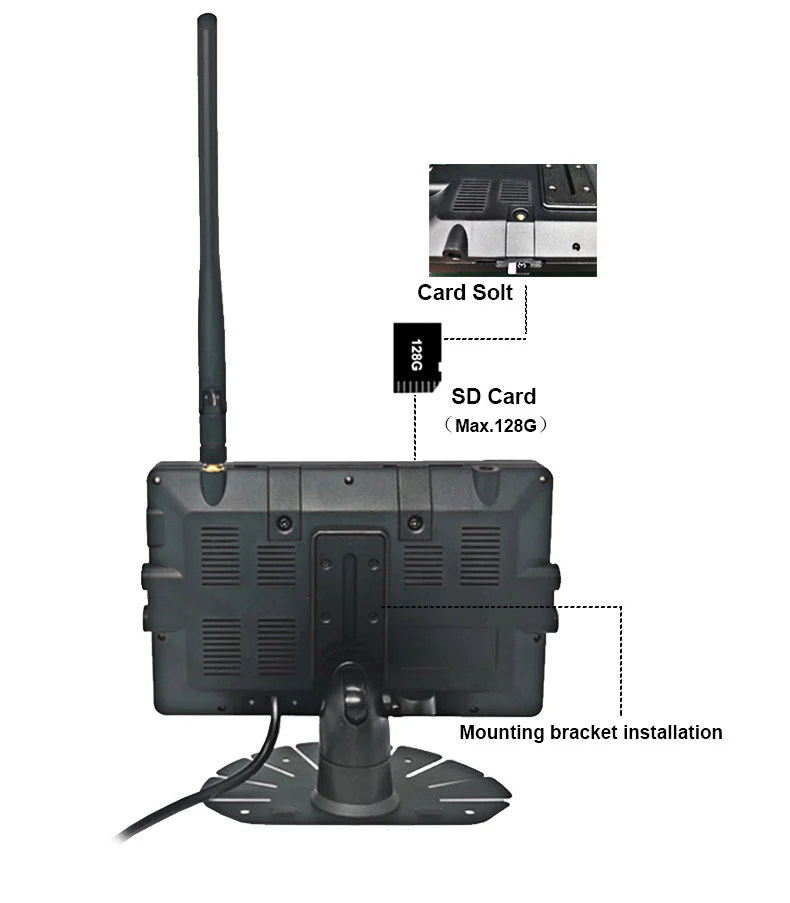

TF CardMax.: 128G
Time Delay: 200ms
System Format: PAL / NTSC
Power Consumption: Max. 8W
Loudspeaker: 1.5W/8Ω
Operating Temperature: -20~+70ºC, RH 90%
Storage Temperature: -30~+80℃, RH 90%

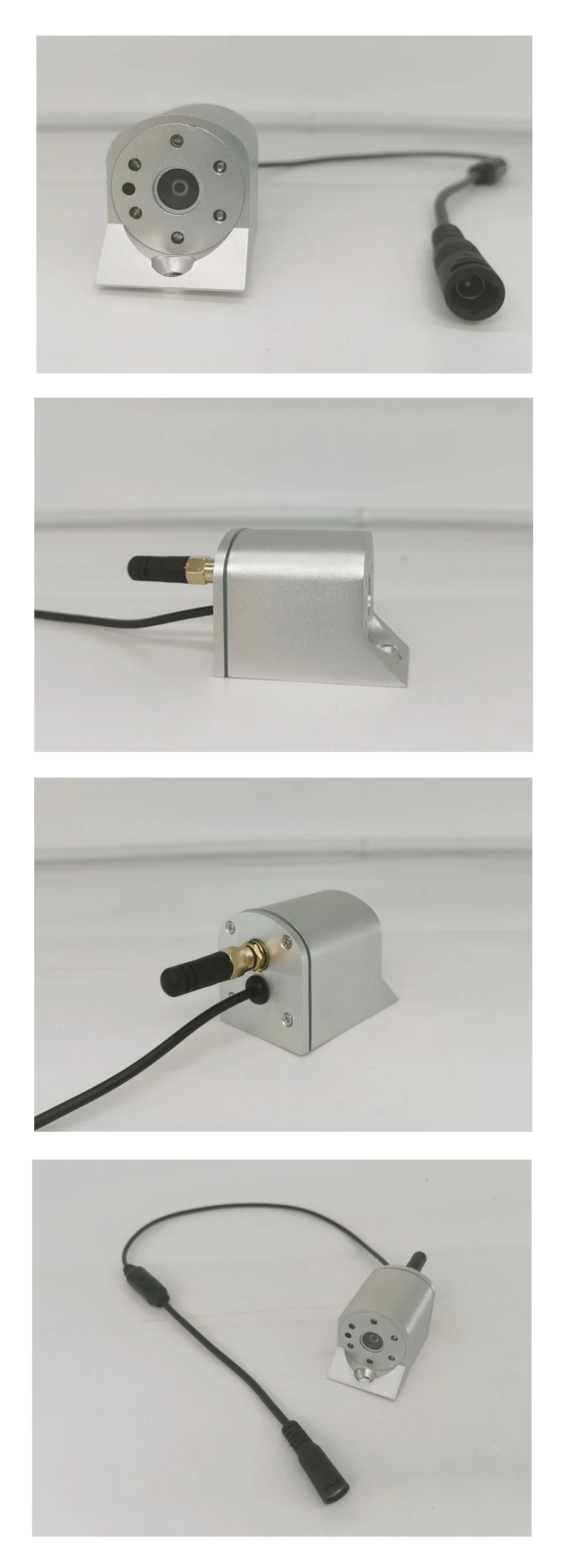

Forklift backup camera:
Image Device: 1/3.7"CMOS
TV System: PAL / NTSC
Array Size: 1280*720
Sensing Area: 3mm (H) ×3mm (V)
Scan Mode: Progressive
Sync. System: Internal
Resolution: 1.0MP
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Yes
Electronic Exposure: Up to 510:1
AGC: Auto
S/N Ratio: Better than 48 dB
White Balance: Auto
BLC: Auto
Current Consumption: Max. 400 mA/12V
Power Supply: DC 12-55 V
Operating frequency: 2400 -2483.5 MHz
Transmitting distance: 30-100M
Transmitting speed: 12Mbps
Decompression form: H.264
Transmit output power: 17 dBm
Lens: f = 3.6mm
Lens Angle: 100°
Waterproof: IP68
Operating Temperature: -20°C~60°C, RH 90% MAX.
Storage Temperature: -30°C~80°C, RH 90% MAX.
Product Detail
7 inch monitor display screen
