7 inch rear view camera screen
7 inch rear view camera screen
7 Inch IPS LCD Monitor
7 Inch IPS LCD Monitor
Wireless Forklift Camera

7 Inch IPS Monitors Video Parking System Rechargeable Battery Wireless Forklift Camera

SVS-M12074FHD-C2819I-1080P
1. The display can be powered from the cab, the camera is powered by the on-board mobile power supply, and the display and camera do not need to be connected by an extension cable before. The whole system is easy to install.

2. Camera support IP68 waterproof. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.

4. Large memory card for monitor. storage capability of SD card 256G, support 4-channel simultaneous recording and video replay.

5. 12 months quality guarantee. Long warranty provides more service for you.

* Standard packing has a monitor, a camera, and accessories. More cameras can be added in different package. *
* If you want to know more about it, please feel free to send an inquiry. We will reply in 12 hours. *
Delivery
EXW
minimum order
2 sets
Supply Ability
1000sets / Month
Country of Origin
Guangzhou
Stock Time
7-30Day
Quantity
Contact Now
Buy Now
add to cart
7 Inch IPS Monitors Video Parking System Rechargeable Battery Wireless Forklift Camera

7 Inch IPS LCD Monitor Display System Features:

SVS-M12074FHDSVS-C2819I-1080P
17"  IPS LCD, 1024 x 3 (RGB) x 600 11/2.9"CMOS.
2Support 4-channel simultaneous recording and video replay. 2Operating voltage range: DC12-48V.
3Quad display mode,Dual display mode, auto-scan mode, and single display mode available.3Nightvision distance: approx. 3-5 m.
4Storage capability of SD CARD: 256G.

Wireless 7 Inch IPS LCD Monitor Display DC12v Rechargeable Battery Pack

Forklift Camera System specification:

ModelSVS-M12074FHDModelSVS-C2819I-1080P
LCD size7"  IPS LCDImage Device1/2.9"CMOS
Resolution1024 x 3 (RGB) x 600 TV SystemPAL / NTSC
Contrast800:01:00Array  Size1920*1080
Brightness800 cd/m²Sensing Area2.8um x2.8um
Viewing AngleU: 80 / D: 85, R/L: 85Sync. SystemInternal
Aspect Ratio16:09:00White BalanceAuto
Channel4 CHResolution1080P
KeyPress-buttonMinimum Illumination0.1 Lux (day), 0 Lux (with IR)
Operating Frequency2412 - 2467 MHzMicrophoneNo
Transmitting Distance380 MElectronic ExposureUp to 510:1
Recieving Sensitivity -85 dBmAGCAuto
Decompression Form H.264S/N RatioBetter than 48 dB
Emitting Frequency17 dBmCommunication protocolP-WIFI
Communication protocolP-WIFIBLCAuto
ModulationFSK/GFSKCurrent ConsumptionMax. 400 mA/12V
TF CardMax.  256GPower SupplyDC 12-48 V
Time Delay 200msOperating frequency2400 -2483.5 MHz
System Format PAL / NTSCTransmitting distance 380M
Power SupplyDC 12-48 VTransmitting speed12Mbps
Power Consumption Max. 8WDecompression formH.264
Loudspeaker 1.5W/8ΩTransmit output power17 dBm
Operating Temperature-20~+70ºC, RH 90%Lensf = 2.8mm
Storage Temperature -30~+80℃, RH 90%Lens Angle120°
Operating Temperature -20°C~60°C, RH 90% MAX.
Storage Temperature-30°C~80°C, RH 90% MAX.

7 inch rear view camera screenproduct detail:

7 inch monitor

7 inch ahd monitor

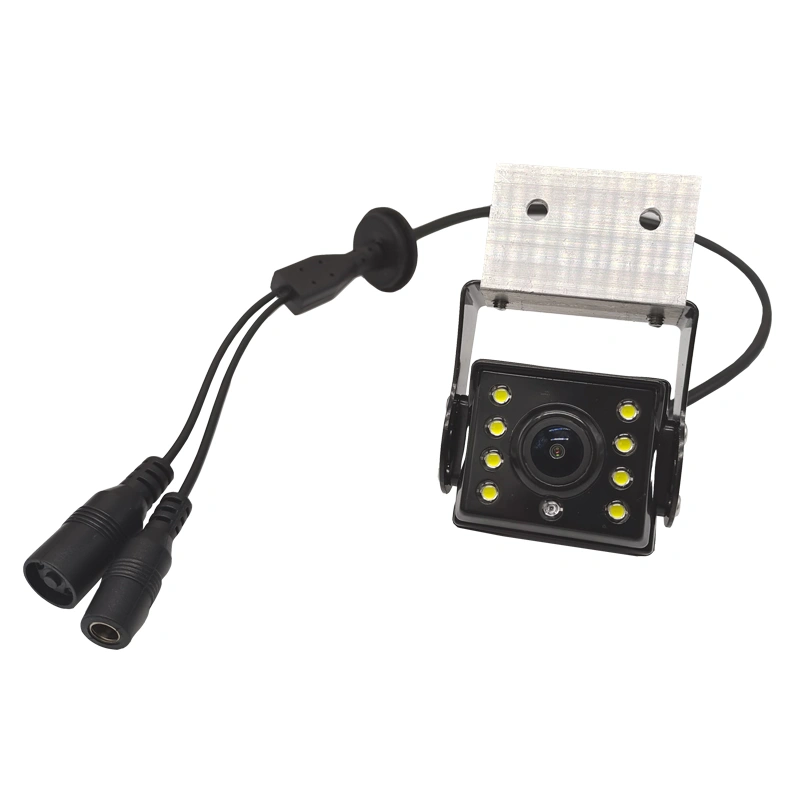

Wireless Forklift Camera System detail:

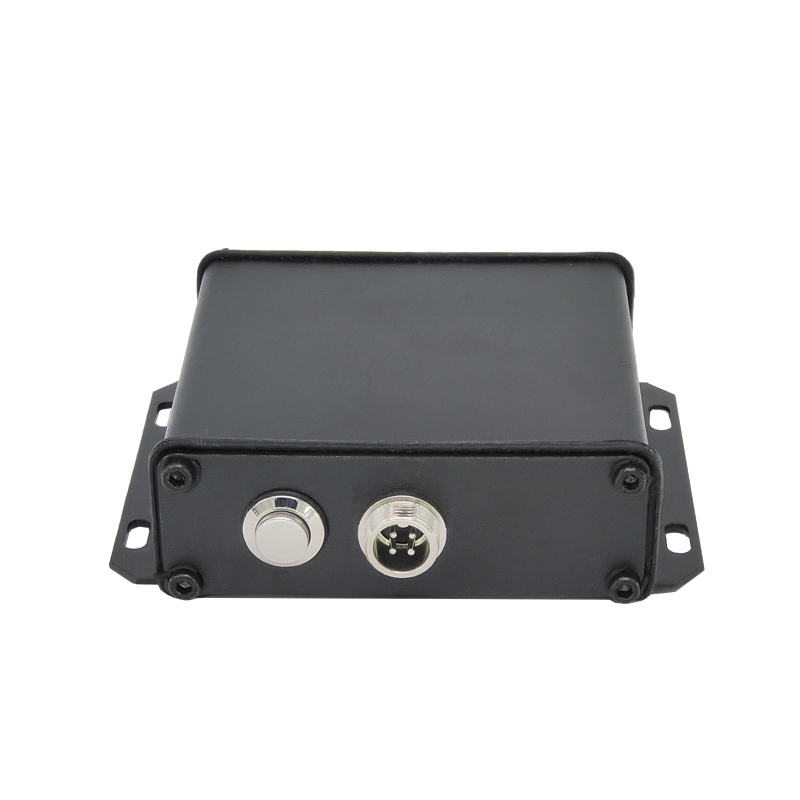

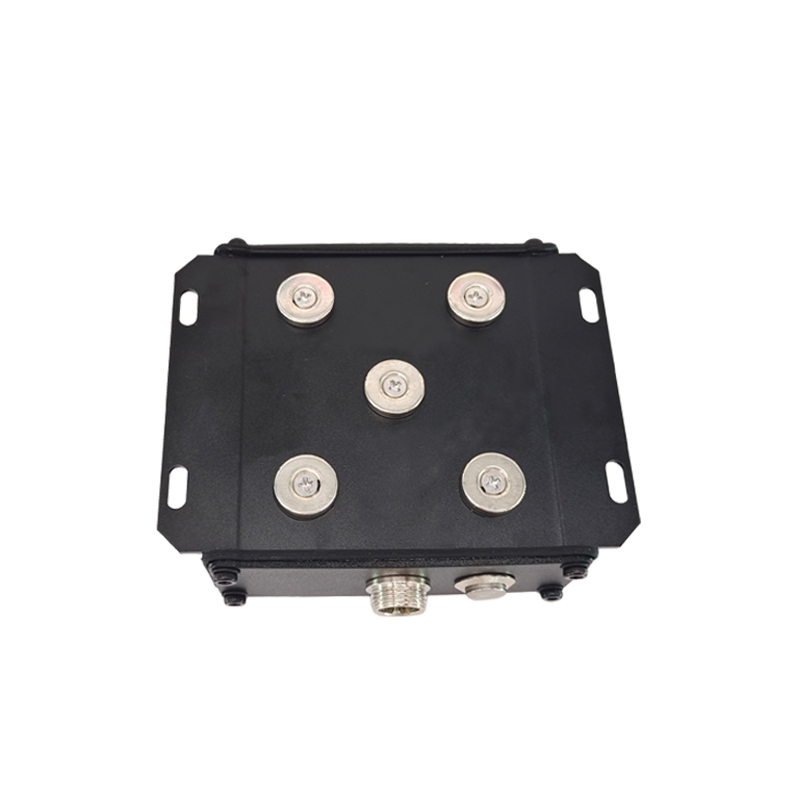

DC12v battery:

ModelSVS-B0137B
Nominal voltageDC12V
Rated Capacity2600mA/12V
Overcharging Protection Voltage12.5V ± 0.25V
Voltage Discharging Protection10.5V ± 0.25V
Charging ModeConstant current
Charging Voltage12.6V-12.9V
Charge Current0.7-1.5A
Charging Temperature0~45℃、45±85%RH
Discharging Temperature-20~60℃、45±85%RH
Storage Temperature and Humidity RangeShort-term:more than a month -20~+55℃，45±85%RH
Interim: more than three months -20~+45℃，45±85%RH
Long-term: one year or less -5~+25℃，45±85%RH
