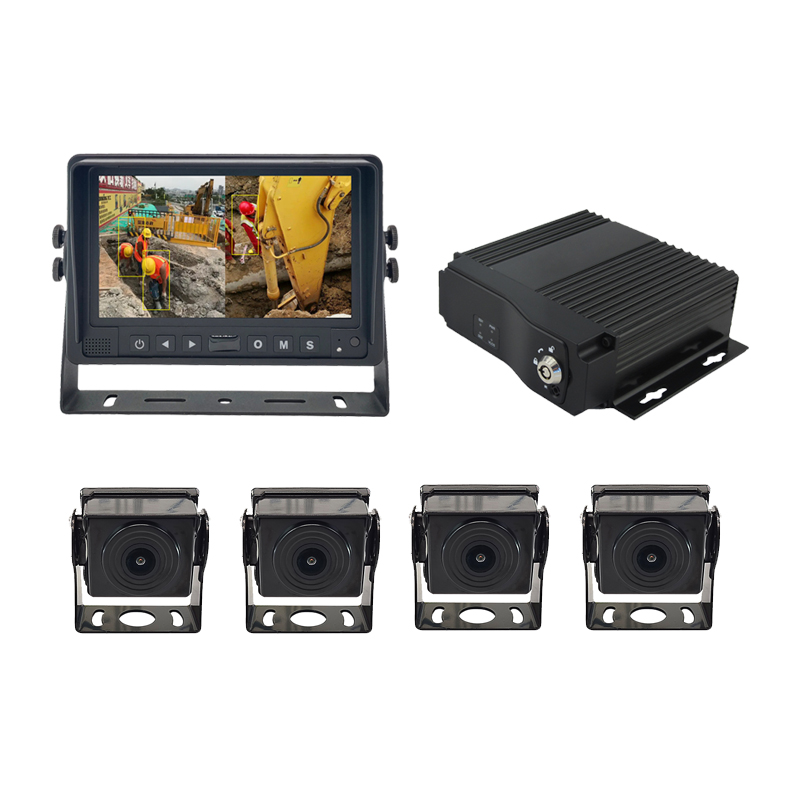

7 Inch Blind Spot Bsd Alarm 4 Channel MDVR Recording Backup Monitor Waterproof AI BSD Camera System
SVS-MDR164-M080672CH
AI BSD (Blind Spot Detection) monitoring systems enhance safety and efficiency across industries by leveraging AI vision,
Construction & Heavy Machinery.
Dump Trucks & Excavators.
AI cameras for worksite.
Durability: BSD Camera IP66-rated for dust, water.
Construction & Heavy Machinery.
Dump Trucks & Excavators.
AI cameras for worksite.
Durability: BSD Camera IP66-rated for dust, water.
Delivery
exw
Quantity
7 Inch Blind Spot Bsd Alarm 4 Channel MDVR Recording Backup Monitor Waterproof AI BSD Camera System
| Model | SVS-M0806072CH | Model | SVS-C3318-720P | |
| LCD Size | 7 inch IPS LCD | Sensor | 1/2.9"CMOS | |
| Dot pitch | 0.1506(H)×0.1432(V) | Effective Pixels | 2MP(1920*1080) | |
| Resolution | 1024（RGB)*600 | Frame Rate | H.264/H.264 ，1~30fps，Secondary H.264，1-30fps | |
| Brightness | 400cd/㎡ | Video Resolution | 1080P(1920*1080)/720P(1280*720) Optional | |
| Viewing Angle | U: 50° / D: 70°, R/L: 70° | AGC | Auto | |
| Aspect Ratio | 16:9 /4:3 | S/N | >48dB | |
| Language | Chinese, English, Japanese, Korean, Russian | White balance mode | Auto | |
| Video system | Video Input | Optional 1-4-channel video input, aviation port, 1.0VP-P, 75Ω | Distortion correction | Auto |
| Electronic shutter | Auto | |||
| Preview Function | Single-channel preview, support manual/event trigger full-screen display function | BLC | Auto | |
| Audio | Audio input | MAX support 4CH aviation interface Input | Gamma coefficient | 0.45 |
| Power and Power Consumption | Input voltage | DC：12~48V | Sync system | Inter sync |
| Power consumption | Maximum normal work: 8W, standby 0.5W | Image | original/mirror | |
| Working Environment | Temperature | -30℃ to +80℃ | Vehicle Shutoff Scale/Alarm Output | support |
| Humidity | 20% to 80% | Eight output formats | (AHD720/25/30)-(1080/25/30)-(CVBS/N/P)-(TVI720/25/30) | |
| AI Intelligence | support pedestrian and vehicle model detection function and warning alert function capable of identifying various types of pedestrians such as cyclists, electric bike riders, and pedestrians, as well as regular vehicle early warning applications | |||
| Ruler/Alarm area Settings | Support | |||
| Day and Night | Infrared night vision (IRCUT)/white light night vision optional, clear image without color difference, automatic switching between day and night modes. | |||
| Lens | 2.8MM, 3.6MM | |||
| Warning detection | pedestrian, vehicle model detection function output | |||
| AI alarm delay time | 80ms | |||
| Material | aluminum alloy | |||
| Waterproof | IP66 | |||
| Power | 12V dc +/- 10% | |||
| Working Temperatura&Humidity | -30~70°C, RH 90% MAX | |||
| Storage Temperatura&Humidity | -40~80°C,RH 90% MAX. | |||
7 Inch Blind Spot Bsd Alarm System:
4 Channel MDVR 7 Inch Blind Spot Bsd Alarm AI BSD Camera
AI BSD (Blind Spot Detection) monitoring systems enhance safety and efficiency across industries by leveraging AI vision,
- Construction & Heavy Machinery.
- Dump Trucks & Excavators.
AI cameras for worksite.
Durability: BSD Camera IP66-rated for dust, water.
Durability: BSD Camera IP66-rated for dust, water.

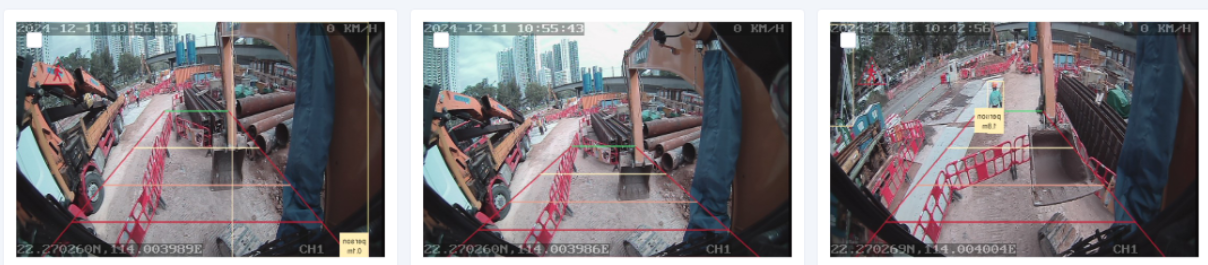

Waterproof AI BSD Camera System Application：
