Oem Best Quality 7 inch AHD Monitor Camera System for Forklift Factory Factory Price-Shivision

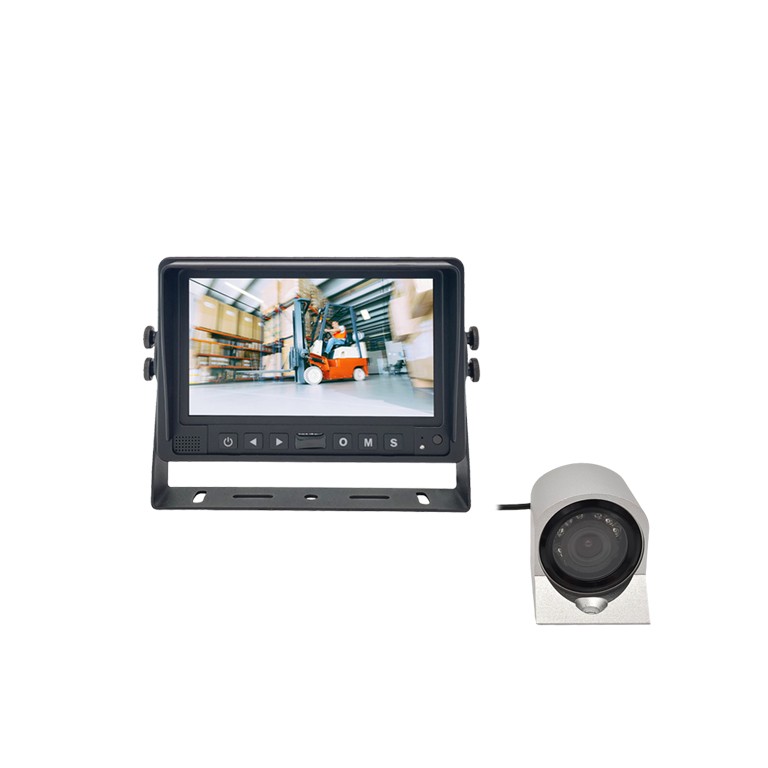

Product Name: Oem Best Quality 7 inch AHD Monitor Camera System for Forklift Factory Factory Price-Shivision

Accessories: M080607:1- Power cable,1- Center mount bracket,1- Manual,1- IR remote control,1- U-support bracket,4- Angle adjustment screws.

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

Product display

product-Shivision-img

Model	SVS-M080607	Model	SVS-C29818
LCD size	7" IPS LCD	Image Device	1/4" CMOS
Resolution	1024 (RGB) x 600	Video Resolution	PAL/NTSC
Contrast	500:1	Array Size	1280*720
Brightness	400cd/㎡	Sensing Area	3mm (H) ×3mm (V)
Viewing angle	U: 50° / D: 70°, R/L: 70°	Scan Mode	Progressive
Aspect ratio	16:9 /4:3	Sync. System	Internal
Language	Chinese, English, Japanese, Korean, Russian	Resolution	1.0MP
Dot pitch	0.1506(H)×0.1432(V)	Minimum Illumination	0 Lux
Video Input	Optional 1-4-channel video input, aviation port, 1.0VP-P, 75Ω	Microphone	Without
Preview Function	Single-channel preview, support manual/event trigger full-screen display function	Electronic Exposure	Up to 510:1
Audio input	MAX support 4CH aviation interface Input	AGC	Auto
Input voltage	DC：12~48V	BLC	Auto
Power consumption	Maximum normal work: 8W, standby 0.5W	Current Consumption	Max. 400 mA/12V
Storage Temperature	-30℃ to +80℃	Power Supply	12V
Operating Temperature	-20~+80ºC	Lens	f = 3.6mm
		Lens Angle	100°
		Waterproof	IP68
		Operating Temperature	-20°C~60°C, RH 90% MAX.
		Storage Temperature	-30°C~80°C, RH 90% MAX.
