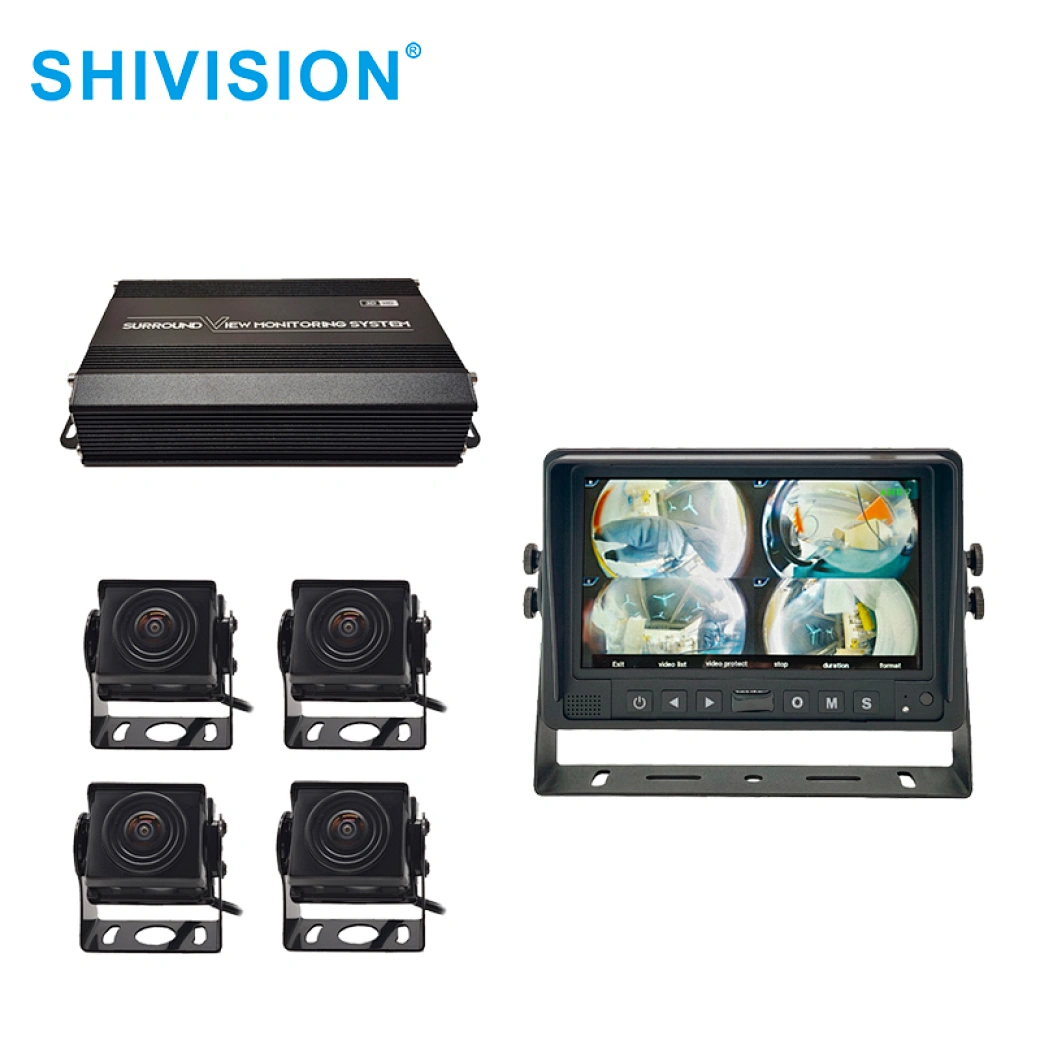

360 degree viewing camera system excavator truck OEM factory manufacture
SVS-S0403004
Delivery
FOB
minimum order
2 pieces
Supply Ability
500pieces / Month
Country of Origin
guangzhou
Stock Time
7-20Day
Quantity
360 degree viewing camera system excavator truck OEM factory manufacture
Features:
1. Four 190 degree ultra wide angle fisheye lenses.
2. Based on t507 intelligent hardware to achieve efficient,high-precision seamless integration.
3. Intelligent and 3D dynamic view switching.
4. Fisheye correction based on hardware acceleration.
5. GPU hardware acceleration engine, excellent brightness automatic balance function.
6. 3D de interlacing technology and 3D squelch Technology.
7. Video recording function based on MP4.
8. Support the use of 32G TF card memory for video recording.
9. IUse low-cost calibration peripherals and simple calibration steps.Support automatic scanning and camera calibration.
10. It supports 4-channel camera recording, with the maximum recording resolution of 3840 * 2160.
11. Intelligent power consumption management mode.
12. Vehicle specification level chipset and protection device.
Features:
1. Four 190 degree ultra wide angle fisheye lenses.
2. Based on t507 intelligent hardware to achieve efficient,high-precision seamless integration.
3. Intelligent and 3D dynamic view switching.
4. Fisheye correction based on hardware acceleration.
5. GPU hardware acceleration engine, excellent brightness automatic balance function.
6. 3D de interlacing technology and 3D squelch Technology.
7. Video recording function based on MP4.
8. Support the use of 32G TF card memory for video recording.
9. IUse low-cost calibration peripherals and simple calibration steps.Support automatic scanning and camera calibration.
10. It supports 4-channel camera recording, with the maximum recording resolution of 3840 * 2160.
11. Intelligent power consumption management mode.
12. Vehicle specification level chipset and protection device.
| Type Specification | ||
| Model | SVS-S0403004 | |
| Processor | AllWiner T2 + FPGA | |

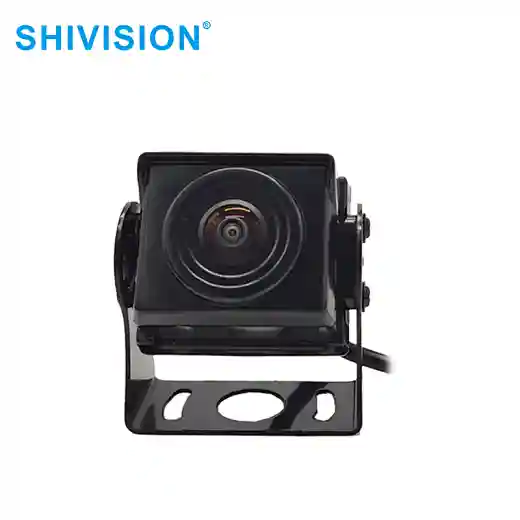

Camera | Camera Sensor | 1/3’’ COMS AR0130 |
| Resolution | 1280*720P@30FPS | |
| Interface | AHD | |
| Frame Rate | 30FPS | |
| Dynamic Range | 83.5db | |
| Video | Video Interfance | Aviation Connection |
| Input/Output Impedance | 75Ω | |
| Amplitude | Typical 1Vpp, 1.2Vpp Maximum | |
| Bandwidth | 27M | |
| Sampling Frequency | 74.25MHZ | |
| Resolution | 1280*720P@30FPS | |
| Signal Standard | AHD2.0(Next chip) | |
| SNR | 83.5DB | |
| Indicator lamp/Blinker | High Beam | Yes |
| Left/Right Turning Blinker | Yes | |
| Reversing Lamp | Yes | |
| G-Sensor | BM250E | Bosch |
| Recording | Algorithm | H.264 Baseline@L3.1 |
| Resolution | 1080P@15FPS | |
| Bitrates | 5Mbps, 3Gbyte/Hour | |
| Recoprding Media | USB Disk/TF Card | |
| Disk Capacity | TF Card | 32GB SDIO3.0/SDIO2.0 |
| USB Disk | 64GB USB2.0 | |
| Power Consumption | 4-CH DVR+SVM Mode | 490mA |
| 4-CH DVR | N/A | |
| Sleep Mode | <3mA | |

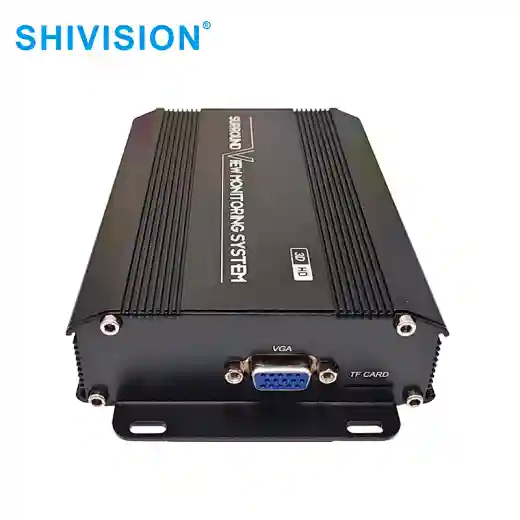

| Dimension | L*W*H | 165*140*35MM(Host Metal Box） |
| Weight | - | 300g |
| Environments | Normal Working | -30℃- +85℃ |
| Storage | -40℃- +105℃ | |
| Relative Humidity | 0-95% | |
| Voltage Tolerance | Working Voltage | 9.5V-36V |
